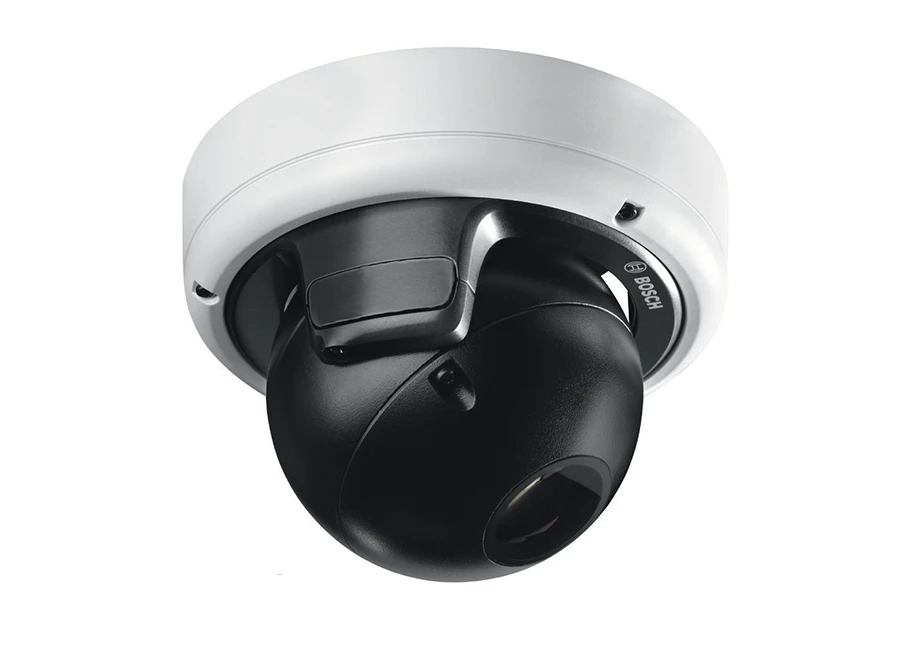

Bosch FLEXIDOME IP 7000 RD 1080P IP HD Dome Kamera
Özellikler
- High-impact, ruggedized enclosure with choice of lens
- Built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data
- Intelligent Dynamic Noise Reduction reduces bandwidth and storage requirements by up to 50%
- Auto back focus for fast installation
- Content-based scene analysis optimizes the image processing
Teknik Özellikler
| Input voltage | 24 VAC 50/60 Hz; 12 VDC; Power-over-Ethernet 48 VDC nominal |
| Current Consumption | 0.8 A | 1 A IVA (12 VDC); 0.7 A | 0.8 A IVA (24 VAC); 0.25 A | 0.3 A IVA (PoE 48 VDC) |
| Power ConsumptionHeater on | 9.6 W | 11 W IVA (12 VDC); 13.4 W | 15.8 W IVA (24 VAC); 12.2 W | 13.4 W IVA (PoE 48 VDC) |
| Power ConsumptionHeater off | 4.8 W | 6 W IVA (12 VDC); 8.4 W | 10.8 W IVA (24 VAC); 7.2 W | 8.4 W IVA (PoE 48 VDC) |
| PoE | IEEE 802.3af (802.3at Type 1) |
| Type | 1/2.7‑inch CMOS |
| Pixels | 1952 x 1092 (2.03MP) |
| Video compression | H.264 (ISO/IEC 14496-10); M- JPEG, JPEG |
| Streaming | Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI) |
| Overall IP Delay | Min. 120 ms, Max. 240 ms |
| GOP structure | IP, IBP, IBBP |
| Encoding interval | 1 to 30 (25) ips |
| 1080p HD | 1920 x 1080 |
| 960p HD 4:3 (cropped) | 1280 x 960 |
| 720p HD | 1280 x 720 |
| D1 4:3 (cropped) | 704 x 480 |
| SD upright (cropped) | 400 x 720 |
| 480p SD | Encoding: 704 x 480; Displayed: 854 x 480 |
| 432p SD | 768 x 432 |
| 288p SD | 512 x 288 |
| 240p SD | Encoding: 352 x 240; Displayed: 432 x 240 |
| 144p SD | 256 x 144 |
| Color | 0.22 lx (0.022 fc) |
| Monochrome | 0.05 lx (0.005 fc) |
| Day/Night | Color, Mono, Auto |
| White Balance | ATW (2500 to 10000K), ATWhold and manual |
| Shutter | Automatic Electronic Shutter (AES) Fixed (1/30 [1/25] to 1/15000) selectable Default shutter |
| Backlight compensation | Off, Auto |
| Contrast enhancement | On/off |
| Sharpness | Sharpness enhancement level selectable |
| Dynamic Range | 76 dB WDR (92 dB with IAE ) |
| Privacy Masking | Four independent areas, fully programmable |
| Video Motion Analysis | MOTION+ or IVA option |
| Standard | G.711, 8kHz sampling rate AAC |
| Signal-to-noise ratio | > 50 dB |
| Audio Streaming | Full duplex / half duplex |
| Analog Video out (service only) | CVBS (PAL/NTSC), 1 Vpp, 2.5 mm jack, 75 Ohm (non-protected) |
| Audio | 1 x mono line in, 1 x mono line out |
| signal line in | 12 kOhm typical, 1 Vrms max |
| signal line out | 1 Vrms at 1.5 kOhm typical, |
| Alarm | 2 inputs |
| activation voltage | +5 VDC to +40 VDC (+3.3 VDC with DC-coupled 22 kOhm pull-up resistor) |
| Relay | 1 output |
| voltage | 30 VAC or +40 VDC Maximum 0.5 A continuous, 10VA |
| Internal RAM | 10 s pre-alarm recording |
| Memory card slot | Supports SDHC and SDXC microSD cards up to 2 TB |
| Recording | Continuous recording, ring recording. alarm/events/schedule recording |
| Unit Configuration | Via web browser or Configuration Manager |
| Software update | Remote programmable |
Bosch FLEXIDOME IP 7000 RD 1080P IP HD Dome Kamera PDF Dosyası531.34 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
