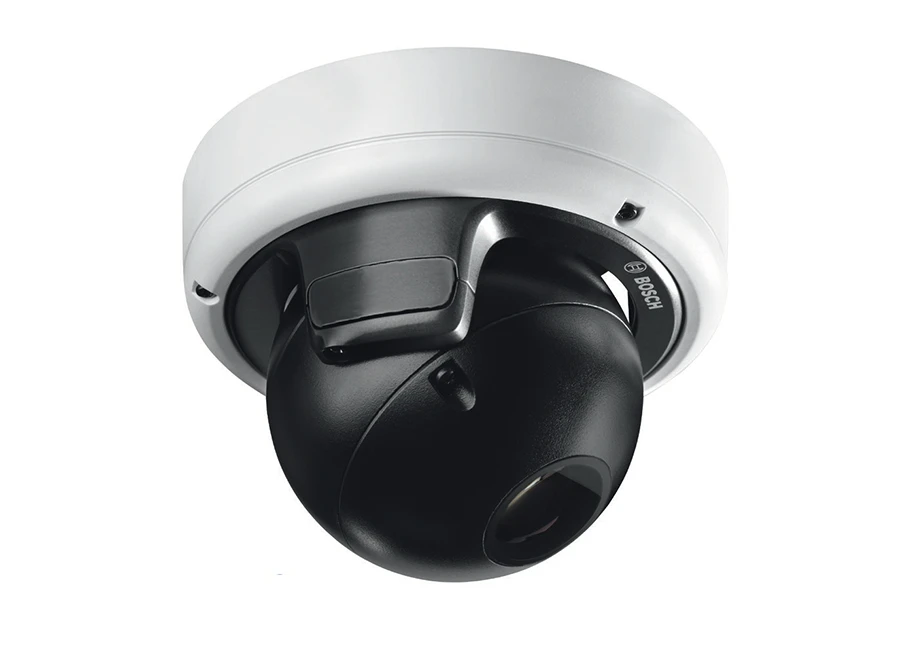

Bosch FLEXIDOME IP dynamic 7000 RD 1080P IP HD Dome Kamera
Özellikler
- High Dynamic Range to see bright and dark details simultaneously
- High-impact, ruggedized enclosure with choice of lens
- Built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data
- Intelligent Dynamic Noise Reduction reduces bandwidth and storage requirements by up to 50%
- Auto back focus for fast installation
Teknik Özellikler
| Power Supply | 24 VAC 50/60 Hz 12 VDC Power-over-Ethernet 48 VDC nominal |
| Current Consumption | 1 A (12 VDC) 0.8 A (24 VAC) 0.3 A (PoE 48 VDC) |
| Power Consumption | 12 W |
| PoE | IEEE 802.3af (802.3at Type 1) |
| Type | 1/3‑inch CMOS HD |
| Pixels | 2048 x 1536 (3MP) |
| Video compression | H.264 (ISO/IEC 14496-10); M- JPEG, JPEG |
| Streaming | Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI) |
| Overall IP Delay | Min. 120 ms, Max. 240 ms |
| GOP structure | IP, IBP, IBBP |
| Encoding interval | 1 to 30 (25) ips |
| 1080p HD | 1920 x 1080 |
| 960p HD 4:3 (cropped) | 1280 x 960 |
| 720p HD | 1280 x 720 |
| D1 4:3 (cropped) | 704 x 480 |
| SD upright (cropped) | 400 x 720 |
| 480p SD | Encoding: 704 x 480; Displayed: 854 x 480 |
| 432p SD | 768 x 432 |
| 288p SD | 512 x 288 |
| 240p SD | Encoding: 352 x 240; Displayed: 432 x 240 |
| 144p SD | 256 x 144 |
| Color | 0.25 lx (0.025 fc) |
| Monochrome | 0.08 lx (0.008 fc) |
| Day/Night | Color, Monochrome, Auto |
| White Balance | ATW (2500 to 10000K), ATWhold and manual Indoor and Outdoor ATW |
| Shutter | Automatic Electronic Shutter (AES) Fixed (1/30 [1/25] to 1/15000) selectable Default shutter |
| Backlight compensation | Off/Auto/IAE |
| Wide dynamic range | On/off |
| Noise reduction | Intelligent Dynamic Noise Reduction (IDNR) with separate temporal and spatial adjustments |
| Contrast enhancement | On/off |
| Sharpness | Sharpness enhancement level selectable |
| Dynamic Range | 90 dB HDR 106 dB HDR (with IAE) |
| Privacy Masking | Four independent areas, fully programmable |
| Video Motion Analysis | Intelligent Video Analysis |
| Standard | AAC G.711, 8kHz sampling rate L16, 16kHz sampling rate |
| Signal-to-noise ratio | > 50 dB |
| Audio Streaming | Full duplex / half duplex |
| Analog Video out (service only) | CVBS (PAL/NTSC), 1 Vpp, 2.5 mm jack, 75 Ohm (non-protected) |
| Audio | 1 x mono line in, 1 x mono line out |
| signal line in | 12 kOhm typical, 1 Vrms max |
| signal line out | 1 Vrms at 1.5 kOhm typical, |
| Alarm | 2 inputs |
| activation voltage | +5 VDC to +40 VDC (+3.3 VDC with DC-coupled 22 kOhm pull-up resistor) |
| Relay | 1 output |
| voltage | 30 VAC or +40 VDC max. Maximum 0.5 A continuous, 10VA |
| Internal RAM | 10 s pre-alarm recording |
| Memory card slot | Supports SDHC and SDXC microSD cards |
| Recording | Continuous recording, ring recording. alarm/events/schedule recording |
| Unit Configuration | Via web browser or Configuration Manager |
| Software update | Remote programmable |
Bosch FLEXIDOME IP dynamic 7000 RD 1080P IP HD Dome Kamera PDF Dosyası514.77 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
