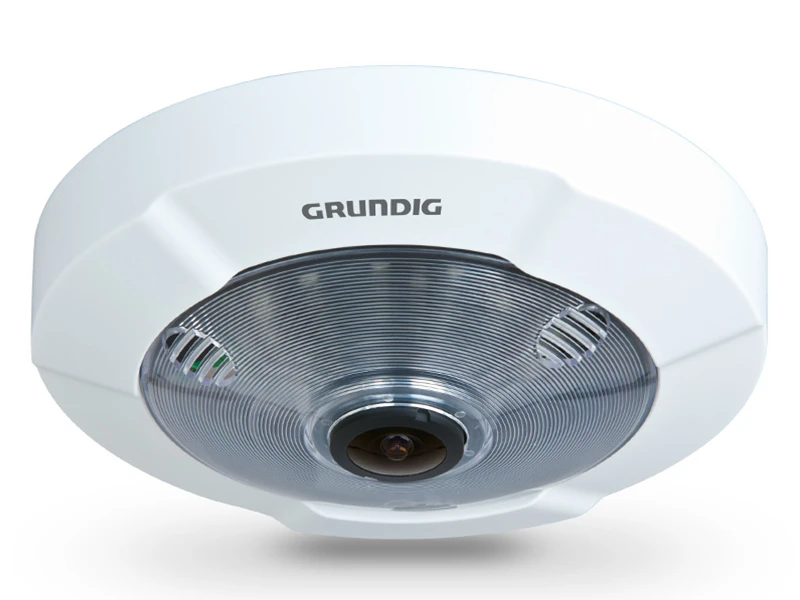

Grundig GCI M0566F Panoramik IP HD Kamera

Özellikler

• Image Sensor: 1/1.8" Sony Progressive Scan CMOS, 6 megapixel
• Pixels - Total: 3072 x 2048
• Digital Signal Processor (DSP): Ambarella S2
• Sensitivity Colour: 0.04 lux @ F2.8 (IRE30)
• Sensitivity B&W: 0.002 lux @ F2.8 (IRE30)
• Col/B&W: On/Off/SMART, IR-cut filter removable (ICR)
• Lens: Stereo Projection 1/2.5" Panomorph
• Lens Focal Length: 1.05 mm
• Viewing Angle: 180° @ Full Resolution
• Lens Drive Type: Fixed Iris
• Digital Zoom: Yes
• IR LED: 6 pieces
• Max. IR Distance: 5m
• Wavelength: 850nm
• Shutter Speed: 1 ~ 1/10.000 sec
• PTZ Control: digital Pan/Tilt/Zoom
• WDR: Off/Low/Middle/High
• BLC Back Light: On/Off
• White Balance: ATW, AWB, Manual
• Privacy zones: 5 zones, rectangle
• Schedule: Daily, Weekly, Start Time and Duration
• Reverse: Normal, Flip, Mirror, Vertical Mode (90°clockwise,90° counter clockwise), 180°
• Digital Noise Reduction (DNR): 2DNR: ON/OFF, 3DNR/ColorNR: Off/Low/Mid/High
• Camera ID: 20 character
• D&N Switching Mode: Light Sensor (Auto with LED), Light ON, Light OFF, SMART, Auto, Night, Day
• Alarm Event: Enable Alarm Output, Send message by FTP or/and Email, Upload image by FTP or/and Email, Send HTTP notification, IR CUT filter switch On/Off, Record to Micro SD Card
• Access protection: By log-in and Password, IP filter, IEEE802.1x
• IR Light Compensation: On, Off
• Video Compression: H.264 (MPEG-4Part 10/AVC), MJPEG
• ONVIF compliant: Profile S
• ImmerVison Enables: RPL: B5SST
• Video Streaming: Quad stream: 4xH.264 or 3xH.264+MJPEG Triple: 3xH.264 or 2xH.264+MJPEG Dual: 2xH.264 or H.264+MJPEG Single: H.264 or MJPEG
• Video Resolution: Backend (SW) Dewarp: 3072x2048,1920x1080, 1280x1024, 1280x720, 1024x768, 800x600, 720x576, 640x480, 352x288, 320x240 Edge
• Dewarp: 2048x2048, 2048x1536,1920x1080, 1600x1200,1408x1408, 960x960, 960x720, 960x544
• Frame Rate (Max @ Resolution): 25fps @ 6MP, 25fps @ 4MP, 25fps @ 3MP, 50fps @ 2MP, 50fps @ 1.3MP, etc.
• Streaming Method: Unicast, Multicast
• Fisheye settings:360°, 180°, Back- and Front End Dewarping
• Frontend Dewarp Function: Yes, 2 Streams(4MP&2MP)
• Back End Dewarp Function: Yes, 6MP, up to 4 Streams
• Audio Compression: G.726, G.711
• Audio Inputs: 1x 3.5mm jack (Line)
• Audio Outputs: 1x 3.5mm jack (Line)
• Alarm Inputs: 1 (5V, 10KΩ)
• Alarm Outputs: 1 (max.300VDC/AC, max.130mA)
• Web Browser: MS Internet Explorer 6.0 (or higher), Firefox, Google Chrome, Safari
• Number of Clients: Up to 20 simultaneously
• Network Protocol: IPv4, IPv6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, 802.1X IEEE, SNMP, QOS, ARP
• SD memory: Supports up to 64 GB capacity of micro SD/SDHC/SDXC memory
• NAS Recording: Yes
• Recording Types: On Micro SD/SDHC/SDXC CARD Single Image Recording (JPEG) Video(AVI, LCK)
• LED Indicator: Power, link, active
• Input/Output sockets: Micro SD card slot, 2 Pin Power Screw block, RJ45 Network connector, All in one cable: Power DC connector, 4 Pin Alarm I/O, Audio I/O 2  mini jack plug
• Firmware Upgrade: Firmware upgrade by Web Browser
• Configuration: Upload & Download configuration on remote PC
• Multi Language Webpage: English, German, French, Italian, Russian, Turkish
• Mount: Indoor Ceiling & Wall
• Regulation: CE, RoHS Compliant
• Alarm Trigger: Alarm Input, Motion Detection, Network Failure detection, Tampering Alarm, Time lapse, Manual Trigger
• Video Text Overlay: Text string (20 character), Subtitel (5 lines @ 16 character)
• Operating Humidity: 10% ~ 90%, non-condensing
• Operating Temperature: -10°C ~ +50°C
• Supply Voltage: 24 Vac / 12 Vdc / PoE (IEEE 802.3af)
• Dimensions w*h*d: Ø149 x 46 mm mm
