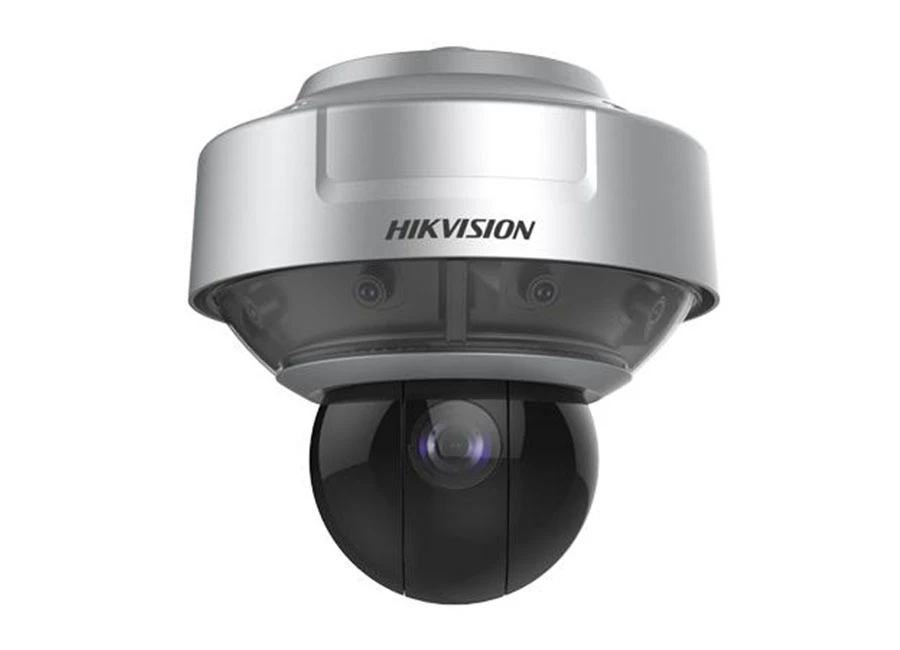

Hikvision DS 2DP1636ZX D/236 Panoramik IP Kamera
Özellikler
Panoramic Camera
- Four 1/1.8" progressive scan CMOS
- Up to 4096×1800 resolution @30fps
- Horizontal field of view: 180°, vertical field of view: 80°
- Min. illumination: Color: 0.005 Lux@(F2.0, AGC ON), B/W: 0.0005 Lux@(F2.0, AGC ON)
Tracking PTZ Camera
- 1/1.8" progressive scan CMOS
- Up to 1920×1080 resolution @30fps
- Pan and tilt range: 360° (Pan), -15° to 90° (Tilt)
- Min. illumination: Color: 0.002 Lux@(F1.5, AGC ON), B/W: 0.0002 Lux@(F1.5, AGC ON), 0 Lux with IR
- 36× Optical Zoom, 16× Digital Zoom
- IR distance: 200m
Teknik Özellikler
| Panoramic Camera | |
| Image Sensor: | Four 1/1.8" Progressive Scan CMOS |
| Max. Image Resolution: | 4096 × 1800 |
| Min. Illumination: | 0.005 Lux@(F2.0, AGC ON), B/W: 0.0005 Lux@(F2.0, AGC ON) |
| Lens: | 5.0mm/ F2.0 |
| Angle of View: | Horizontal angle of view: 180°, Vertical angle of view: 80° |
| Main Stream: | 20:09 |
| 50Hz: 25fps (4096×1800, 3840×1680, 2720×1192) | |
| 60Hz: 30fps (4096×1800, 3840×1680, 2720×1192) | |
| 20:06 | |
| 50Hz: 25fps (4096×1200, 3840×1080, 2720×800) | |
| 60Hz: 30fps (4096×1200, 3840×1080, 2720×800) | |
| Sub Stream: | 20:09 |
| 50Hz: 25fps (704×320, 512×232) | |
| 60Hz: 30fps (704×320, 512×232) | |
| 20:06 | |
| 50Hz: 25fps (704×200) | |
| 60Hz: 30fps (704×200) | |
| Third Stream: | 20:09 |
| 50Hz: 25fps (2048×896, 1280×560, 704×320, 512×232) | |
| 60Hz: 30fps (2048×896, 1280×560, 704×320, 512×232) | |
| 20:06 | |
| 50Hz: 25fps (2048×600, 1280×376, 704×200) | |
| 60Hz: 30fps (2048×600, 1280×376, 704×200) | |
| Image Compression: | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264/MJPEG | |
| Third Stream: H.265/H.264 | |
| HLC: | Support |
| Day& Night: | ICR |
| Smart Image Enhancement: | Digital WDR, 3D DNR, HLC |
| Tracking PTZ Camera | |
| Image Sensor: | 1/1.8’’ Progressive Scan CMOS |
| Max. Image Resolution: | 1920 × 1080 |
| Focal Length: | 5.6 to 208mm, 36× optical zoom |
| Zoom Speed: | Approx.6.6s (Optical Wide-Tele) |
| Angle of View: | 62.5° to 1.9° (Wide-Tele) |
| Minimum Illumination: | Color: 0.002 Lux@(F1.5, AGC ON), B/W: 0.0002 Lux@(F1.5, AGC ON), 0 Lux with IR |
| White Balance: | Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC: | Support |
| BLC: | On/Off |
| HLC: | Support |
| Day & Night: | IR Cut Filter |
| Optical Defog: | Support |
| ROI encoding: | Support 24 areas with adjustable levels |
| Main Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream: | 50Hz: 25fps (704×576, 640×480, 352×288) |
| 60Hz: 30fps (704×480, 640×480, 352×240) | |
| Third Stream: | 50Hz: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288) |
| 60Hz: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480, 352×240) | |
| Image Compression: | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264/MJPEG | |
| Third Stream: H.265/H.264 | |
| WDR: | Ture WDR |
| Scheduled Task: | Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan/ Dome Reboot/ Dome Adjust/ Aux Output |
| Pan and Tilt | |
| Pan Range: | 360° endless |
| Pan Speed: | Pan Manual Speed: 0.1°/s to 210°/s (Configurable), Pan Preset Speed: 240°/s |
| Tilt Range: | -15°~ 90° (Auto flip) |
| Tilt Speed: | Tilt Manual Speed: 0.1°/s to 150°/s (Configurable), Tilt Preset Speed: 200°/s |
| Number of Preset: | 300 |
| Patrol: | 8 patrols, up to 32 presets per patrol |
| Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern |
| Park Action: | Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| Power-off memory: | Support |
| System Function | |
| IR: | PTZ camera: IR distance: 200m; IR brightness and angle are adjustable. |
| Calibration Mode: | Manual/ Auto |
| PTZ Linkage: | Support |
| One-touch Link: | Support |
| Tracking mode: | Manual/ Auto/ Mix |
| Number of Targets: | Up to 30 targets can be detected at the same time |
| Multiple Target Tracking: | Support |
| Smart Detection: | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Alarm | |
| Alarm I/O: | 7.2 |
| Alarm Action: | Preset / Patrol / Pattern / SD card recording/ Aux output/ E-map on Client/ Send Email/ Upload to FTP |
| Input & Output | |
| Audio Input: | 1-ch audio input |
| Audio Output: | 1-ch audio output |
| Network | |
| Audio compression: | G.711ulaw/G.711alaw/G.722/G.726/MP2L2/PCM |
| Protocol: | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP, PPPoE |
| Application programming: | Open-ended, support ONVIF, support HIKVISION SDK and Third-Party Management Platform |
| System Integration | |
| Menu: | English |
| User/Host Level: | Up to 32 users,3 Levels: Administrator, Operator and User |
| Security Measures: | User authentication (ID and PW); Host authentication (MAC address); IP address filtering |
| Web Browser: | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
| Simultaneous Live View: | Up to 20 users |
| Fiber Cable: | 1 10M/100M FC interface, TX1310 / RX1550nm wavelength, 20 km transmission distance |
| Ethernet: | 1 RJ45 100M/1000M Ethernet interface |
| RS485: | Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Onboard Storage: | Built-in Micro SD/SDHC /SDXC card slot, up to 128GB, manual/alarm recording |
Hikvision DS 2DP1636ZX D/236 Panoramik IP Kamera Pdf Dosyası689.33 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
