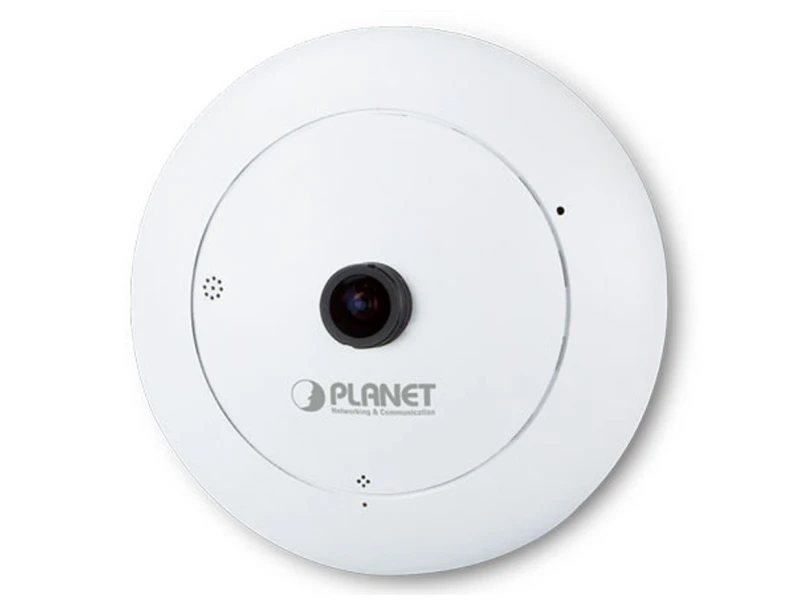

Planet ICA 8200 Panoramik IP HD Kamera
Teknik Özellikler
| Camera |
| Image Device |
| 1/2.5" 2 mega progressive scan CMOS image sensor |
| Lens |
| FOV=180±5°(D/H/V), F=2.0, f=1.25mm |
| Mechanical IR-cut Filter |
| Angle of view: 360 degrees |
| Min Illumination |
| 1.9 lux @ F2.0, without IRE (Color) |
| 0.1 lux @ F2.0, without IRE (B/W) |
| Effective Pixels |
| 1440 x 1440 pixels |
| Video |
| Video Encoder |
| H.264 / M-JPEG / MPEG-4 |
| Video Resolution |
| H.264: |
| 1440 x 1440 / 1600 x 1200 / 1280 x 1024 / 800 x 600 / 640 x 480 |
| M-JPEG: |
| 1440 x 1440 / 1600 x 1200 / 1280 x 1024 / 800 x 600 / 640 x 480 |
| MPEG4: |
| 1440 x 1440 / 1600 x 1200 / 1280 x 1024 / 800 x 600 / 640 x 480 |
| Frame Rate |
| Up to 15fps for 1440 x 1440 resolutions |
| Image Setting |
| Day / Night mode |
| 2D noise reduction |
| WDR |
| Brightness, Saturation, Contrast, Sharpness |
| Rotate/Mirror |
| Text, time and date overlay |
| Streaming |
| Streaming over UDP, TCP, or HTTP |
| M-JPEG streaming over HTTP (server push) |
| Controllable frame rate and bandwidth |
| Constant and variable bit rate (M-JPEG / H.264) |
| Simultaneous multi-profile streaming |
| ROI |
| Rate Control |
| CBR (Constant Bit Rate) |
| VBR (Variable Bit Rate) |
| UI Layout |
| Source view (1O) |
| 180° Single broad view (1P wall) |
| 360° Panoramic view (1P ceiling) |
| 360° Quad view (4R) |
| 360° Double broad view (2P) |
| 180° Triple view (1P2R) |
| 360° Triple view (1P2R) |
| Triple with Source view (102R) |
| Quad with Source view (103R) |
| Audio |
| Audio Streaming |
| 2-way audio |
| Audio Compression |
| RTSP: G.711 64kbps |
| Microphone |
| Built-in microphone |
| Speaker |
| Built-in speaker |
| Network and Configuration |
| Network Standard |
| IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX |
| Network Protocol |
| HTTP, HTTPS, TCP/ IP, IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP, RTSP, RTP, UPnP, ONVIF (Profile S), Multicast |
| Security |
| Password Protection, Https encryption, User accesslog |
| Users |
| Depending on streaming data rate used |
| System Integration |
| Application Programming Interface |
| Open API for software integration |
| ONVIF |
| Alarm Triggers |
| Intelligent video motion detection |
| Alarm Events |
| File upload via FTP, e-mail or Micro SD card |
| Notification via e-mail |
| Environment |
| Power Requirements |
| 12V DC, 2A |
| IEEE 802.3af Power over Ethernet Class 3 |
| Power Consumption |
| Max. 6W |
| Operating Temperature |
| 0 ~ 50 degrees C |
| Operating Humidity |
| 20 ~ 80% (non-condensing) |
| Weight |
| 324g |
| Dimensions |
| 194 x 49mm |
| Emission |
| CE, FCC |
| Connectors |
| 10/100Mbps Ethernet, RJ-45 |
| DC power jack |
| Terminal block for 1 alarm input and 1 output |
| Audio in |
| Audio out |
| Micro SD/SDHC card (max. 32GB, Class 6) |
| Factory default reset button |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Ses : Var
