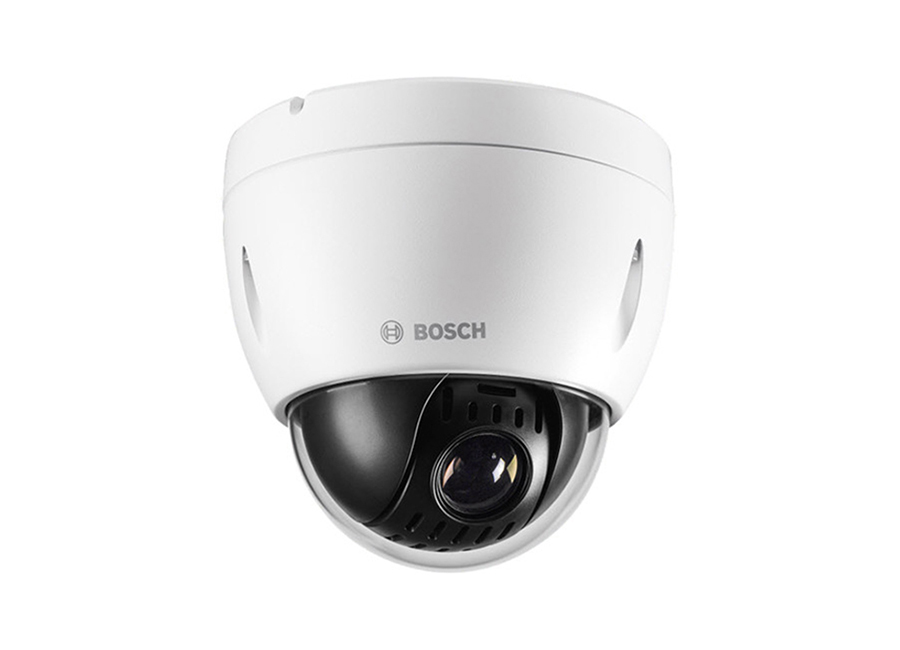

Bosch AUTODOME IP 4000 HD 720P IP HD Speed Dome Kamera
Özellikler
- Perfect combination of style and technology for indoor installations that require high-quality imaging in a compact and aesthetic dome housing
- Choice of HD resolution (720p25/30 or 1080p25/30)
- Integrated 12x optical zoom with high-end imaging platform for monitoring details under typical indoor lighting conditions
- Simple installation with flexible mounting options (in-ceiling or surface mounting)
- Full ONVIF Profile S and third party software support for easy integration with Video Management Systems (VMS)
Teknik Özellikler
| Imager | 1/2.8" progressive scan CMOS |
| Total sensor pixels | 2.48M pixels |
| Effective pixels | 1080p: 1984 (H) x 1105 (V) (approximately 2.43M pixels)720p: 1344 (H) x 745 (V) |
| Lens Focal Length | 12x Zoom5.1 mm - 61.2 mm (F 1.6 - F 3.0) |
| Field of View (FOV) | 4.6° - 51.3° |
| Focus | Automatic with manual override |
| Iris | Automatic |
| Digital Zoom | 16x |
| Sensitivity / Minimum Illumination (typical) | 30 IRE , 50 IRE |
| SensUp off | 0.17 lux , 0.3 lux |
| SensUp on (1/7.5) | 0.04 lux , 0.07 lux |
| SensUp off | 0.039 lux , 0.07 lux |
| SensUp on (1/7.5) | 0.009 lux , 0.016 lux |
| WDR | 76dB (DWDR) |
| Signal-to-noise Ratio (SNR) | >50dB (AGC off) |
| Noise Reduction | Intelligent Dynamic Noise Reduction |
| Backlight Compensation (BLC) | On/Off |
| White Balance | Standard Auto, Sodium Vapor Auto, Basic Auto, Manual, Hold, Dominant Color Auto |
| Day/Night | Mechanical switchable IR filter (Auto/On/off) Monochrome |
| Pan/Tilt Modes | Normal: 0.1°/s - 120°/sTurbo: Pan: 0.1°/s - 160°/s; Tilt: 0.1°/s - 120°/s |
| Pre-position Speed | Pan: 160°/sTilt: 120°/s |
| Pan Range | 360° continuous |
| Tilt Range | ° to ±90° |
| Preset Accuracy | ± 0.2° typ. |
| Presets | 256 |
| Tours | Two (2) types of tours:• Recorded tours – two (2), maximum total duration 15 minutes (depending on the amount of commands sent during recording) • Preset tour – one (1) consecutive, one (1) custom |
| Input Voltage | 24 VAC and POE+ |
| Power Consumption | 24 VAC: 12WPOE+: 12W |
| Video compression | H.264 (ISO/IEC 14496-10)M‑JPEG |
| Streaming Capability | Quad Stream (2x H.264, 1x MJPEG, 1x i-Frame only) |
| Frame Rate | 1080P (1 - 25/30fps)720P (1 - 25/30fps) |
| When the option in field “Property” for Stream 1 is: | The available options in field “Property” for Stream 2 are: |
| H.264 MP SD | - H.264 MP SD |
| H.264 MP 720p fixed | - H.264 MP SD - H.264 MP 720p fixed - H.264 MP 400x720 upright (cropped) - H.264 MP D1 4:3 (cropped) - H.264 MP 1280x960 (cropped) - H.264 MP 640x480 |
| H.264 MP 1080p fixed | - Copy Stream 1 - H.264 MP SD - H.264 MP 720p8/10 fixed - H.264 MP 1080p4/5 fixed - H.264 MP 400x720 upright (cropped) - H.264 MP D1 4:3 (cropped) - H.264 MP 640x480 |
| H.264 MP 720p50/60 fixed | - Copy Stream 1 - H.264 MP SD - H.264 MP 720p6/7 fixed - H.264 MP 400x720 upright (cropped) - H.264 MP D1 4:3 (cropped) - H.264 MP 640x480 |
| Non-recording profiles | Two (2) streams, I-frame only Options are:- HD Image Optimized- HD Balanced- HD Bit Rate Optimized- SD Image Optimized- SD Balanced- SD Bit Rate Optimized- DSL Optimized- 3G Optimized |
| Resolution | Models NEZ-4112-xxxW4 , Models NEZ-4212-xxxW4 |
| 720P (1280×720)D1 (704×576/704×480) | 1080P (1920×1080)720P (1280×720)D1 (704×576/704×480) |
Bosch AUTODOME IP 4000 HD 720P IP HD Speed Dome Kamera PDF Dosyası365.26 KB
Teknik Kısa
Çözünürlük : 1MP (720P)
