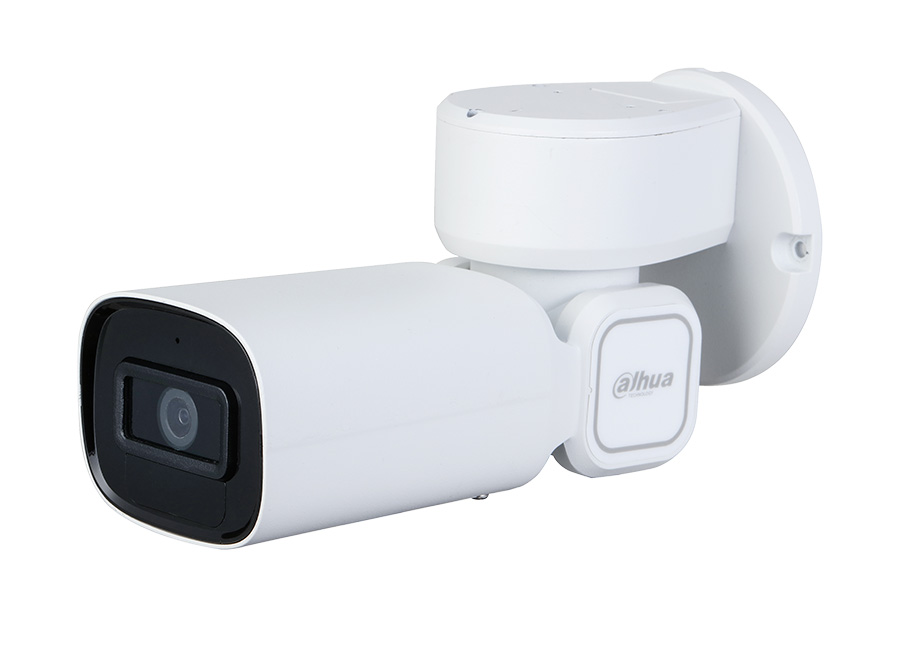

Dahua PTZ1C203UE GN IP IR PTZ Kamera

Özellikler

1/2.8” 2Megapixel STARVIS™ CMOS
Powerful 3x optical zoom
Starlight technology
Max. 25/30fps@1080P
IVS
WDR
H.265 Encoding
Support PoE
IR distance up to 20m
IP66

Teknik Özellikler

Camera
Image Sensor	1/2.8" STARVIS™ CMOS
Max. Resolution	2MP
Effective Pixels	1920 (H) × 1080 (V)
ROM	128MB
RAM	256MB
Electronic Shutter Speed	1/3–1/30000s
Minimum Illumination	Color: 0.005Lux@F1.8
	B/W: 0.0005Lux@F1.8
	0Lux (IR light on)
IR Distance	20m (65.6ft)
IR On/Off Control	Zoom Prio/Manual/SmartIR
IR LED Number	1
Lens
Focal Length	2.7mm–8.1mm
Aperture	F1.8~F2.7
Field of View	H: 46.43°–106.79°
	V: 25.91°–57.88°
Optical Zoom	3x
Focus Control	Auto/Semi-Auto/Manual
Close Focus Distance	0.8m–1.7m
Iris Control	Fixed Iris
DORI Distance	Detect	Observe	Recognize	Identify
	101.4m (332.68 ft)	40.6m (133.20 ft)	20.3m (66.60 ft)	10.1m (33.14 ft)
PTZ
Pan/Tilt Range	Pan: 0°–180°; Tilt: -5°–55°
Manual Control Speed	Pan: 6°/s; Tilt: 3°/s
Intelligence
IVS	Tripwire; Intrusion; Object Abandoned/Missing
Advanced Intelligence	Heat Map; Face Detection
Video
Video Compression	H.265; H.264BaselineProfile; H.264MainProfile; H.264HighProfile; MJPEG; H.265 +; H.264+
Streaming Capability	3 Streams
Resolution	1080P (1920×1080); 1.3M (1280×960); 720P (1280×720); D1 (704×576); CIF (352×288)
Video Frame Rate	Main Stream:
	1080P/1.3M/720P(1–25/30fps)
	Sub Stream 1:
	D1/CIF(1–25/30fps)
	Sub Stream 2:
	720P/D1/CIF(1–25/30fps)
Bit Rate Control	Variable Bit Rate/Constant Bit Rate
Video Bit Rate	H.264: 216Kbps–8192Kbps
	H.265: 108Kbps–8192Kbps
Day/Night	ICR
BLC	Support
WDR	120dB
HLC	Support
White Balance	Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp
Gain Control	Auto/Manual
Noise Reduction	2D/3D
Motion Detection	Support
Region of Interest (RoI)	Support
Electronic Image Stabilization	Support
Defog	Electronic Defog
Digital Zoom	16x
Audio
Audio Compression	G.711A; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729
Audio In	1
Audio Out	1
Network
Ethernet Port	1 RJ-45 Port 10/100Base-T
Network Protocol	IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE
Interoperability	ONVIF; CGI
Streaming Method	Unicast / Multicast
User/Host	20 (Total bandwidth 48M)
Edge Storage	FTP; Micro SD card (256G); P2P
Browser	IE7 and newer versions
	Chrome 42 and older versions
	Firefox 52 and older versions
	Safari
Management Software	Smart player
	Configtool
	SMART PSS
	DMSS
	DSS
Certifications
Certifications	CE: EN55032/EN55024/EN50130-4
	FCC: Part15 subpartB,ANSI C63.4- 2014
Electrical
Power Supply	DC12V/1.5A±10%
	POE (802.3af)
Power Consumption	7W
	11W (PTZ, IR light)
Environmental
Operating Conditions	–30°C to +60°C (–22°F to 140°F)
Operating Humidity	≤95% RH
Ingress Protection	IP66; TVS 4000V lightning protection; surge protection
Construction
Housing Material	Aluminium alloy ADC12
Dimensions	Wall mounted: 195.3mm×90mm×102.7mm (7.69""×3.54""×4.04"")
	Ceiling mounted: 190.8mm×90mm×112.2mm (7.51""×3.54""×4.12"")
Weight	Net Weight: 0.9 kg (1.98 lb);
	Gross Weight: 1.2 kg (2.65 lb)
