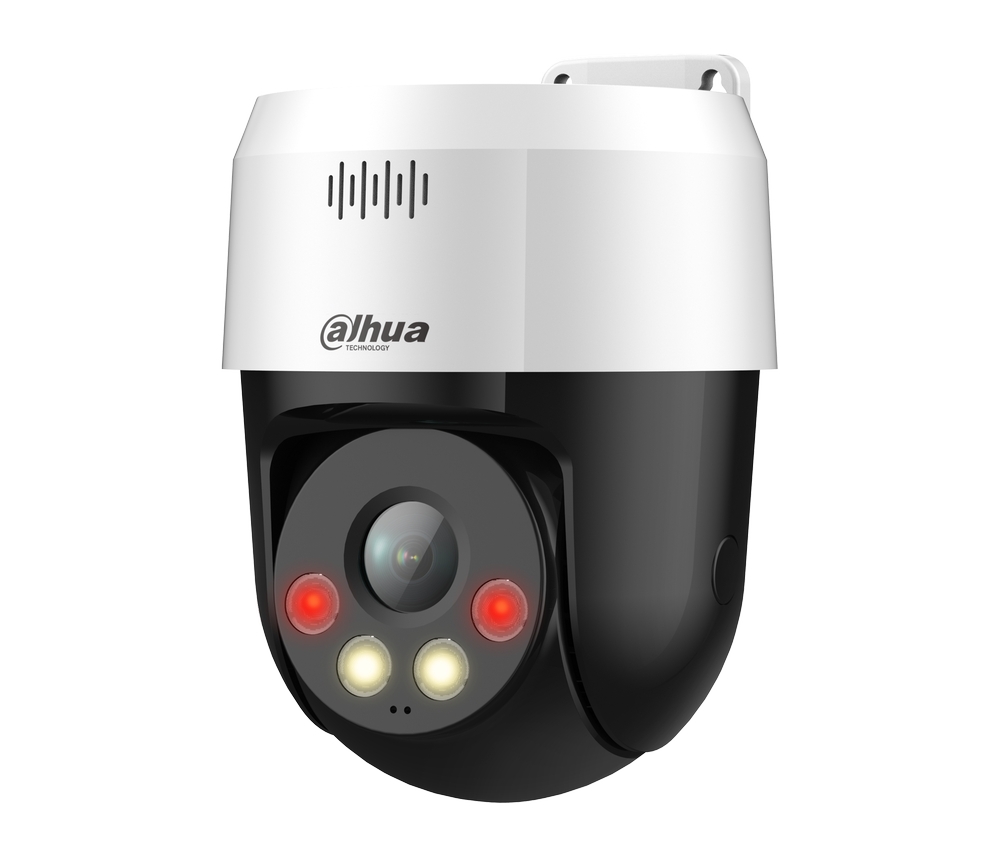

Dahua SD2A500HB-GN-A-PV-S2 IP PT Kamera

Özellikler

5MP Full-color Network PT Camera
1/2.8" 5Megapixel STARVIS™ CMOS.
Max. 20 fps@5MP.
Human detection.
Tripwire, intrusion.
H.265 encoding.
PoE.
Two-way talk.
Sound and light alarm.
IR and white light, three night view modes.
IP66.

Teknik Özellikler

Camera
Image Sensor	1/2.8" CMOS
Pixel	5MP
Max. Resolution	2560 (H) × 1920 (V)
ROM	128 MB
RAM	128 MB
Electronic Shutter Speed	1/3 s–1/100,000 s
Scanning System	Progressive
Min. Illumination	Color: 0.005 lux@F1.6
	B/W: 0.0005 lux@F1.6
	0 lux (illuminator on)
Illumination Distance	30 m (98.42 ft) (IR)
	30 m (98.42 ft) (white light)
Illuminator On/Off Control	Manual; auto; off
Illuminator Number	2 (IR light)
	2 (White light)
Lens
Focal Length	4 mm
Max. Aperture	F1.6
Field of View	H: 80.4° V: 58.1° D: 104.8°
Close Focus Distance	0.3 m (0.98 ft)
Iris Control	Fixed
DORI Distance	Detect	Observe	Recognize	Identify
	77.4 m (253.94 ft)	31.0 m (101.71 ft)	15.5 m (50.85 ft)	7.74 m (25.39 ft)
PTZ
Pan/Tilt Range	Pan: 0° to 345°
	Tilt: 0° to +80°
Manual Control Speed	Pan: 0.1°–74°/s
	Tilt: 0.1°–36.4°/s
Preset Speed	Pan: 62°/s
	Tilt: 36.3°/s
Preset	300.0
Power-off Memory	Yes
Idle Motion	Preset
Smart Event
IVS	Tripwire; intrusion
Human Detection	Yes
Active Deterrence
Light Warning	White light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low
Sound Warning	Sound warning alarm: Customizable Alarm duration: 10 s, 20 s, 30 s
Video
Video Compression	H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+
Streaming Capability	2 streams
Resolution	5M (2560 × 1920); 4M (2560 × 1440); 1080p (1920 × 1080); 960p(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate	Main stream: 5M(1–20 fps), 4M/1080p/1.3M/720p (1–25/30 fps)
	Sub stream: D1/CIF (1–25/30 fps)
Bit Rate Control	CBR/VBR
Video Bit Rate	H264: 512–8192 kbps
	H265: 233–7680 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
WDR	DWDR
HLC	Yes
White Balance	Auto; manual; tracking; indoor; outdoor; sodium lamp; street lamp; natural light
Gain Control	Auto; manual
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Image Rotation	180°
S/N Ratio	≥ 55 dB
Audio
Audio Compression	PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1
Network
Network Port	RJ-45 (10/100 Base-T)
Network Protocol	UDP; FTP; RTMP; IPv6; IPv4; IP Filter; DNS; RTCP; HTTP; NTP; SSL; DHCP; RTP; SMTP; HTTPS; TCP/IP; RTSP; DDNS; ARP
Interoperability	RTMP; CGI; SDK; ONVIF (Profile S&T); P2P
Streaming Method	Unicast/Multicast
User/Host	20
Storage	Micro SD card (support max. 512 GB); FTP
Browser	IE: IE 7 and later versions; Chrome; Firefox; Safari
Management Software	Player; Smart Player; Imou; DMSS; ConfigTool; NVR; Smart PSS
Mobile Client	iOS; Android
Storage	Micro SD card (support max. 512 GB); FTP
Browser	IE: IE 7 and later versions; Chrome; Firefox; Safari
Management Software	Player; Smart Player; DMSS; ConfigTool; NVR; Smart PSS
Mobile Client	iOS; Android
Certification
Certifications	CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-3-2/EN55024/EN55035/EN62368-1
	FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014
Port
Audio Input	1 channel (built-in mic)
Audio Output	1 channel (built-in speaker)
Two-way Audio	Yes
Alarm Linkage	Capture; preset; recording; audio; sending email
Alarm Event	Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Audio I/O	1.1
Power
Power Supply	12 VDC/1.5 A ± 10% PoE (802.3af)
Power Consumption	Basic: 4 W
	Max.: 12.95 W (illuminator)
Environment
Operating Temperature	–30 °C to +55 °C (–22 °F to +131 °F)
Operating Humidity	≤ 95%
Protection	IP66
Structure
Product Dimensions	140.5 mm × Φ111.0 mm (5.53" × Φ4.45")
Net Weight	0.5 kg (1.10 lb)
Gross Weight	1 kg (2.20 lb)
