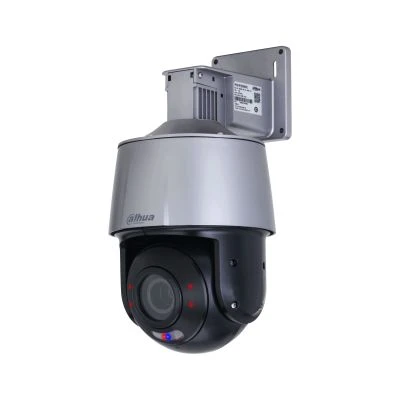

Dahua SD3A405-GN-PV1 IP PTZ Kamera

Özellikler

4MP IR Light Network PTZ Camera
1/3" 4Megapixel STARVIS™ CMOS
IR distance up to 30 m
H.265 Encoding
PoE
Max. 25/30 fps@4M>
IVS

Teknik Özellikler

Camera
Image Sensor	1/3" CMOS
Pixel	4 MP
Max. Resolution	2560 (H) x 1440 (V)
ROM	128 MB
RAM	128 MB
Electronic Shutter Speed	1/3 s–1/100,000 s
Scanning System	Progressive
Min. Illumination	Color: 0.05 lux@F1.7
	B/W: 0.005 lux@F1.7
	0 lux (IR light on)
Illumination Distance	30 m (98.42 ft) (IR)
Illumination On/Off Control	Auto; Manual; Off
Illumination Number	4 (IR)
Lens
Focal Length	2.7–13.5 mm
Max. Aperture	F1.7–F3.0
Field of View	H: 90.7°–27.9°; V: 48.2°–15.7°; D: 107.6°–32°
Focus Control	Auto; semi-auto; manual
Close Focus Distance	1 m (3.28 ft)
Iris Control	Fixed
DORI Distance	Detect	Observe	Recognize	Identify
	206.6 m(677.82 ft)	82.6 m(270.99 ft)	41.3 m(135.49 ft)	20.7 m(67.91 ft)
PTZ
Pan/Tilt Range	Pan: 0° to 355°
	Tilt: –15° to +90°
Manual Control Speed	Pan: 0.1°/s–26°/s
	Tilt: 0.1°/s–17.5°/s
Preset Speed	Pan: 26°/s; Tilt: 17.5°/s
Preset	300
Power-off Memory	Yes
Smart Event
IVS	Tripwire; intrusion
Human Detection	Yes
Active Deterrence
Light Warning	Red and blue light warning
	Flash duration: 5 s–30 s
	Flash frequency: High, medium, low
Sound Warning	Sound warning alarm: Customizable
	Alarm duration: 10 s, 20 s, 30 s
Video
Video Compression	Smart H.265+; H.265; Smart H.264; H.264; H.264B; MJPEG (Sub Stream 1)
Streaming Capability	2 Streams
Resolution	4M (2560 × 1440); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate	Main stream: 4M/1080p/1.3M/720p (1–25/30 fps)
	Sub stream 1: D1/CIF (1–25/30 fps)
Bit Rate Control	CBR; VBR
Video Bit Rate	H.264: 32 kbps–8192 kbps
	H.265: 32 kbps–8192 kbps
Day/Night	Auto (ICR); Color; B/W
BLC	Yes
WDR	DWDR
HLC	Yes
White Balance	Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control	Auto; Manual
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Image Rotation	180°
S/N Ratio	≥55 dB
Audio
Audio Compression	G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723
Network
Network Port	RJ-45 (10/100 Base-T)
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; SSL; FTP; ARP; RTCP; RTP; IP Filter; RTMP; TCP
Interoperability	CGI
Streaming Method	Unicast; Multicast
User/Host	20
Storage	FTP; Micro SD card (256 GB)
Browser	IE 7 and later versions
	Chrome 42 and earlier versions
	Firefox 52 and earlier versions
	Safari
Management Software	Smart PSS; DMSS; player; configtool; NVR; Smart Player
Mobile Client	iOS; Android; iPhone; iPad; Windows Phone
Certification
Certifications	CE: EN55032/EN55024/EN50130-4
	FCC: Part15 subpartB, ANSI C63.4-2014
Port
Audio Input	1 channel (built-in Mic)
Audio Output	1 channel (built-in speaker)
Audio I/O	1.1
Two-way Audio	Yes
Alarm Linkage	Capture; preset; recording; send email; audio
Alarm Event	Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Power
Power Supply	12 VDC, 1.5 A (±10%)
	PoE (802.3af)
Power Consumption	Basic: 2.5 W
	Max.: 12.95 W (illuminator)
Environment
Operating Temperature	–30 °C to 60 °C (–22 °F to +140 °F)
Operating Humidity	≤95%
Protection	IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions	271.7 mm × 165.5 mm × 140 mm (10.70" × 6.52" × 5.51")
Net Weight	1.07 kg (2.36 lb)
Gross Weight	1.46 kg (3.21 lb)
