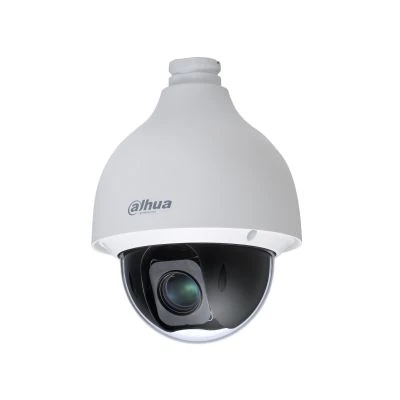

Dahua SD50232-HC-LA HDCVI PTZ Kamera
Özellikler
Teknik Özellikler
| Camera | |||
| Image Sensor | 1/2.8" STARVIS™ CMOS | ||
| Pixel | 2MP | ||
| Max. Resolution | 1920 (H) x 1080 (V) | ||
| ROM | 16 MB | ||
| RAM | 256 MB | ||
| Electronic Shutter Speed | 1/3 s–1/100000 s | ||
| Scanning System | Progressive | ||
| Min. Illumination | Color: 0.005 Lux@F1.6 | ||
| B/W: 0.0005 Lux@F1.6 | |||
| Lens | |||
| Focal Length | 4.5 mm–144 mm | ||
| Max. Aperture | F1.6–F4.0 | ||
| Field of View | H: 60.14°–2.75°; V: 34.41°–1.54°; D: 68.23°–3.16° | ||
| Optical Zoom | 32x | ||
| Focus Control | Auto/Semi-Auto/Manual | ||
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) | ||
| Iris Control | Auto/Manual | ||
| DORI Distance | Detect | Observe | Identify |
| 1986 m (6515.75 ft) | 785 m (2575.46 ft) | 198 m (649.61 ft) | |
| PTZ | |||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°,auto flip 180° | ||
| Manual Control Speed | Pan: 0.1°–350°/s; Tilt: 0.1°–250°/s | ||
| Preset Speed | Pan: 500°/s; Tilt: 500°/s | ||
| Presets | 300 | ||
| Tour | 8 (up to 32 presets per tour) | ||
| Pattern | 5 | ||
| Scan | 5 | ||
| Speed Adjustment | Support | ||
| Power-off Memory | Support | ||
| Idle Motion | Preset/Tour/Pattern/Scanning | ||
| Protocol | DH-SD | ||
| Pelco-P/D (auto recognition) | |||
| Video | |||
| Resolution | 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480) | ||
| Frame Rate | 1080P (25/30 fps); 720P (25/30/50/60 fps) | ||
| CVI Product Output Mode | CVI; TVI; AHD; CVBS | ||
| Day/Night | Support | ||
| BLC | Support | ||
| WDR | 120 dB | ||
| HLC | Support | ||
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp | ||
| Gain Control | Auto/Manual | ||
| Noise Reduction | 2D/3D | ||
| Defog | Electronic | ||
| Digital Zoom | 16x | ||
| Flip | °/180° | ||
| Privacy Masking | Up to 24 areas | ||
| Audio | |||
| Compression | G.711a; G.711Mu | ||
| Certification | |||
| Certifications | CE: EN55032/EN55024/EN50130-4 | ||
| FCC: Part15 subpartB,ANSI C63.4-2014 | |||
| UL62368-1+CAN/CSA C22.2,No. 62368-1 | |||
| Port | |||
| Analog Output | 1 (CVBS/CVI output, BNC port) | ||
| RS-485 | 1 (baud rate range: 1200 bps–9600 bps) | ||
| Audio Input | 1 (LINE IN; bare wire) | ||
| Alarm I/O | 2.1 | ||
| Power | |||
| Power Supply | DC 24V/2.5A ± 25% | ||
| Power Consumption | Basic: 15.5W | ||
| Max: 18.5W (fan enabled, PTZ rotating) | |||
| Environment | |||
| Operating Temperature | -40°C ~ 60°C (-40°F ~ +140°F) | ||
| Operating Humidity | ≤ 95%RH | ||
| Protection | IP67; IK10; TVS 6000V lightning protection; surge protection | ||
| Structure | |||
| Dimensions | 253.0 mm × Φ186.2 mm (9.96" × Φ7.33") | ||
| Net Weight | 2.5 kg (5.51 lb) | ||
| Gross Weight | 4.5 kg (9.92 lb) | ||
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 2MP (1080P)
