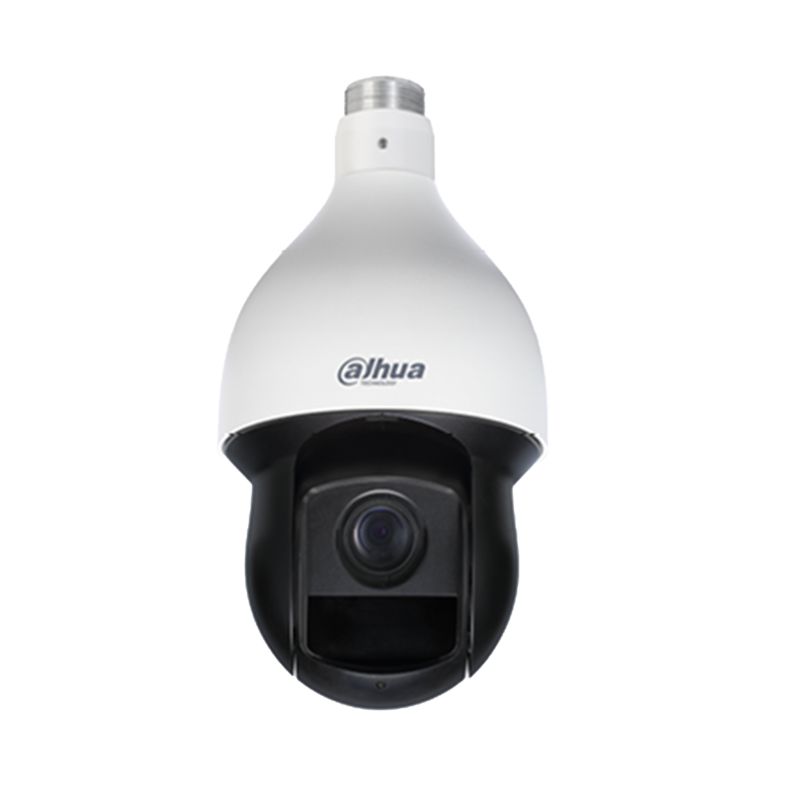

Dahua SD59225-HC-LA HDCVI PTZ Kamera

Özellikler

2MP 25x Starlight IR PTZ HDCVI Camera
1/2.8" 2Megapixel STARVIS™ CMOS
Powerful 25x optical zoom
Starlight technology
120 dB true WDR, 3D DNR
Max. 25/30 fps@1080P, 25/30/50/60 fps@720P>
IR distance up to 150 m
IP66

Teknik Özellikler

Camera
Image Sensor	1/2.8" STARVIS™ CMOS
Pixel	2MP
Max. Resolution	1920 (H) x 1080 (V)
ROM	16 MB
RAM	256 MB
Electronic Shutter Speed	1/3 s–1/100000 s
Scanning System	Progressive
Min. Illumination	Color: 0.005 Lux@F1.6
	B/W: 0.0005 Lux@F1.6
	0 Lux@F1.6 (IR on)
Illumination Distance	150 m (492.13 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	4
Lens
Focal Length	4.8 mm–120 mm
Max. Aperture	F1.6–F3.5
Field of View	H: 61°–2.8°
	V: 22.6°–0.4°
Optical Zoom	25x
Focus Control	Auto/Semi-Auto/Manual
Close Focus Distance	0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris Control	Auto/Manual
DORI Distance	Detect	Observe	Recognize	Identify
	1655.2 m (5430.45 ft)	656.8 m (2154.86 ft)	331.0 m (1085.96 ft)	165.5 m (542.98 ft)
PTZ
Pan/Tilt Range	Pan: 0°–360°
	Tilt: -15°–+90°Pan:0.1°–300°/s
Manual Control Speed
	Tilt:0.1°–200°/s
Preset Speed	Pan: 400°/s; Tilt: 300°/s
Presets	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Speed Adjustment	Support
Power-off Memory	Support
Idle Motion	Preset/Tour/Pattern/Scanning
Protocol	DH-SD
	Pelco-P/D (auto recognition)
Video
Resolution	1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480)
Frame Rate	1080P (25/30 fps), 720P (25/30/50/60 fps)
CVI Product Output Mode	CVI; TVI; AHD; CVBS
Day/Night	Support
BLC	Support
WDR	120 dB
HLC	Support
White Balance	Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp
Gain Control	Auto/Manual
Noise Reduction	2D/3D
Defog	Electronic
Digital Zoom	16x
Flip	°/180°
Privacy Masking	Up to 24 areas
Audio
Compression	G.711a; G.711Mu
Certification
Certifications	CE: EN55032/EN55024/EN50130-4
	FCC: Part15 subpartB, ANSI C63.4-2014
	UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Port
Audio Input	1 (LINE IN; bare wire)
Analog Output	1 (CVBS/CVI output, BNC port )
RS-485	1 (baud rate range: 1200 bps–9600 bps)
Alarm Input	2
Alarm Output	1
Power
Power Supply	DC 24V/3A ± 25%
Power Consumption	9.6W
	22W (IR light on, PTZ)
Environment
Operating Temperature	–40°C to +70°C (–40°F to +158°F)
Operating Humidity	≤ 95%RH
Protection	IP66; TVS 6000V lightning protection; surge protection
Structure
Dimensions	310.0 mm × Φ186.0 mm (12.20" × Φ7.32")
Net Weight	3.9 kg (8.60 lb)
Gross Weight	7.2 kg (15.87 lb)
