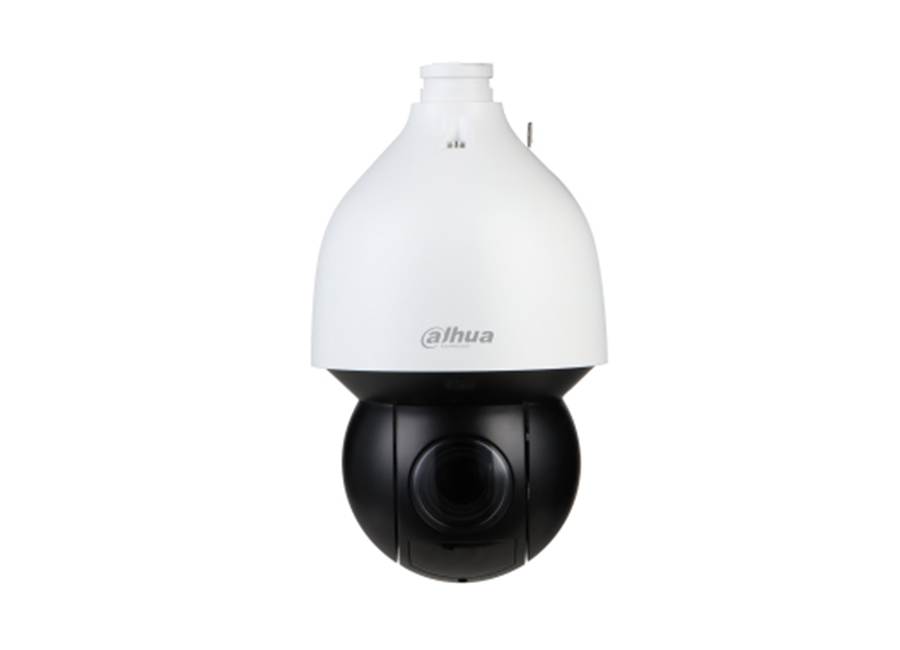

Dahua SD5A445XA HNR IP PTZ Kamera

Özellikler

1/2.8”4Megapixel STARVIS™ CMOS
Powerful 45x optical zoom
Starlight technology
Max. 25/30fps@4MP
IR distance up to 150m
Deep-learning-based auto tracking and perimeter protection
Auto-tracking and IVS
PoE+
IP67 , IK10

Teknik Özellikler

Camera
Image Sensor	1/2.8" STARVIS™ CMOS
Max. Resolution	4MP
Effective Pixels	2560 (H)×1440 (V)
ROM	4GB
RAM	1GB
Electronic Shutter Speed	1/3–1/30000s
Scanning Mode	Progressive Scanning
Minimum Illumination	Color: 0.005Lux@F1.6
	B/W: 0.0005Lux@F1.6
	0Lux (IR light on)
IR Distance	150 m (492.13 ft)
IR On/Off Control	Zoom Prio/Manual/SmartIR
IR LED Number	4
Lens
Focal Length	3.95 mm–177.7 mm
Aperture	F1.6–F4.95
Field of View	H: 70.3°–1.8°; V: 37°–1°; D: 69.3°–2°
Optical Zoom	45x
Focus Control	Auto/Semi-Auto/Manual
Close Focus Distance	0.01 m–3 m
Iris Control	Auto/Manual
DORI Distance	Detect	Observe	Recognize	Identify
	3176 m(10419.95 ft)	1270 m (4166.67 ft)	635 m (2083.33 ft)	317 m (1040.03 ft)
PTZ
Pan/Tilt Range	Pan: 0°–360°; Tilt: -15°–+90°
Manual Control Speed	Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s
Preset Speed	Pan: 400°/s; Tilt: 300°/s
Presets	300
Tour	8(up to 32 preset per tour)
Pattern Number	5
Scanning Number	5
Speed Adjustment	Support
Power-off Memory	Support
Idle Motion	Preset/Tour/Pattern/Scanning
Protocol	DH-SD
	Pelco-P/D(Auto recognition)
Artifical Intelligence
Perimeter Protection	Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Auto Tracking	Support
Video Structuralization	Support human, motor vehicle and non-motor vehicle image capture
General Intelligence
Event Trigger	Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly.
General IVS	Object Abandoned/Missing
Video
Compression	H.265/H.265+/H.264+/H.264/MJPEG(Sub Stream)
Streaming Capability	3 Streams
Resolution	2560 ×1440 (2560×1440); 3M (2048×1536); 1080P (1920×1080); (1.3M)1280×960; 720P (1280×720); D1 (704× 576/704×480); CIF (352×288/352×240)
Frame Rate	Main stream: 4M/3M(1–25/30fps), 1080P/1.3M/720P(1–25/30fps)
	Sub stream 1: D1/CIF(1–25/30fps)
	Sub stream 2: 1080P/1.3M/720P(1–25/30fps), D1/CIF(1–25/30fps)
Bit Rate Control	Variable Bit Rate/Constant Bit Rate
Bit Rate	H.264: 32 Kbps–8192 Kbps
	H.265: 32 Kbps–8192 Kbps
Day/Night	Support
BLC	Support
WDR	120dB
HLC	Support
White Balance	Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp
Gain Control	Auto/Manual
Noise Reduction	2D/3D
Motion Detection	Support
Region of Interest (RoI)	Support
Electronic Image	Support
Stabilization (EIS)
Optical Defog	Electronic Defog
Digital Zoom	16x
Flip	°/180°
Privacy Masking	Up to 24 areas
Certifications
Certification	CE: EN55032/EN55024/EN50130-4
	FCC: Part15 subpartB,ANSI C63.4- 2014
Audio
Audio Compression	G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2
Port
Audio In	1 (LINE IN; bare wire)
Audio Out	1 (LINE OUT; bare wire)
Alarm Port	2 alarm input port; 1 alarm output port
Network
Ethernet Port	1 RJ-45 Port 10/100Base-T
Protocol	IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Interoperability	ONVIF Profile S&G; CGI
Streaming Method	Unicast/Multicast
Max. User Access	20 (Total bandwidth 48M)
Edge Storage	FTP; Micro SD card (256G); P2P
Browser	IE7 and newer versions
	Chrome 42 and older versions
	Firefox 52 and older versions
	Safari
Management Software	Smart Player
	Smart PSS
	DSS
	Easy4ip
Smart Phone	IOS/Android/Windows Phone
Electrical
Power Supply	AC24V/3A±25%
	PoE+(802.3at)
Power Consumption	11W
	20W (IR light on)
Environment
Operating Conditions	–40°C to +70°C (–40°F to +158°F)
Operating Humidity	≤95%RH
Ingress Protection	IP67; IK10; TVS 6000V lightning protection; surge protection
Construction
Dimensions	Φ190 mm×332 mm (7.48"×13.07")
Weight	Net Weight: 4.7 kg (10.36 lb);
	Gross Weight: 8 kg (17.64 lb)
Casing	Metal
