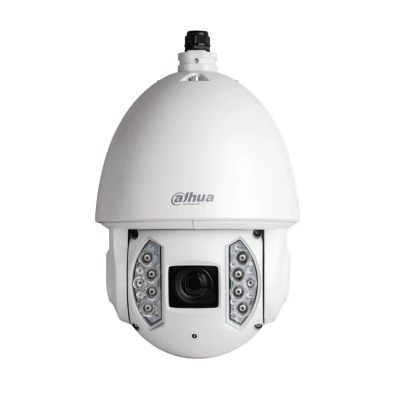

Dahua SD6AE433XA-HNR IP PTZ Kamera

Özellikler

1/1.8" 4Megapixel CMOS
Powerful 33x optical zoom
Starlight+ technology
IR distance up to 200m
Deep-learning-based auto tracking and perimeter protection
Support Hi-PoE
IP67, IK10
SMD Plus
Face detection

Teknik Özellikler

Camera
Image Sensor	1/1.8" CMOS
Pixel	4MP
Max. Resolution	2560 (H) × 1440 (V)
ROM	4 GB
RAM	1 GB
Electronic Shutter Speed	1/1 s–1/30000 s
Scanning System	Progressive
Min. Illumination	Color: 0.001 Lux@F1.5
	B/W: 0.0001 Lux@F1.5
	0 Lux (IR on)
Illumination Distance	200m (656ft)
Illuminator On/Off Control	Zoom Prio/Manual/SmartIR/Off
Illuminator Number	10 IR lights
Lens
Focal Length	5.8 mm–191.4 mm
Max. Aperture	F1.5–F4.8
Field of View	H: 60.1°–3.1°; V: 35.3°–1.8°; D: 67.9°–3.6°
Optical Zoom	33x
Focus Control	Auto/Semi-Auto/Manual
Close Focus Distance	0.1 m–1 m (0.33 ft–3.28 ft)
Iris Control	Auto/Manual/Fixed
DORI Distance	Detect	Observe	Recognize	Identify
	2640 m (8661.42 ft)	1043 m (3421.92 ft)	528 m (1732.28 ft)	264 m (866.14 ft)
PTZ
Pan/Tilt Range	Pan: 0°–360° endless
	Tilt: -20° to +90°, auto flip 180°
Manual Control Speed	Pan: 0.1°/s–200°/s
	Tilt: 0.1°/s–120°/s
Preset Speed	Pan: 240°/s; Tilt: 200°/s
Presets	300
Tour	8 tours (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Support
Idle Motion	Preset/Tour/Pattern/Scanning
Protocol	DH-SD
	Pelco-P/D (auto recognition)
General Intelligence
Event Trigger	Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, and storage anomaly.
IVS	Object Abandoned/Missing
Artificial Intelligence
Smart Capture	Support human, motor vehicle and non-motor vehicle image capture.
Perimeter Protection	Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Face Detection	Support
SMD PLUS	Support
Auto Tracking	Support
Video
Compression	H.265; H.264B; H.264M; MJPEG (sub stream); H.264H; H.265+; H.264+
Streaming Capability	3 streams
Resolution	4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920×1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576); CIF (352 × 288)
Frame Rate	Main stream: 4M/3M/1080P/1.3M/720P (1–25/30 fps)
	Sub stream 1: D1/CIF (1–25/30 fps)
	Sub stream 2: 720P (1–25/30 fps)
Bit Rate Control	Variable/Constant
Bit Rate	H.264: 3 Kbps–20480 Kbps
	H.265: 3 Kbps–20480 Kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Support
WDR	120 dB
HLC	Support
White Balance	Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp
Gain Control	Auto/Manual
Noise Reduction	2D/3D
Motion Detection	Support
Region of Interest (RoI)	Support
Image Stabilization	Electronic
Defog	Electronic
Digital Zoom	16x
Flip	180°
Privacy Masking	Up to 24 areas, and up to 8 areas in the same view
S/N Ratio	≥ 55 dB
Audio
Compression	G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMPv1/v2c/v3 (MIB-2); RTCP
Interoperability	ONVIF Profile S&G&T, API
Streaming Method	Unicast/Multicast
User/Host	20 (total bandwidth 64 MB)
Storage	NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB
Browser	IE7 and later versions
	Chrome 42 and earlier versions
	Firefox 52 and earlier versions
	Safari
Management Software	Smart PSS; DSS; DMSS; Easy4ip; IVSS
Mobile Phone	IOS, Android
Certification
Certifications	CE: EN55032/EN55024/EN50130-4
	FCC: Part15 subpartB, ANSI C63.4-2014
Port
RS-485	1
Audio I/O	1/2
Alarm I/O	7/2
Power
Power Supply	AC24V/3A(±25%), Hi-PoE
Power Consumption	Basic: 20W
	Max: 32W (IR on)
Environment
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Operating Humidity	≤ 95%
Protection	IP67; TVS 8000V lightning proof; surge protection; voltage transient protection
Structure
Dimensions	382 mm × Φ240 mm (15.04" × Φ9.45")
Net Weight	5.8 kg (12.79 lb)
Gross Weight	10.5 kg (23.15 lb)
