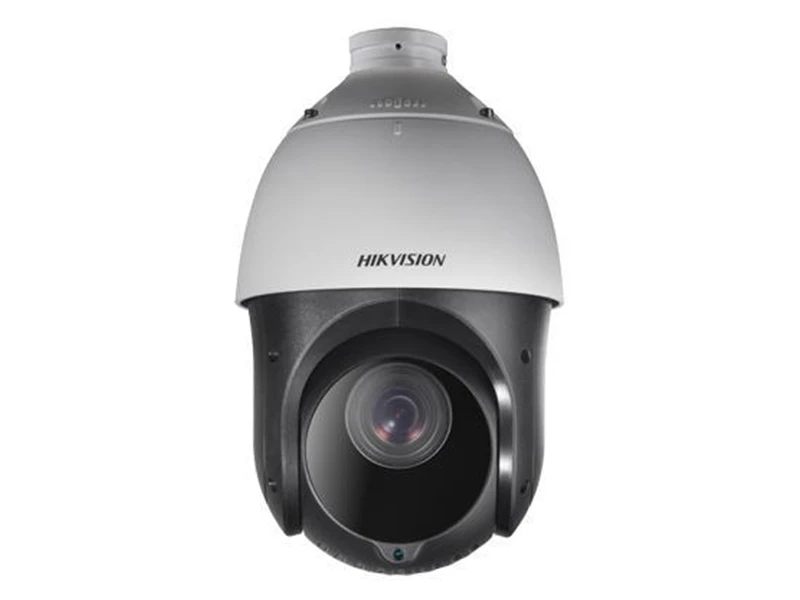

Haikon DS 2DE4220IW D IP HD Speed Dome Kamera
Özellikler
- 1/2.8’’ Progressive Scan CMOS
- 1920 x 1080
- 20X Optical Zoom
- DWDR
- 3D intelligent positioning function
- Support EZVIZ cloud P2P
- Up to 100m IR distance
- 12VDC power supply
Teknik Özellikler
| Image Sensor: 1/2.8" Progressive Scan CMOS |
| Effective Pixels: 1920(H)x1080(V) |
| Signal System: PAL/NTSC |
| Minimum Illumination: F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux, 0 lux with IR |
| White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC: Auto/Manual |
| S/N Ratio: ≥ 52dB |
| BLC: ON/OFF |
| HLC: Support |
| WDR: Support |
| Shutter Time: 1-1/10,000s |
| Day& Night: ICR |
| Digital Zoom: 16X |
| Privacy Masking: 8 privacy masks programmable |
| Auto Focus: Auto / Semi-automatic / Manual |
| Focal Length: 4.7-94.0mm, 20x |
| Zoom Speed: Approx.3s(Optical Wide~Tele) |
| Angle of View: 58.3-3.2 degree (Wide~Tele) |
| Minimum Working Distance: 10~1,000mm(Wide~Tele) |
| Aperture Range: F1.6~F3.5 |
| Pan Range: 360°endless |
| Pan Speed: Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s |
| Tilt Range: -15°-90° (Auto Flip ) |
| Tilt Speed: Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s |
| Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: 300 |
| Patrol: 8 patrols, up to 32 presets per patrol |
| Power loss recovery: Support |
| Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display: ON/OFF |
| IR irradiation distance: 100m |
| IR irradiation angle: Adjustable by zoom |
| Ethernet: 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution: 1920×1080 |
| Image Compression: H.264 / MJPEG |
| ROI encoding: Support 4 areas with adjustable levels |
| No. of Simultaneous Users: Up to 20 users |
| Dual Stream: Support |
| Mini SD Card: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| User/Host Level: Up to 32 users,3 Levels: Administrator, Operator and User |
| EZVIZ: Support |
| Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display: Time: Week: Date, 6 formats on the Client |
| Client: Support iVMS-4200 |
| Web Browser: IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 + |
| Menu Language: English |
| Power Supply: 12V DC |
| Power Consumption: Max.20W |
| Working Temperature/Humidity: -30°C ~ 65°C (-22°F ~ 149°F) |
| Mounting: Various mounting modes optional |
| Dimensions: Φ164.5(mm)×295(mm) |
| Weight (approx.): 2kg (4.41lbs) |
Haikon DS 2DE4220IW D IP HD Speed Dome Kamera Pdf Dosyası795.04 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
Depolama : Var
