Açıklama

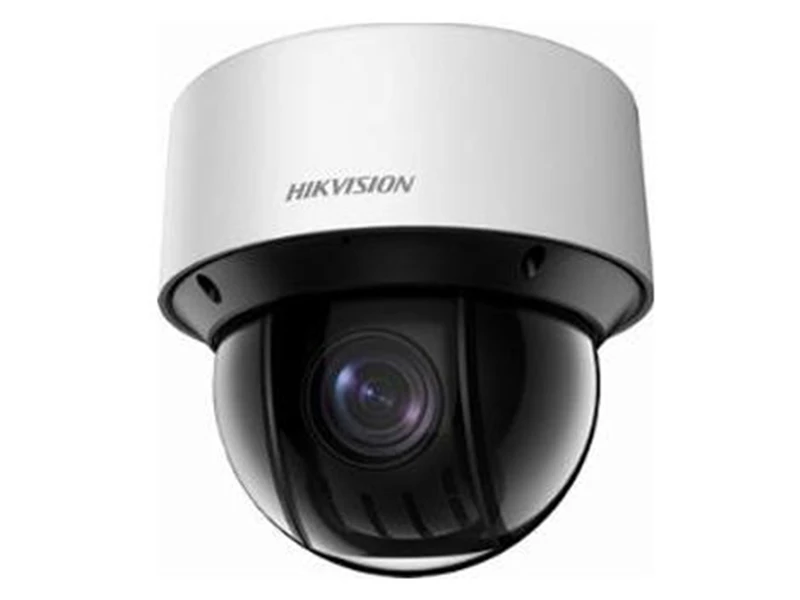

Haikon DS 2DE4A320IW DE IP HD Speed Dome Kamera
Özellikler
- 3MP Network İç Ortam / dış ortam Speed Dome Kamera (50mt IR)
- 3MP, 1/2.8" CMOS sensör
- 20X optik zoom (4.7-94mm), H.264
- Renkli: 0.05Lux, B/W:0.01Lux, 0 lux (IR açık)
- 2048*1536:30fps
- 1920×1080: 60fps, AGC, BLC, WDR, 3D DNR
- Üçlü akış desteği
- Alarm girişi/çıkışı: 2/2, Ses girişi/çıkışı,
- microSD desteği (128GB)
- ~50m IR, IP66
- Yüksek gerilim koruması (4000V)
- PoE&12VDC
Teknik Özellikler
| Camera | |
| Image Sensor: | 1/2.8" Progressive Scan CMOS |
| Minimum Illumination: | Color: 0.05 Lux @ (F1.6, AGC ON) |
| B/W: 0.01 Lux @ (F1.6, AGC ON) | |
| Lux with IR | |
| AGC: | Auto/Manual |
| BLC: | ON/OFF |
| HLC: | Support |
| WDR: | Support |
| Shutter Time: | 1/1 to 1/30,000s |
| Lens | |
| Focal Length: | 4.7 to 94mm, 20× Optical |
| Zoom Speed: | Approx. 2.7s (optical lens, wide-tele) |
| Angle of View: | 58.3° to 3.2° (wide-tele) |
| Minimum Working Distance: | 10 to 1500mm (wide-tele) |
| Aperture Range: | F1.6 to F3.5 |
| Pan & Tilt | |
| Pan Range: | 360°endless |
| Pan Speed: | Configurable, from 0.1°/s to 300°/s |
| Preset Speed: 350°/s | |
| Tilt Range: | -2°-90° (Auto Flip ) |
| Tilt Speed: | Configurable, from 0.1°/s to 160°/s |
| Preset Speed: 200°/s | |
| Number of Preset: | 300 |
| Patrol: | 8 patrols, up to 32 presets for each patrol |
| Pattern: | 4 pattern scans, record time over 10 minutes for each scan |
| Power loss recovery: | Support |
| Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display: | ON/OFF |
| Freeze Frame: | Support |
| Alarm | |
| Alarm Input: | 2 |
| Alarm Output: | 2 |
| Network | |
| Max.Image Resolution: | 2048×1536 |
| Main Stream: | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) |
| 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720) | |
| Image Compression: | H.264 / MJPEG |
| No. of Simultaneous Users: | Up to 20 users |
| General | |
| Power Supply: | 12 VDC &POE (802.3at,class4) |
| Power Consumption: | Max.: 18W (IR light 5W Max.) |
| Working Temperature/Humidity: | Outdoor: -30°C to 65°C (-22°F to 149°F) |
| Working Humidity ≤ 90% | |
| Protection Level: | IP66 standard (outdoor dome) |
| TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Dimensions: | Φ169.39mm ×161mm (Φ6.67"×6.34") |
| Weight (approx.): | Approx. 2.45kg (5.40lb) |
Haikon DS 2DE4A320IW DE IP HD Speed Dome Kamera PDF Dosyası586.53 KB
Teknik Kısa
Ses : Var
Çözünürlük : 3MP
Irled : Var
Depolama : Var
