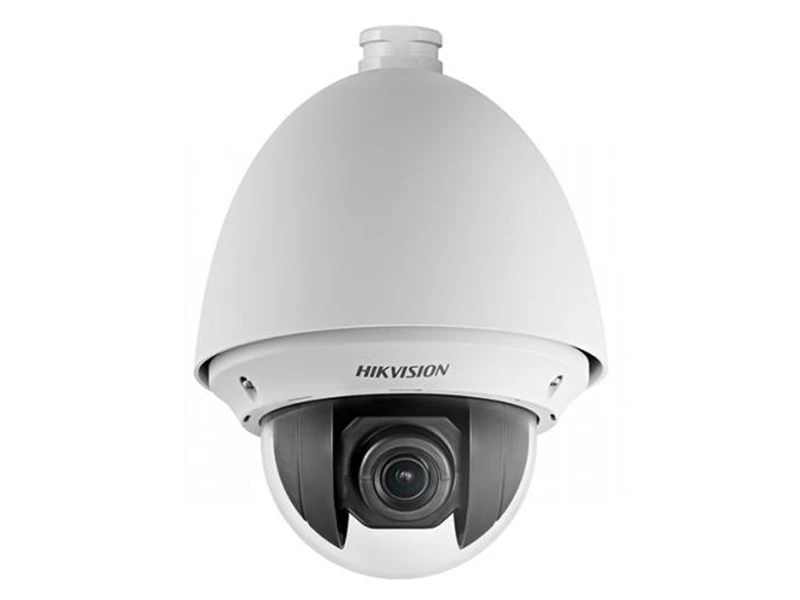

Haikon DS 2DE5220W AE IP HD Speed Dome Kamera

Özellikler

2MP Network Harici Speed Dome Kamera
1/2.8’’ PS CMOS
20X Optik zoom
ICR, AGC, BLC, DWDR, HLC, AWB
3D DNR
Defog, ANR, Akıllı IR, ROI, 256 Preset
Üçlü akış, Alarm girişi/çıkışı: 2/1, Ses Girişi/Çıkışı
microSD desteği (~128GB)
IP66, IK10, Hi-PoE veya 24VAC

Teknik Özellikler

Camera
Image Sensor:	1/2.8" Progressive Scan CMOS
Effective Pixels:	1920(H)x1080(V)
Minimum Illumination:	F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux
White Balance:	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:	Auto/Manual
S/N Ratio:	≥ 52dB
BLC:	ON/OFF
WDR:	Support
Shutter Time:	1-1/10,000s
Day& Night:	ICR
Digital Zoom:	16X
Privacy Masking:	8 privacy masks programmable
Lens
Focal Length:	4.7-94mm, 20x
Zoom Speed:	Approx.2.7s(Optical Wide~Tele)
Angle of View:	61.4-2.9 degree (Wide~Tele)
Minimum Working Distance:	10~1,500mm(Wide~Tele)
Aperture Range:	f1.6 -f3.5
Pan & Tilt
Pan Range:	360°endless
Pan Speed:	0.1°~250°/s, Pan Preset Speed: 300°/s
Tilt Range:	-5°~90° (Auto Flip )
Tilt Speed:	0.1°~150°/s, Tilt Preset Speed: 200°/s
Number of Preset:	300
Patrol:	8 patrols, up to 32 presets per patrol
Park Action:	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Alarm
Alarm Input:	2
Alarm Output:	1
Input & Output
Audio Input:	1 Mic in/Line in interface
	Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output:	1 Audio output interface
	Line level, impedance: 600Ω
Network
Ethernet:	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:	1920×1080
Main Stream:	50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720)
	60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Image Compression:	H.264 / MJPEG
Audio Compression:	G.711ulaw/G.711alaw/G.726/MP2L2/G.722
No. of Simultaneous Users:	Up to 20 users
Three-Stream:	Support
Mini SD Card:	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level:	Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures:	User authentication (ID and PW),
	Host authentication (MAC address)
	IP address filtering
Client GUI
Web Browser:	IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
General
Power Supply:	-AE: 24VAC/PoE+(802.3at); -AE3: 24VAC/PoE(802.3af)
Power Consumption:	Max.: 18W
Working Temperature/Humidity:	-30°C ~ 65°C (-22°F ~ 149°F)
Protection Level:	IP66, TVS 4000V lightning protection, surge protection and voltage transient protection
Dimensions:	Φ220×305mm(Outdoor)
	Φ183.4×243mm(Indoor)
	Φ245×236mm (In-ceiling)
Weight (approx.):	3kg (6.61lbs)
Mount Option:	Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner;
	Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box;
