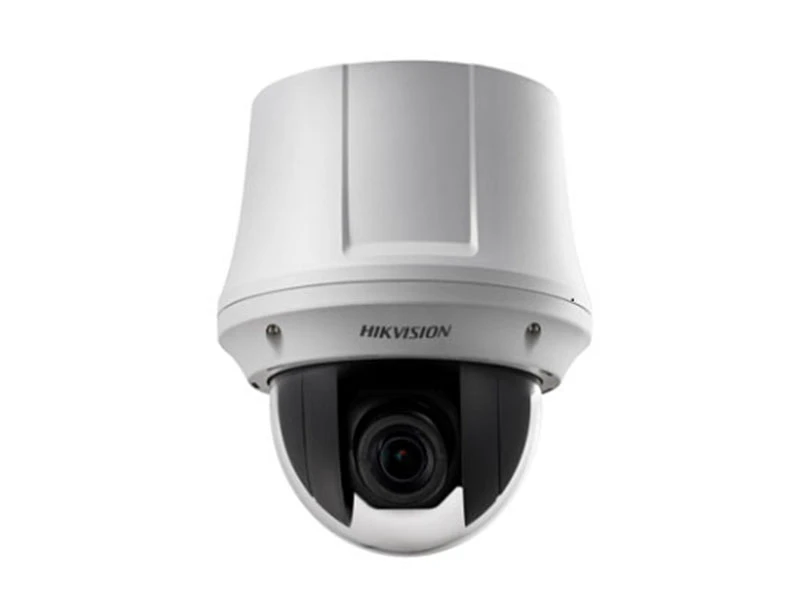

Hikvision DS 2DE4220W IP Speed Dome Kamera
Özellikler
- 1/2.8" Progresif Tarama CMOS
- 1920 × 1080@30fps Çözünürlük
- 20X Yakınlaştırma
- Otomatik Focus
- DWDR
- 3D Konumlandırma
- PoE (802.3at, class 4)
- Hik Bulut P2P
- IP66
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Minimum Illumination | Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01Lux @ (F1.6, AGC ON) |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Auto/Manual |
| HLC | Support |
| Smart defog | Support |
| WDR | DWDR |
| Anti-shake | On / Off |
| Shutter Time | Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01Lux @ (F1.6, AGC ON) |
| Day& Night | ICR |
| Digital Zoom | 16× |
| Privacy Masking | 8 privacy masks programmable |
| Auto Focus | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length | 4.7 to 94mm |
| Zoom Speed | Approx. 3s (optical lens, wide-tele) |
| Angle of View | 61.4° to 2.9° (wide-tele) |
| Minimum Working Distance | 10 to 1000mm (wide-tele) |
| Aperture Range | F1.6 to F3.5 |
| Pan & Tilt | |
| Pan Range | 360°endless |
| Pan Speed | Pan: 0.1° to 160°/s |
| Tilt Range | 5°~90° (Auto Flip ) |
| Tilt Speed | Tilt: 0.1°to 120°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Power loss recovery | Support |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display | ON/OFF |
| Alarm | |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Alarm Actions | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output,
Notification on Client, Send Email, Upload to FTP, Trigger Channel |
| Input & Output | |
| Audio Input | 1 channel Mic. Input (applicable microphone, plug-in power type), 2.0~2.4Vp-p, 1k Ohm±10% |
| Audio Output | 1 channel audio output, linear level |
| General | |
| Power Supply | 12 VDC &POE (802.3at,class4) |
| Dimensions | Outdoor Models: Φ179.4×239.5mm (Φ7.1"×9.4") |
| Weight (approx.) | Approx. 2.0kg (4.4lb) |
Hikvision DS 2DE4220W IP Speed Dome Kamera Pdf Dosyası559.02 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
Ses : Var
