Açıklama

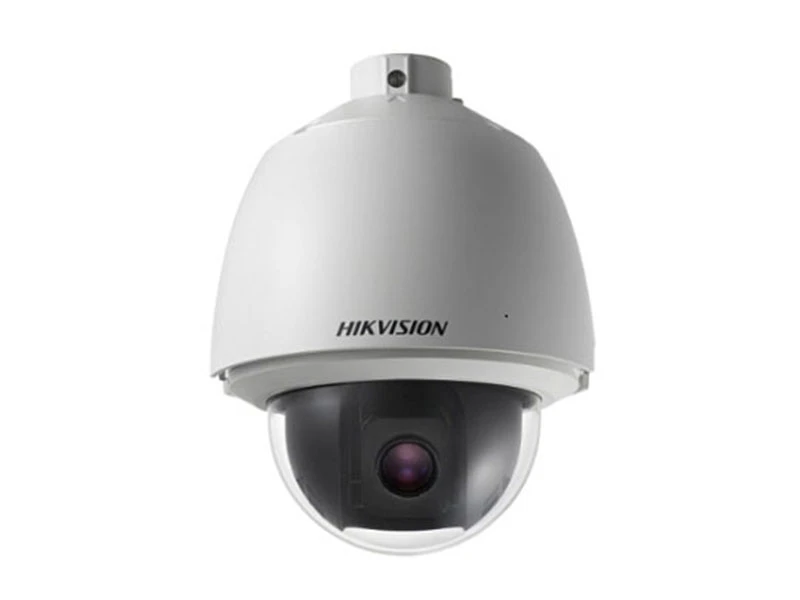

Hikvision DS 2DE5225W AE IP Speed Dome Kamera
Özellikler
- 1/2.8" progressive scan CMOS
- Up to 1920 × 1080@60fps resolution
- Min. illumination:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON) - 25× optical zoom, 16× digital zoom
- WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
- 24 VAC & PoE+ (802.3 at, class4)
- Support H.265+/H.265 video compression
Teknik Özellikler
| Camera | |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) |
| B/W: 0.001Lux @(F1.6, AGC ON) | |
| White Balance | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| Smart defog | Support |
| WDR | 120dB |
| Shutter Time | 1-1/10,000s |
| Day& Night | ICR |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 4.8 mm to 120 mm, 25× optical zoom |
| Zoom Speed | Approx. 3.6 s (optical lens, wide-tele) |
| Angle of View | Horizontal field of view: 57.6° to 2.5° (Wide-Tele) |
| Vertical field of view: 34.4° to 1.4° (Wide-Tele) | |
| Diagonal field of view: 64.5° to 2.9° (Wide-Tele) | |
| Minimum Working Distance | 10-1,500mm(Wide-Tele) |
| Aperture Range | F1.6 to F3.5 |
| Pan & Tilt | |
| Pan Speed | Configurable, from 0.1°/s to 250°/s, |
| Preset speed: 300°/s | |
| Tilt Speed | Configurable, from 0.1°/s to 150°/s |
| Preset Speed: 200°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Pattern | 4 pattern scans, record time over 10 minutes for each scan |
| Power loss recovery | Support |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Position Display | ON/OFF |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Audio Mode | OFF/Audio input/Audio output |
| No. of Simultaneous Users | Up to 20 users |
| Three-Stream | Support |
| EZVIZ | Support |
| General | |
| Menu Language | English |
| Power Consumption | Max.: 22 W |
| Working Temperature/Humidity | -30 ℃-65℃(-22℉-149℉)(outdoor) |
| 90% or less | |
| Mounting | Various mounting modes optional |
| Dimensions | Φ 220 mm × 280 mm (Φ 8.66" × 11.02") |
| Weight (approx.) | Approx. 3 kg (6.61 lb) |
Hikvision DS 2DE5225W AE IP Speed Dome Kamera Pdf Dosyası908.32 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
Ses : Var
