Açıklama

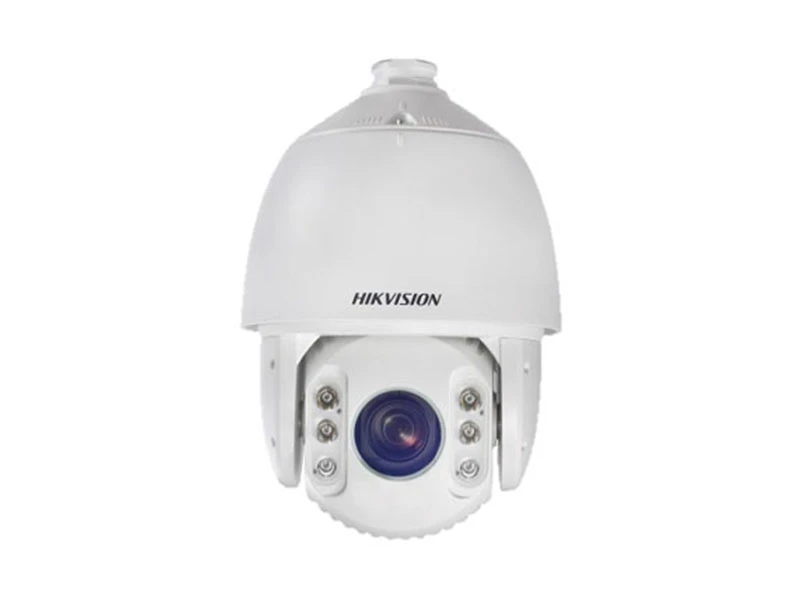

Hikvision DS 2DE7430IW AE IP Speed Dome Kamera
Özellikler
- 1/1.9" progressive scan CMOS
- Up to 2560 × 1440 resolution
- Min. illumination:
Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.002 Lux @(F1.5, AGC ON)
0 Lux with IR - 30× Optical Zoom, 16× Digital Zoom
- Defog, EIS, 3D DNR, BLC, HLC, Digital WDR
- IR distance up to 150 m
- 24 VAC & Hi-PoE
- Support H.265+/H.265 video compression
Teknik Özellikler
| Camera | |
| Image Sensor | 1/1.9" progressive scan CMOS |
| Effective Pixels | 2560(H)×1440(V) |
| Signal System | PAL/NTSC |
| Minimum Illumination | Color: 0.005 Lux @(F1.5, AGC ON) |
| B/W: 0.002 Lux @(F1.5, AGC ON) | |
| 0 Lux with IR | |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| Smart defog | Support |
| WDR | DWDR |
| Shutter Time | 50Hz: 1/1 s to 1/30,000 s |
| 60Hz: 1/1 s to 1/30,000 s | |
| Day& Night | ICR |
| Digital Zoom | 16X |
| Privacy Masking | 8 privacy masks programmable |
| Auto Focus | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length | 5.9 mm to 177 mm, 30× Optical Zoom |
| Zoom Speed | Approx. 4.8 s (Optical Lens, Wide-Tele) |
| Angle of View | 48.8° to 2.3° (Wide-Tele) |
| Minimum Working Distance | 10 mm to 1500 mm (Wide-Tele) |
| Aperture Range | F1.5 to F3.4 |
| Pan & Tilt | |
| Pan Range | 360°endless |
| Pan Speed | Pan Manual Speed: 0.1°-160°/s, |
| Pan Preset Speed: 240°/s | |
| Tilt Range | -15°-90° (Auto Flip ) |
| Tilt Speed | Tilt Manual Speed: 0.1°-120°/s, |
| Tilt Preset Speed: 200°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Power-off Memory | Support |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display | ON/OFF |
| Infrared | |
| IR irradiation distance | 150m |
| IR irradiation angle | Adjustable by zoom |
| Alarm | |
| Alarm Input | 2 |
| Alarm Actions | Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage |
| Input & Output | |
| Audio Input | 1 Mic in/Line in interface |
| Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% | |
| Audio Output | 1 Audio output interface |
| Line level, impedance: 600Ω | |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution | 2560 × 1440 |
| Main Stream | 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) |
| 50fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) | |
| 60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) |
| Third Stream | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) |
| 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264/MJPEG | |
| Third Stream: H.265/H.264/MJPEG | |
| ROI encoding | Support 4 areas with adjustable levels |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| No. of Simultaneous Users | Up to 20 users |
| Three-Stream | Support |
| Mini SD Card | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| Security Measures | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering |
| Hik-Connect | Support |
| Client GUI | |
| Camera Control | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display | Time: Week: Date, 6 formats on the Client |
| Client | Support iVMS-4200 |
| Web Browser | IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 + |
| General | |
| Menu Language | English |
| Power Supply | 24 VAC & Hi-PoE |
| Power Consumption | Max. 40W |
| Working Temperature/Humidity | -30 ℃-65℃(-22℉-149℉)(outdoor) |
| 90% or less | |
| Protection Level | IP66 standard (outdoor dome) |
| TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Mounting | Various mounting modes optional |
| Dimensions | Φ220×353.4mm (Φ8.66”×13.91”)(Outdoor) |
| Weight (approx.) | 4.5kg(9.92Ibs) |
| Mount Option | Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box |
Hikvision DS 2DE7430IW AE IP Speed Dome Kamera Pdf Dosyası826.77 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 4MP
