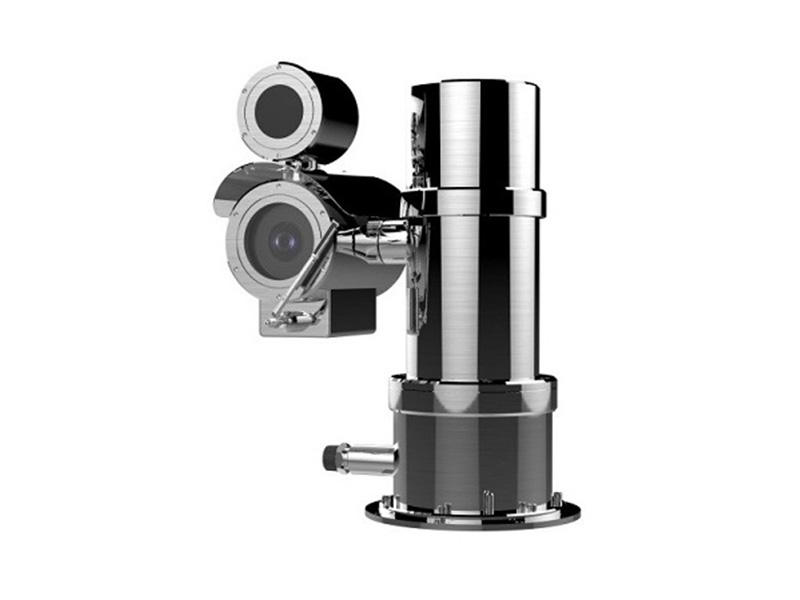

Hikvision DS 2DY9236I CWX W/316L IP Speed Dome Kamera

Özellikler

1/1.8" progressive scan CMOS
Up to 1920 × 1080@30fps resolution
Min. illumination:
Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
0 Lux with IR
36× optical zoom, 16× digital zoom
120 dB WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
Up to 150 m IR distance
Explosion-proof certificate: TUV 17 ATEX 8118, IECEx TUR 17.0049
Support H.265+/H.265 video compression

Teknik Özellikler

Camera
Effective Pixels	1920(H)x1080(V)
Minimum Aydınlatma	Color: 0.002 Lux @(F1.5, AGC ON)
	B/W: 0.0002 Lux @(F1.5, AGC ON)
	0 Lux with IR
White Balance	Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC	Auto/Manual
BLC	ON/OFF
HLC	Support
Buğu Giderme	Support
WDR	120dB
Objektif Zamanı	1/1 s to 1/30,000 s
Gündüz ve Gece	ICR
Dijital Yakınlaştırma	16×
Privacy Masking	24 privacy masks programmable
Otomatik Odak	Auto / Semi-automatic / Manual
Lens
Odaksal Uzunluk	5.6 mm to 205 mm, 36× optical zoom
Yakınlaştırma Hızı	Approx. 4.4 s (optical lens, wide-tele)
Görüş Açısı	Horizontal field of view: 59.8° to 2.0° (wide-tele)
	Vertical field of view: 35° to 1.1° (wide-tele)
	Diagonal field of view: 66.2° to 2.3° (wide-tele)
Minimum Çalışma Mesafesi	10 mm to 1500 mm (wide-tele)
Aralık Açıklık	F1.5 to F4.5
Pan & Tilt
Pan Hızı	Configurable, from 0.1°/s to 50°/s,
Pan Hızı	Preset speed: 50°/s
Tilt Hızı	Configurable, from 0.1°/s to 40°/s
Tilt Hızı	Preset Speed: 40°/s
Orantısal Yakınlaştırma	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Devriye	8 patrols, up to 32 presets for each patrol
Otomatik Tur	4 pattern scans, record time over 10 minutes for each scan
Power-off Memory	Support
Park Action	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Pozisyonlama Gösterimi	ON/OFF
Alarm
Alarm Girişi	7 Inputs
Alarm Çıkışı	2
Network
Ethernet	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution	1920×1080
Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),
	50fps (1920 × 1080, 1280 × 960, 1280 × 720);
	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),
	60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Alt Akış	50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288)
Alt Akış	60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240)
Third Stream	50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Third Stream	60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Üçlü Akış	Support
General
Power Supply	100 VAC to 240 VAC
Güç Tüketim	Max.: 100 W (Max. 15 W for IR)
Çalışma Sıcaklığı / Nem oranı	-40°C to 60°C (-40°F to 140°F)
Çalışma Sıcaklığı / Nem oranı	Humidity: ≤ 90%
Protection Level	IP68 Standard, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Boyutlar	440 mm × 258 mm × 510 mm (17.32" × 10.16" × 20.08")
Ağırlık (yaklaşık)	Approx. 36.7 kg (80.91 lb)
