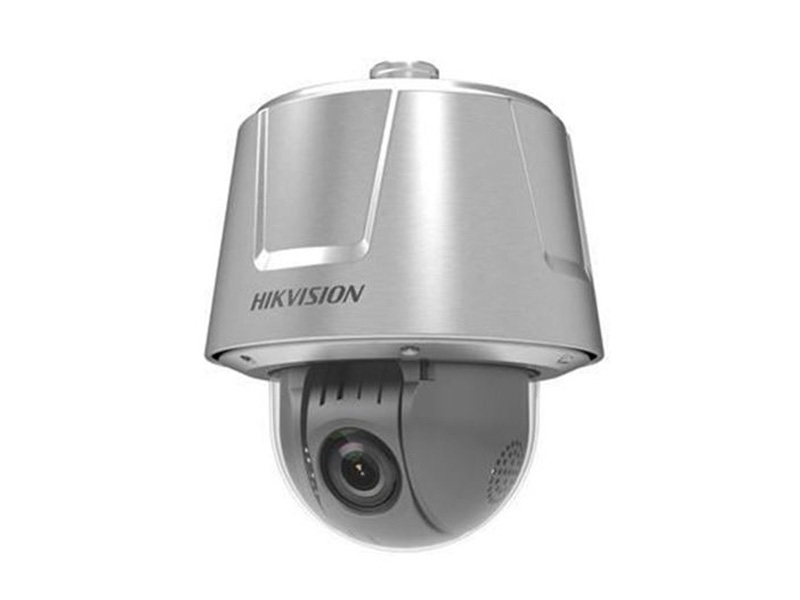

Hikvision DS 2DT6223 AELY IP HD Speed Dome Kamera

Özellikler

1/1.9’’ progressive scan CMOS
Up to 1920 × 1080 resolution, 23X optical zoom
120dB WDR, 3D DNR
IP67
316L stainless steel anti-corrosion materials design
WF-2, C5-M NEMA 4X anti-corrosion standards

Teknik Özellikler

Camera
Image Sensor	1/1.9" HD CMOS sensor
Effective Pixels	1920(H)x1080(V)
Minimum Illumination	F1.5, AGC On: Color: 0.002 lux, B/W: 0.0002 lux
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto/Manual
BLC	ON/OFF
HLC	Support
Smart defog	Support
WDR	120dB
Shutter Time	50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night	ICR
Digital Zoom	16X
Privacy Masking	24 privacy masks programmable; optional multiple colors and mosaics
Auto Focus	Auto / Semi-automatic / Manual
Lens
Focal Length	5.9-135.7mm, 23x
Zoom Speed	Approx.4.4s(Optical Wide-Tele)
Angle of View	59.8-3.0 degree (Wide-Tele)
Minimum Working Distance	10-1500mm(Wide-Tele)
Aperture Range	F1.5~F3.4
Pan & Tilt
Pan Range	360°endless
Pan Speed	Pan Manual Speed: 0.1°~300°/s, Pan Preset Speed: 540°/s
Tilt Range	-15°-90° (Auto Flip )
Tilt Speed	Tilt Manual Speed: 0.1°~240°/s, Tilt Preset Speed: 400°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Patrol	8 patrols, up to 32 presets per patrol
Pattern	4 patterns, with the recording time not less than 10 minutes per pattern
Power loss recovery	Support
Park Action	Call Preset/Patrol/Pattern/Auto Scan/Random Scan/Frame Scan after a pre-defined inactivity time interval
PTZ Position Display	ON/OFF
Freeze Frame	Support
Smart-tracking	Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Alarm
Alarm Input	7 Inputs
Alarm Output	2 channel relay output, with configurable alarm actions
Input & Output
Monitor Output	1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input	1 Mic in/Line in interface
	Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output	1 Audio output interface
	Line level, impedance: 600Ω
Network
Ethernet	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution	1920×1080
Main Stream	50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720)
Main Stream	60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Third Stream	50Hz:25fps(1280×960), 25fps (1280×720), 25fps(704×576), 25fps (352×288), 25fps (176×144)
Third Stream	60Hz:30fps(1280×960), 30fps (1280×720), 30fps(704×480), 30fps (352×240), 30fps (176×120)
Image Compression	H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile
ROI encoding	Support 24 areas with adjustable levels
Audio Compression	G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users	Up to 20 users
Three-Stream	Support
User/Host Level	Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures	User authentication (ID and PW),
	Host authentication (MAC address)
	IP address filtering
Client GUI
Date & Time Display	Time: Week: Date, 6 formats on the Client
Client	Support iVMS-4200
Web Browser	IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
General
RS-485 Protocols	HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language	English
Power Supply	24 VAC & Hi-PoE
Power Consumption	Max.60W
Working Temperature/Humidity	-40°C ~ 65°C (-40°F ~ 149°F)
Dimensions	Φ262(mm) ×330(mm)
Weight (approx.)	10kg (approx.)
