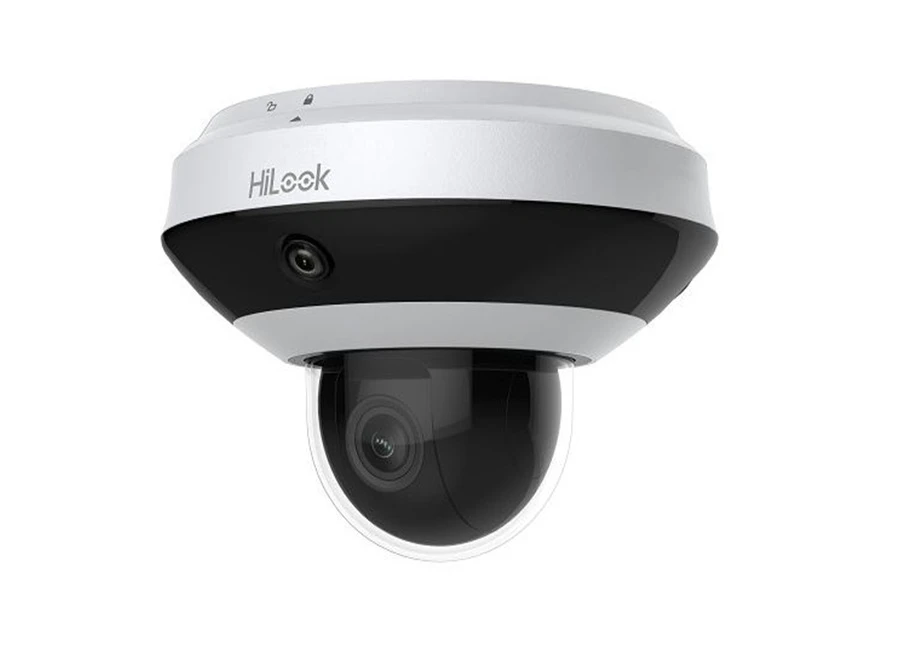

HiLook PTZ P332ZI DE3 IR IP Mini PTZ Kamera

Özellikler

System Functions

l 3-ch panoramic images in different directions and 1-ch close-up image
l PTZ linkage
l Up to 10 m IR radius

Panoramic Camera

l Three 1/2.8" progressive scan CMOS
l 3-ch 1920 × 1080@30fps resolution
l Horizontal FOV: 128.5° × 3

PTZ Camera

l 1/2.8" progressive scan CMOS
l Up to 1920 × 1080@30fps resolution
l 4× optical zoom, 8× digital zoom

Teknik Özellikler

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Effective Pixels	1920(H)x1080(V)
Signal System	PAL/NTSC
Minimum Illumination	Color: 0.05 Lux @(F2.0, AGC ON)
	B/W: 0.01 Lux @(F2.0, AGC ON)
	0 Lux with IR
White Balance	Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC	Auto/Manual
HLC	Support
WDR	DWDR
Shutter Time	50 Hz: 1/25 s to 1/30,000 s
Shutter Time	60 Hz: 1/30 s to 1/30,000 s
Day& Night	ICR
Digital Zoom	16×
Privacy Mask	24 programmable privacy masks
Auto Focus	Auto / Semi-automatic / Manual
Lens
Focal Length	2.8 mm to 12 mm, 4× optical zoom
Zoom Speed	Approx.5.4 s (optical, wide - tele)
Field of View	Horizontal field of view: 120° to 56.6° (wide - tele)
	Vertical field of view: 61.8° to 31.7° (wide - tele)
	Diagonal field of view: 149° to 65° (wide - tele)
Minimum Working Distance	10 mm to 1500 mm (wide-tele)
Aperture Range	F2.0 to F2.4
Pan & Tilt
Pan Range	Pan: 0~350°
Pan Speed	Pan speed: 0.1°/s to 30°/s (configurable), preset speed: 30°/s
Tilt Range	Tilt: 0°~90°
Tilt Speed	Tilt speed: 0.1°/s to 30°/s (configurable), preset speed: 30°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Power-off Memory	Support
Infrared
IR Distance	20m
Input & Output
Audio Input	1-ch audio input
Audio Output	1-ch audio output
Network
Max.Image Resolution	1920×1080
Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression	H.265/H.264/MJPEG
ROI encoding	Main stream supports eight fixed areas.
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Storage	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
User/Host	Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures	User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
General
Power Supply	12VDC, PoE+
Power Consumption	Max.24 W (Max. 6 W for IR)
Working Temperature/Humidity	Working Temperature: -10°C to 50°C (14°F to 122°F)
Working Temperature/Humidity	Working Humidity: ≤ 90%
Protection Level	TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material	Aluminum alloy, PC, PC+ABS
Dimensions	Φ 183 mm × 133 mm (Φ 7.20" × 5.24")
Weight (approx.)	Approx. 0.9 kg (1.98 lb)
