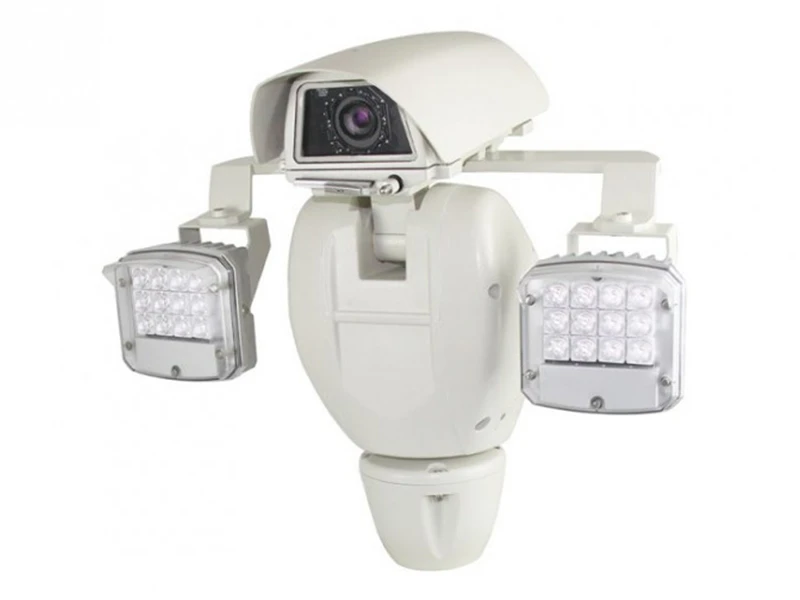

Neutron PTZ1182C IRA N IP HD Speed Dome Kamera

Özellikler

1080P Full and 720P HD excellent image quality
Powerful 30x optical zoom
Pan range: 360° endless, speed up to 100°/s
Up to 255 Presets, 8 Tour, 5 Pattern, 5 Auto scan
Support intelligent 3D positioning
IR Distance up to 100m,IP66
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Teknik Özellikler

Camera
Image Sensor	1/3" Exmor CMOS
Effective Pixels	1920(H) x 1080(V), 2 Megapixels
Scanning System	Progressive
Electronic ShutterSpeed	1/1 ~ 1/10,000s
Min. Illumination	Color: 0.05Lux @ F1.6, B/W: 0.005Lux @ F1.6
S/N Ratio	More than 50dB
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / DWDR(Digital WDR)
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Gain Control	Auto / Manual
Noise Reduction	2D / 3D
Privacy Masking	Up to 24 areas
Digital Zoom	16x
Video Output	BNC(1.0Vp-p/75Ω), PAL / NTSC
Lens
Focal Length	4.30mm ~ 129mm (30x Optical zoom)
Max Aperture	F1.6 ~ F5.0
Focus Control	Auto / Manual
Angle of View	H: 65.1° ~ 2.34°
Close Focus Distance	10mm ~ 1200mm
Video
Compression	H.264 / MJPEG
Resolution	1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/
Resolution	D1(704×576/704×480)/ CIF(352×288/352×240)
Frame Rate	Main Stream: 25/30fps @ 1080P/720P>
Frame Rate	Sub Stream: 25/30fps @ D1/CIF>
Bit Rate	H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF	ONVIF Profile S
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Pan/Tilt System
Pan Range	360° endless
Pan Speed	0.1° ~ 75°/sec
Tilt Range	-90° ~ 40°
Tilt Speed	0.1° ~40°/sec
Positioning Accuracy	±0.02°
Preset	255
Tour	8
Pattern	5
Auto Scan	5
Idle Motion	Support
3D Positioning	Support
Preset Auto-Calibration	Support
Remote P/T/Z Reset	Support
Wiper	Built-in
LED Infrared Light
IR Distance	100m
IR Wave Length	800~900nm
IR Emission Angle	≤30°
Auxiliary Interface
Memory Slot	Micro SD, Max 64GB
RS485	Duplex
Alarm	2/1 channel In/Out
General
Power Supply	AC 24V/5A
Power Consumption	≤100W
Working Environment	-40ºC ~ 60ºC / Less than 90% RH
Protection	IP66, All-metal aluminum alloy, 6000V anti-lightning surge
Weight	21Kg
