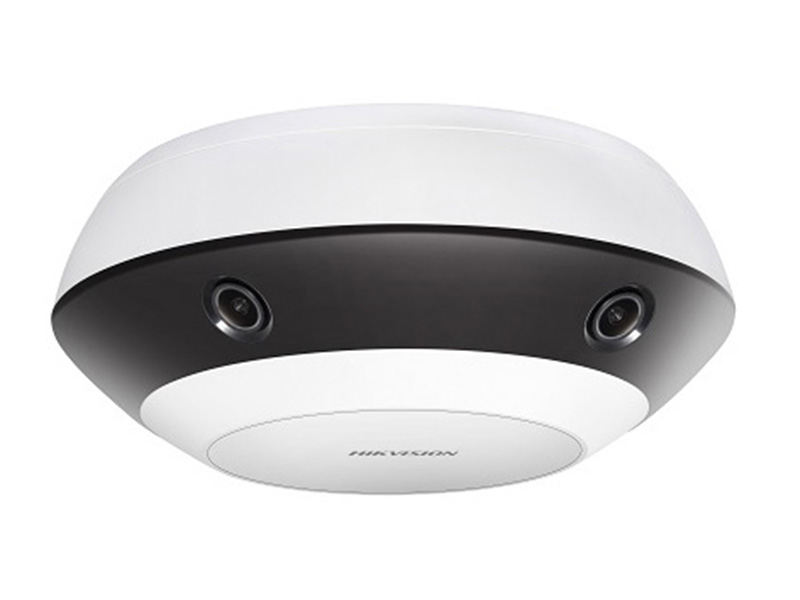

Hikvision DS 2PT3306IZ DE3 IP IR Speed Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" CMOS |
| Min. Illumination | 0.01Lux @(F1.2,AGC ON) , 0 Lux with IR ;0.028Lux @(F2.0,AGC ON) ,0 Lux with IR |
| Shutter time | 1/25 s to 1/100,000 s |
| Lens | 4mm (2.8mm, 6mm optional) @F2.0 Angle of view: 73.1° |
| Lens Mount | M12 |
| Adjustment Range | Pan: -30°-30°, Tilt: 0~80°, Rotation: 0-360° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | Digital WDR |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.264/MJPEG |
| H.264 code profile | Base Line Profile/Main Profile/High Profile |
| Video bit rate | 32Kbps~8Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Dual Stream | Yes |
| Image | |
| Max. Image Resolution | 1280x960 |
| Frame Rate | 50Hz: 25fps (1280 × 960), 25fps (1280 × 720),60Hz: 30fps (1280 × 960), 30fps (1280 × 720) |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC | Yes, zone configurable |
| 3D DNR | support |
| ROI | support |
| Network | |
| Network Storage | Micro SD/SDHC/SDXC card with ANR (up to 64G), NAS (Support NFS, SMB/CIFS) |
| Alarm Trigger | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Protocols | |
| General Function | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| System Compatibility | ONVIF (Profile S, Profile G),ISAPI |
| Interface | |
| Audio | Internal Microphone and Speaker |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 V DC ± 10%, PoE (802.3at) |
| Power Consumption | 5W MAX |
| Impact Protection | IK08 Protection Level |
| Weather Proof | IP66 |
| IR Range | 10 meters |
| Dimensions | 99.3×96.7×52.8 |
| Weight | 600 g (1.32 lbs) |
Hikvision DS 2PT3306IZ DE3 IP IR Speed Dome Kamera Pdf Dosyası646.37 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
