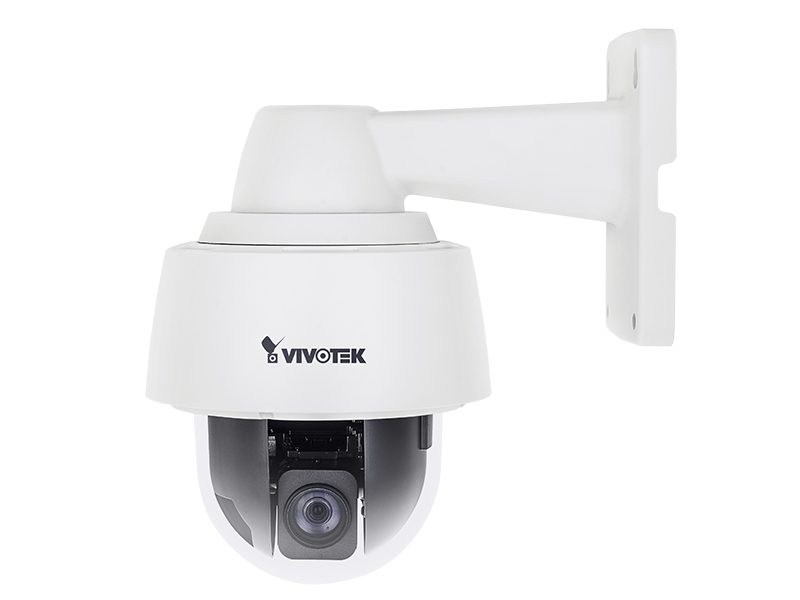

Vivotek SD9362 EHL IP HD Speed Dome Kamera
Özellikler
- H.265 Compression Technology
- 1080P Full HD CMOS Sensor
- 60 fps @ 1920x1080
- 30x Optical Zoom
- Removable IR-cut Filter for Day & Night Function
- 360° Continuous Pan and 220° Tilt
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Smart Stream II to Optimize Bandwidth Efficiency
- Weather-proof IP68-rated, Vandal-proof IK10-rated and NEMA4X Housing
- -40°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions
- Audio Detection for Instant Alerts
- Auto Tracking for Moving Objects
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Defog
- EIS
Teknik Özellikler
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 512MB |
| Camera Features | |
| Image Sensor | 1/3" Progressive CMOS |
| Maximum Resolution | 1920x1080 (2MP) |
| Lens Type | 30x Optical Zoom, Auto Focus |
| Focal Length | f= 4.3 ~ 129 mm |
| Aperture | F1.6 ~ F4.7 |
| Auto-iris | DC-iris |
| Field of View | 2° ~ 59° (Horizontal) |
| 2° ~ 45° (Vertical) | |
| 3° ~ 71° (Diagonal) | |
| Shutter Time | 1/8 sec. to 1/30,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.42 Lux @ F1.6 (Color) |
| 0.01 Lux @ F1.6 (B/W) | |
| Pan Speed | 0.05° ~ 450°/sec. |
| Pan Range | 360° endless |
| Tilt Speed | 0.05° ~ 450°/sec. |
| Tilt Range | 220° (-110° ~ +110°) |
| Preset Locations | 256 preset locations, 128 presets per tour |
| Pan/tilt/zoom Functionalities | 128x digital zoom (4x on IE plug-in, 32x built-in) |
| Auto pan mode | |
| Auto patrol mode | |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot |
| Seamless Recording | |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | H.265 & H.264: |
| 60 fps @ 1920x1080 | |
| MJPEG: | |
| 30 fps @ 1920x1080 | |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 53 dB |
| Dynamic Range | 110 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control; Smart Stream II |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (up to 24); Scheduled profile settings, EIS, 3DNR, defog, HLC |
| Audio | |
| Audio Capability | Two-way Audio (full duplex) |
| Compression | G.711, G.726 |
| Interface | External microphone input |
| External line output | |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ICMP, ARP, SSL, TLS, CIFS/SMB |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ-45) |
| *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. | |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Auto-Tracking | Auto-tracking on moving object |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card |
| File upload via HTTP, SMTP, FTP, NAS server and SD card | |
| General | |
| Connectors | RJ-45 cable connector for Network/PoE connection |
| Audio input | |
| Audio output | |
| 24V DC / 24V AC power input | |
| Digital input*4 | |
| Digital output*2 | |
| RS-485 | |
| LED Indicator | System power and status indicator |
| Power Input | 24V DC |
| 24V AC | |
| 60W UPoE | |
| Power Consumption | Max. 48/26 W (Heater on/off) |
| Dimensions | Ø 162 x 221 mm |
| Weight | 2.95 kg |
| Casing | Weather-proof IP68-rated, Vandal-proof IK10-rated, and NEMA 4X-rated mated housing |
| Safety Certifications | CE, FCC Class A, VCCI, C-tick, UL, NEMA 4X |
| Operating Temperature | Starting Temperature: -40°C ~ 55°C (-40°F ~ 131°F) |
| Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F) | |
| Humidity | 90% |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7 |
| Web Browser | Mozilla Firefox 7~43 (streaming only) |
| Internet Explorer 10/11 | |
| Other Players | VLC: 1.1.11 or above |
| Quicktime: 7 or above | |
| Included Accessories | |
| CD | User's manual, quick installation guide, Installation Wizard 2, VAST |
| Others | Wall mount bracket, screws, waterproof connectors, quick installation guide, alignment sticker, L-wrench, software CD, desiccant bags, I/O combo cable |
Video
Vivotek SD9362 EHL IP HD Speed Dome Kamera Pdf Dosyası694.52 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 2MP (1080P)
Irled : Var
