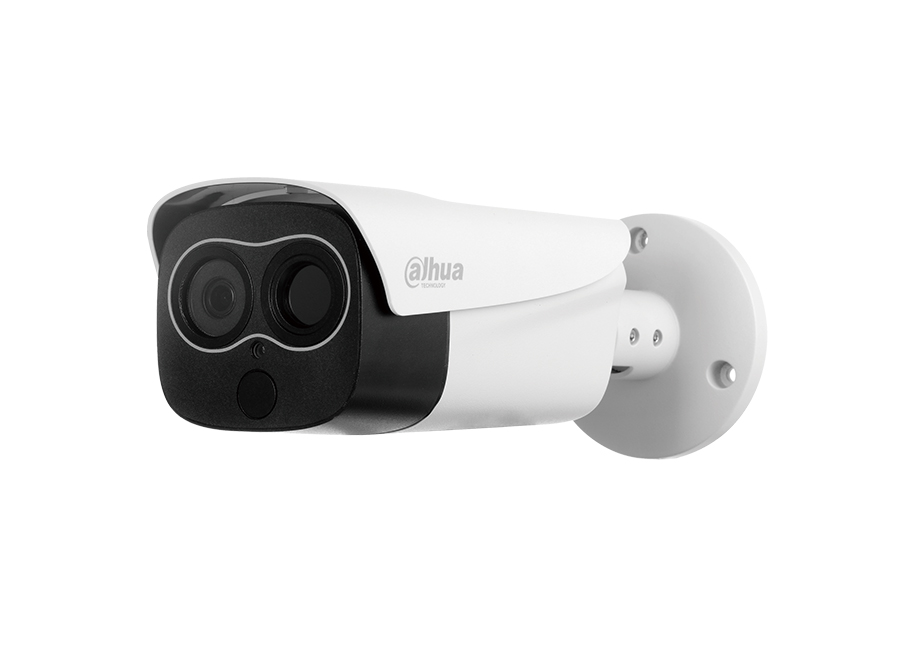

Dahua TPC BF2120 T IP Termal Mini Hybrid Bullet Kamera

Özellikler

160x120 VOx uncooled thermal sensor technology
Athermalized Lens (thermal camera), Focus-free
1/2.8” 2Megapixel progressive scan Sony cmos
Support ROI, Motion Detection, Color Palettes
Support temperature measurement
Support Fire detection & alarm
Built-in 2/1 alarm in/out
Micro SD memory, IP67, PoE

Teknik Özellikler

Thermal Camera
Image Sensor	Uncooled VOx Microbolometer
Effective Pixels	160(H)x120(V)
Pixel Size	12um
Thermal Sensitivity (NETD)	<50mK@f/1.1
Spectral Range	7~14um
Image Setting	Brightness/Sharpness/ROI/AGC/FFC/3D DNR
Color Palettes	14(Whitehot/Blackhot/Ironrow/Icefire/
	Fusion/Rainbow/Globow/Iconbow1/
	Iconbow2 .etc)
Thermal Lens
Lens Type	Fixed
Focus Control	Athermalized, Focus-free
Focal Length	1mm
Effective Distance①	D②: 60m
Man(1.8m*0.5m)	R③: 20m
Man(1.8m*0.5m)	I ④: 10m
Effective Distance	D: 200m
Vehicle(2.3m*2.3m)	R: 60m
Vehicle(2.3m*2.3m)	I: 30m
Angle of View	H: 56°
Angle of View	V: 44°
Visible Camera
Image Sensor	1/2.8" 2M CMOS
Effective Pixels	1944(H)x1092(V)
Electronic Shutter Speed	1/1 ~ 1/30,000s
Min. Illumination	Color: 0.005Lux@F1.8; B/W: 0.0005Lux@F1.8; 0Lux (IR on)
IR Distance	35m
IR On/Off Control	Auto/Manual
IR LEDs	1
Visible Lens
Focal Length	4mm
Max Aperture	F2.0
Angle of View	H: 86.2°
Angle of View	V: 45.9°
Temperature Measurement
Measurement Range	-20°C ~+450°C
Measurement Accuracy	Low temperature : -20°C ~+150°C, Max (±5°C, ±5%);
Measurement Accuracy	High temperature : +150°C ~+450°C, Max ±8%;
Measurement Mode	Spot/Line/Area
Measurement Rule	Spot: 12
	Line: 12
	Area：12
	Support 12 rules simulaneously
Video
Compression	H.264/MJPEG
Frame Rate	Main Stream:
	Thermal: 1280*960 (default)/720P@1~25/30fps
	Visible: 1080P (default)/720P@1~25/30fps
	Sub Stream:
	Thermal: 640480 (default)/ 320240@1~25/30fps
	Visible: CIF(default)/D1@1~25/30fps
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 640 ~ 8192Kbps
Day/Night	Auto(ICR)/Color/B/W
BLC Mode	BLC/HLC/WDR
White Balance	Auto, Manual
Noise Reduction	Ultral DNR
Motion Detetion	Off/On (4 zone, Rectangle)
Region of Interest	Off/On (4 zone)
Electronic Image Stabilization (EIS)	NA
Defog	Off/On
Flip	180°
Mirror	Off/On
Privacy Masking	Off/On (4 area, Rectangle)
Audio
Compression	G.711a/G.711Mu/AAC
Intelligence
IVS	Tripwire, Intrusion, Object Abandon/Missing
Advanced Intelligent Functions	Fire detection & alarm, Temperature measurement
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Interoperability	ONVIF Profile S & G, PSIA, CGI
Streaming Method	Unicast/Multicast
Max. User Access	10 Users/20 Users
Edge Storage	micro SD (128GB) Memory status display (Normal/Error/Active/ Formatting/Lock),
Edge Storage	NAS (Network Attached Storage), Local PC for instant recording
Web Viewer
Management Software	Smart PSS, DSS
Smart Phone	Android, IOS
Certifications
Certification	CE (EN 60950:2000) FCC (FCC Part 15 SubpartB )
Interface
Video Interface	1.0Vp-p/75Ω, PAL/NTSC (HDCVI Optional)
Audio Interface	In/Out 1/1
RS485	Support
Alarm	2/1 In/Out
Electrical
Power Supply	DC 12V/PoE
Power Consumption	12W (IR on), 9W(IR off)
Environmental
Operating Condition	-30°C ~ +55°C (-22°F ~ +131°F)/Less than 95% RH
Operating Condition	* Start up should be done at above -30°C (-22°F)
Strorage Conditions	-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH
Ingress Protection	IP67
Construction
Casing	Metal
Dimensions	238.6mm × 90.4mm× 90.4mm (9.39" x 3.56" x 3.56")
Dimensions	(With bracket)
Weight	＜ 1Kg
