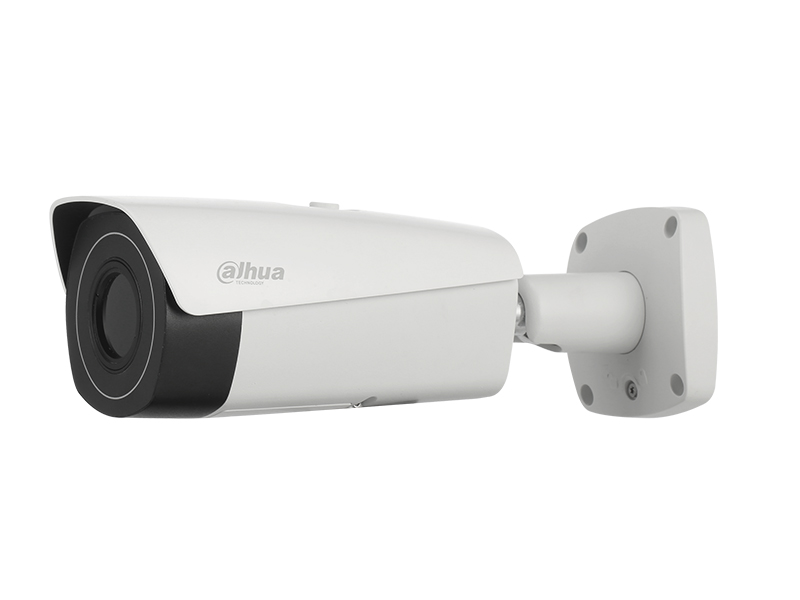

Dahua TPC BF5600 B IP Bullet Termal Kamera
Özellikler
Teknik Özellikler
| Thermal Camera | |||||
| Image Sensor | Uncooled VOx Microbolometer | ||||
| Effective Pixels | 640(H)x512(V) | ||||
| Pixel Size | 17um | ||||
| Thermal Sensitivity (NETD) | <40mK@f/1.0 | ||||
| Spectral Range | 7~14um | ||||
| Image Setting | Brightness/Sharpness/ROI/AGC/FFC/3D DNR | ||||
| Color Palettes | 14(Whitehot/Blackhot/Ironrow/Icefire/ Fusion/Rainbow/Globow/Iconbow1/Iconbow2 .etc) | ||||
| Thermal Lens | |||||
| Lens Type | Fixed | ||||
| Focus Control | Athermalized, Focus-free | ||||
| Focal Length | 7.5mm | 13mm | 19mm | 25mm | 35mm |
| Angle of View | H: 92° V: 70.6° | H: 48.4° V: 38.6° | H: 31.6° V: 25.6° | H: 24.6° V: 19.8° | H: 17.2° V: 13.8° |
Effective Distance①
Man(1.8m*0.5m) | D②: 290m R③: 70m I ④: 40m | D: 450m R: 110m I: 60m | D: 640m R: 160m I: 80m | D: 1000m R: 250m I: 125m | D: 1300m R: 320m I: 160m |
Effective Distance
Vehicle(2.3m*2.3m) | D: 880m R: 220m I: 110m | D: 1300m R: 350m I: 180m | D: 2000m R: 500m I: 250m | D: 3000m R: 720m I: 360m | D: 4000m R: 1000m I: 500m |
| Compression | H.264/MJPEG | ||||
| Frame Rate | Main Stream: 1280*1024 (default)/720P @1 ~ 25/30fps | ||||
Sub Stream: 640*512 (default)/320*256 @1 ~ 25/30fps | |||||
| Bit Rate Control | CBR/VBR | ||||
| Bit Rate | H.264: 640 ~ 8192Kbps | ||||
| Motion Detetion | Off/On (4 zone, Rectangle) | ||||
| Region of Interest | Off/On (4 zone) | ||||
| Electronic Image Stabilization | NA | ||||
| (EIS) | |||||
| Digital Zoom | 24x | ||||
| Flip | 180° | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off/On (4 area, Rectangle) | ||||
| Audio | |||||
| Compression | G.711a/G.711Mu/AAC | ||||
| Intelligence | |||||
| IVS | Tripwire, Intrusion, Object Abandon/Missing | ||||
| Advanced Intelligent Functions | Fire detection & alarm | ||||
| Network | |||||
| Ethernet | RJ-45 (10/100Base-T) | ||||
| Protocol | |||||
| Interoperability | ONVIF Profile S & G, PSIA, CGI | ||||
| Streaming Method | Unicast/Multicast | ||||
| Max. User Access | 10 Users/20 Users | ||||
| Edge Storage | micro SD (128GB)
Memory status display (Normal/Error/Active/Formatting/Lock), NAS (Network Attached Storage), Local PC for instant recording | ||||
| Web Viewer | |||||
| Management Software | SmartPSS, DSS | ||||
| Smart Phone | Android, Ios | ||||
| Certifications | |||||
| Certification | CE (EN 60950: 2000) FCC (FCC Part 15 SubpartB ) | ||||
| Interface | |||||
| Video Interface | 1.0Vp-p/75Ω, PAL/NTSC (HDCVI Optional) | ||||
| Audio Interface | Input/Output 1 Input / 1 Output | ||||
| RS485 | Support | ||||
| Alarm | 2/1 In/Out | ||||
| Electrical | |||||
| Power Supply | AC 24V/DC 12V/PoE | ||||
| Power Consumption | Max. 11W | ||||
| Environmental | |||||
| Operating Condition | -40°C ~ +60°C (-40°F ~ +140°F)/Less than 95% RH * Start up should be done at above -40°C (-40°F) | ||||
| Strorage Conditions | -40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH | ||||
| Ingress Protection | IP67 | ||||
| Construction | |||||
| Casing | Metal | ||||
| Dimensions | 291mm× 103mm× 97mm (11.46" x 4.06" x 3.82") | ||||
| Net Weight | 1.37Kg (3.02 lb) | ||||
| Gross Weight | 1.7Kg (3.75 lb) | ||||
Dahua TPC BF5600 B IP Bullet Termal Kamera Pdf Dosyası672.75 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
