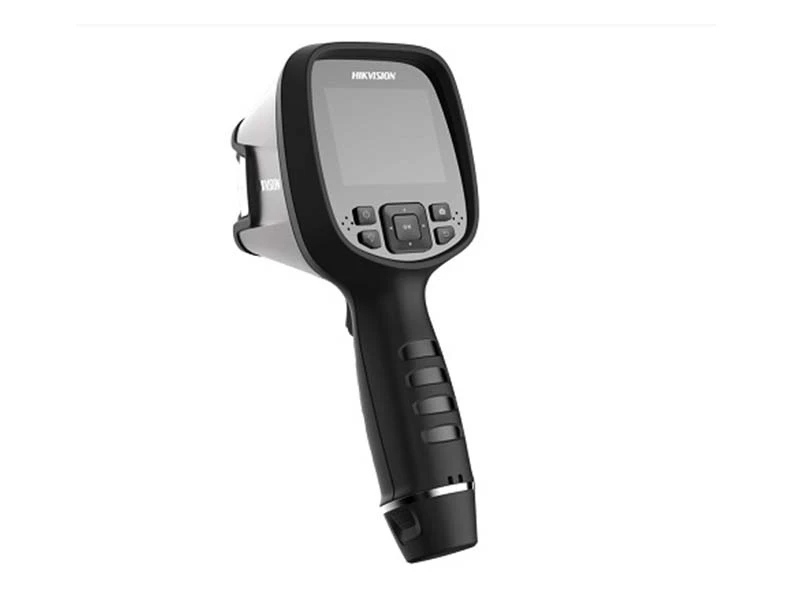

Hikvision DS 2TP03 15VM W IP Termal Kamera
Özellikler
- 384 × 288 resolution (thermal), and 1080P resolution (optical)
- DDE (Digital Detail Enhancement) technique
- 3D DNR, adaptive AGC (Automatic Gain Control)
- 320× 240 resolution 3.5’’ LCD touch display
- Built-in rechargeable Li-ion battery
- Up to four hours continuous running
Teknik Özellikler
| Thermal Module | |
| Max. Resolution | 384*288 |
| Detector Pitch | 17um |
| Response Wavebond | 8um to 14um |
| NETD | < 40mk(@25°C,F#=1.0) |
| Lens (focal length) | 15mm |
| MRAD | 1.13 mrad |
| Field of View | 25° × 19 ° |
| F number | 1.0 |
| Optional Lens | 2X Zoom Ratio Lens (FOV: 12° × 10° ) |
| 3X Zoom Ratio Lens (FOV: 7° × 5.6° ) | |
| 1/2X Zoom Ratio Lens (FOV: 46° × 37.6° ) | |
| Optical Module | |
| Max. Resolution | 1920 × 1080 |
| View (Picture) Resolution | 1920 × 1080 |
| Image Display | |
| Monitor | 320× 240 resolution 3.5’’ LCD touch display |
| Pallets | Black hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain |
| System | |
| Hot Track | Support |
| Storage | Built-in memory module (64G) |
| Record Video | Support on-board video recording |
| Digital Zoom | 2× , 4× |
| Capture Snapshot | Thermal/Optical/Fusion image |
| WIFI | Support |
| Thermography | |
| Rules | Max. Temperature; Min. Temperature; Center Temperature; |
| Custom Point/Line/Frame Thermometry | |
| Thermometry Range | -20 ° C to 650 ° C (-4 ° F to 1202 ° F) |
| Thermometry Accuracy | ± 2 ° C or ± 2% (Larger Value) |
| Power Supply | |
| Battery Type | Lithium Battery |
| Battery Operating Time | Up to five hours continuous running (with GPS function and |
| Wi-Fi hot spot function off) | |
| Battery Capacity Display | Support |
| Functions | |
| LED Light Supplement | Support |
| Wi-Fi | Support |
| Hot Track | Support |
| AGC | Support (Auto AGC and Manual AGC) |
| Laser Light | Support (Auto AGC and Manual AGC) |
| Picture in Picture | Support (Thermal View in Optical View & Optical View in |
| Thermal View) | |
| Fusion | Support (Thermal View and Optical View Combined) |
| General | |
| Power | 12 V DC/1.5A, 5V DC/2A (Charging via USB) |
| Power Consumption | Approx. 5 W (Wi-Fi On), 4.2 W (Wi-Fi Off) |
| Working Temperature/ Humidity | -20 ° C to 50 ° C (-4 ° F to 122 ° F) |
| Drop Test Height | 2 m (6.56 feet) |
| Protection Level | IP54 |
| Dimensions | 281 mm × 117 mm × 135 mm (11.1 ″ × 4.6 ″ × 5.3 ″) |
| Weight | Approx. 1000 g (2.21 lb) |
Hikvision DS 2TP03 15VM W IP Termal Kamera Pdf Dosyası928.84 KB
