Açıklama

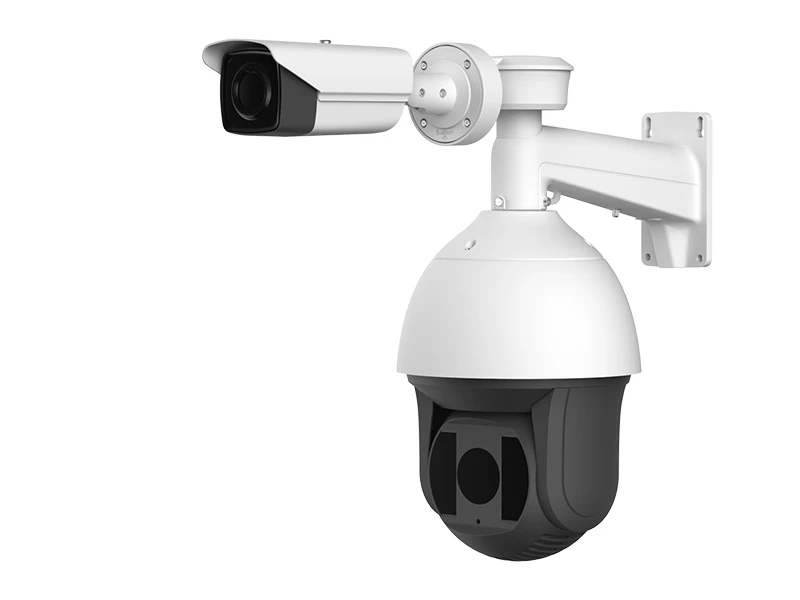

Hikvision DS X3636 15A IP Termal Kamera
Özellikler
- Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 40mk (0.05° C/32.09° F)
- 384*288 resolution, high sensitivity sensor, support contrast adjustment
- 3D DNR, 15 palettes of color adjustable, image detail enhancement
- Speed Dome: Support 36x optical zoom with over 200m IR distance
Smart Function
- Smart analysis and linkage, no VCA Server configuration requirement
- Automatic master-slave Tracking: Stable and continuous tracking
- Manual master-slave tracking: Select any region of fixed camera in the client software, the speed dome automatically adjusts PTZ to centralize the selected region
- Master-slave Linkage Rules: Intrusion Detection, Line Crossing Detection
- 30 Targets Simultaneously Trackable. Up to 110 m effective detecting distance (to human targets)
- Multi-tracking targets and auto target switch, with less than 1s response time
- Tracking duration, sensitivity and target type can be configured
Teknik Özellikler
| Thermal Module | |
| Max. Resolution | 384*288 |
| Response Wavebond | 8um to 14um |
| NETD | < 40mk(@25°C,F#=1.0) |
| Lens (focal length) | 15mm |
| MRAD | 1.13 mrad |
| Field of View | 24.55°x 18.54° |
| Min. Focusing Distance | 2.5m |
| F number | 1.0 |
| Optical Camera | |
| Image Sensor | 1/1.9" Progressive Scan CMOS |
| Max. Image Resolution | 1920 × 1080 |
| Min. Illumination | 50 IRE; Color: 0.002Lux @ (F1.5, AGC ON), B/W: 0.0002Lux @ (F1.5, AGC ON), 0 Lux with IR |
| Focal Length | 5.7-205.2mm, 36x |
| Zoom speed | Approx. 7.4s (Optical, Wide-Tele) |
| Digital Zoom | 16X |
| Field of View | 58.7° - 2.0° (Wide-Tele) |
| Min. Working Distance | 10-1500mm(Wide-Tele) |
| Aperture Range | F1.5-F4.5 |
| Focus Mode | Auto / Semiautomatic / Manual |
| WDR | 120dB |
| AGC | Auto/Manual |
| Shutter Speed | 50 Hz: 1s to 30,000s; 60Hz: 1s to 30,000s |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium |
| Lamp | |
| Day & Night | IR Cut Filter |
| Privacy Mask | 24 programmable privacy masks |
| Optical Defog | Support |
| Enhancement | 3D DNR, EIS, HLC/BLC, SVC |
| System Functions | |
| Click Linkage | Support |
| Tracking Mode | Manual/Auto |
| Multi-targets Tracking | Up to 30 Targets Simultaneously; with up to 110 m effective detecting distance (to human targets) and 882 m effective detecting distance (to vehicle targets) |
| Switch Time | Less than 1s |
| Master-slave Linkage Rules | Support Intrusion Detection, Line Crossing Detection |
| Tracking Time Configuration | Support |
| Sensitivity Configuration | Support |
| PTZ | |
| Pan Speed | Manual Speed: 0.1°/s to 160°/s |
| Preset: 240°/s | |
| Tilt Speed | Manual Speed: 0.1° /s to 120° /s |
| Preset: 200° /s | |
| Infrared | |
| IR Distance | Up to 200m |
| IR IntenSity and Angle | Auto Adjust |
| Network | |
| Main Stream | Optical: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Optical: 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720) | |
| Thermal: 50fps (384×288) | |
| Sub Stream | Optical: 50Hz: 25fps (704 × 576, 352 × 288, 176 × 144) |
| Optical: 60Hz: 30fps (704 × 480, 352 × 240, 176 × 120) | |
| Thermal: 50fps (384×288) | |
| Third Stream | Optical: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 352 × 288, 176 × 144) |
| Optical: 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 352 × 240, 176 × 120) | |
| Thermal: 50fps (384×288) | |
| Video Compression | Thermal: H.264 (Baseline/Main/High Profile) /MJPEG/H.265, H.264+, H.265+ |
| Optical: H.264 (Baseline/Main/High Profile)/MJPEG/MPEG4 | |
| Audio Compression | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM |
| Integration | |
| Alarm Linkage | Preset, Patrol, Pattern, Micro SD/SDHC Card Recording, Aux Output, Notification on Client, FTP Uploading, Sending Email, Triggering Channel |
| Alarm Input | Optical: 7–ch |
| Thermal: 2-ch inputs (0-5vDC) | |
| Alarm Output | 2–ch |
| Audio Input | 1 LINE_IN Input and MIC Input; Peak: 2 to 2.4V [p-p]; Impedance: 1KΩ±10% |
| Audio Output | 1; Linear Level; Impedance: 600Ω |
| Onboard Storage | Built-in Micro SD/SDHC/SDXC Card Slot, Up to 128GB, Support Manual/Alarm Recording |
| Ethernet | 10 Base-T/100 Base-TX. RJ45 Connector |
| Analog Video Output | 1.0V [p-p]/75Ω, PAL/NTSC/BNC |
| RS485 | Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive |
| General | |
| Movement Range | Network Camera (Universal Joint Module): Pan: 90°, Tilt: -45° to 45° |
| Speed Dome: Pan: 360°, Tilt: -20° to 90°, Auto Reverse | |
| Power | 24 V AC/5A, |
| Max. consumption: 80W (with IR and heater on) | |
| IR Light consumption: Max. 24 W, and Heater consumption: Max. 15 W | |
| Menu Language | English |
| Working Temperature/ Humidity | From -40 ° C to 65 ° C (-40 ° F to 149 ° F); Humidity: 90% or Less |
| Mount | wall mount |
| Protection Level | IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Dimensions | 956 mm × 382.5mm × 267mm (37.64” × 15.06” × 10.51”) |
| Weight | 11.09kg (Approx. 24.4 lbs) |
| Smart Functions Range | |
| Lens (focal length) | 15mm |
| VCA range (Vehicles) | 882m |
| VCA range (humans) | 110m |
| Temperature measurement (Object:2*2m) | 351m |
| Temperature measurement (Object:1*1m) | 177m |
| Fire Detection (Object:2× 2 m) | 882m |
| Fire Detection (Object:1× 1 m) | 441m |
| Wide Range Coverage | |
| Lens (focal length) | 15mm |
| Detection range (Vehicles) | 1353m |
| Detection range (Humans) | 441m |
| Recognition range (Vehicles) | 338m |
| Recognition range (Humans) | 110m |
| Identification range (Vehicles) | 169m |
| Identification range (Humans) | 55m |
Teknik Kısa
Irled : Var
