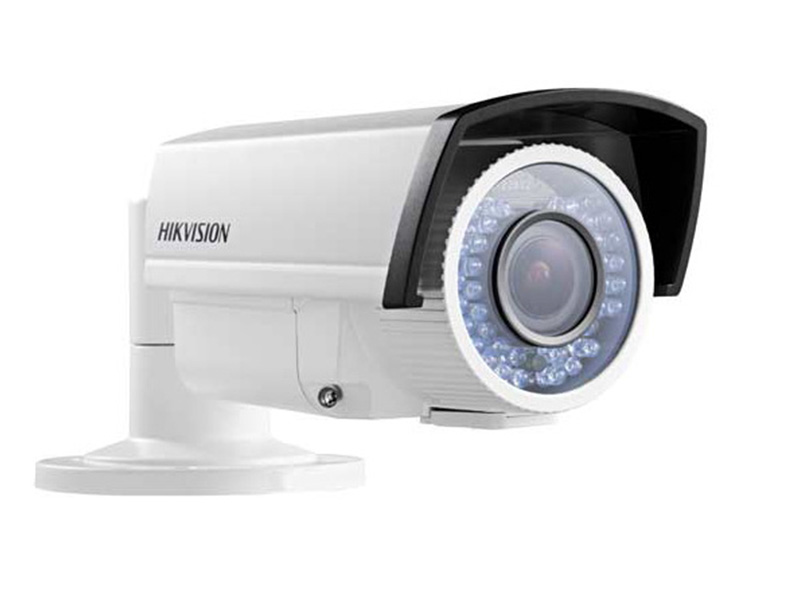

Hikvision DS 2CE16C5T AVFIR3 AHD Bullet Kamera

Camera
Image Sensor	1.27MP CMOS Image Sensor
Signal System	PAL/NTSC
Effective Pixels	1305(H)x977(V)
Min. Illumination	0.001 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time	1/25(1/30) s to 1/50,000 s
Lens	2.8-12mm @ F1.4
Lens	Angle of view: 92° - 29.3°
Lens Mount	φ14
Adjustment Range	Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Day& Night	IR cut filter with auto switch
Video Frame Rate	720p@25fps/720p@30fps
HD Video Output	1 Analog HD output
Synchronization	Internal Synchronization
CVBS Output	1Vp-p Composite Output(75Ω/BNC)
S/N Ratio	More than 62 dB
Up the Coax	Support
Menu
Automatic Exposure	Globe AE/DWDR
Auto Gain	Low/Middle/High/Off
D/N Mode	Color/ BW/ EXT
Auto White Balance	Auto / Manual
Private Mask	On/Off, maximum 8 zones
Motion Detection	On/Off, maximum 4 zones
AGC	Support
Language	English/Chinese
Function	Digital Wide Dynamic Range, 3D Digital Noise Reduction, Sharpness, Brightness, Digital Zoom, Mirror
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 90% or less (non-condensing)
Power Supply	12 VDC±15%
Power Supply	-A: 12 VDC±15%, 24 VAC±15%
Power Consumption	Max. 5W
Power Consumption	-A: Max. 7W
Weather Proof	IP66
IR Range	Up to 40m
Communication	Up the coax
Communication	Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
Dimension	105 × 86.9 × 267.2mm(φ 4.13” x 3.42” x 10.52”)
Weight	1200 g
