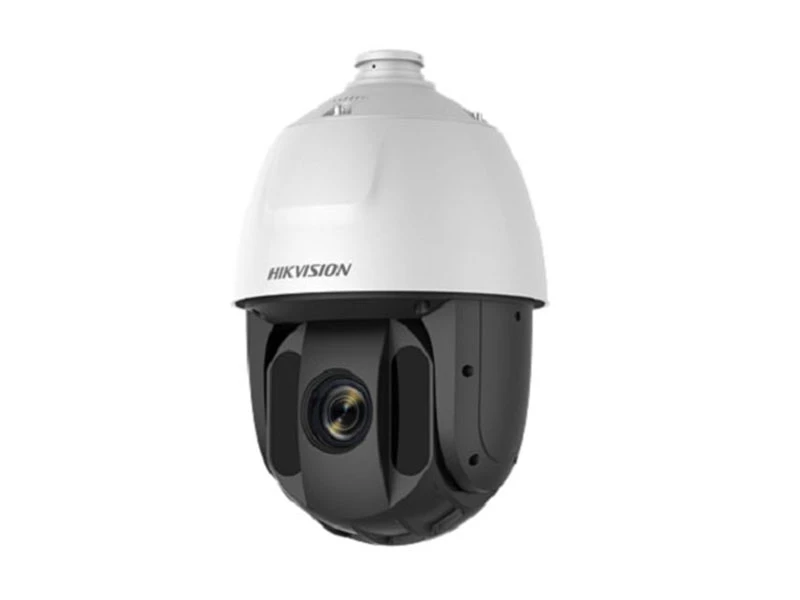

Hikvision DS 02AE5232TI AC AHD Speed Dome Kamera
Özellikler
- 1/2.8" HD progressive scan CMOS
- 1920 × 1080 resolution
- 32× optical zoom, 16× digital zoom
- 120 dB true WDR (Wide Dynamic Range)
- Up to 150 m IR distance
- 3D intelligent positioning
- Switchable TVI/AHD/CVI/CVBS video outputs
Teknik Özellikler
| Camera | |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) |
| B/W: 0.001 Lux @(F1.6, AGC ON) | |
| 0 lux with IR | |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| WDR | DWDR |
| Shutter Time | PAL: 1-1/10,000s |
| NTSC: 1-1/10,000s | |
| Day& Night | ICR |
| Digital Zoom | 16x |
| Lens | |
| Focal Length | 4.8 mm to 153 mm, 32× optical |
| Zoom Speed | Approx. 5.6 s (optical, wide to tele) |
| Angle of View | Horizontal field of view: 55.6° to 2.04° (wide to tele) |
| Vertical field of view: 32.4° to 1.14° (wide to tele) | |
| Diagonal field of view:63° to 2.34° (wide to tele) | |
| Minimum Working Distance | 10-1500mm (Wide-Tele) |
| Aperture Range | F 1.2 to F 4.4 |
| Pan & Tilt | |
| Pan Speed | Pan manual speed: 0.1° to 120°/s |
| Pan preset speed: 120°/s | |
| Tilt Speed | Tilt manual speed: 0.1° to 80°/s |
| Tilt preset speed: 80°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 256 |
| Patrol | 10 patrols, up to 32 presets per patrol |
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
| Power loss recovery | Support |
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
| PTZ Position Display | ON/OFF |
| Infrared | |
| IR irradiation angle | Adjustable by zoom |
| General | |
| RS-485 Protocols | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Menu Language | English |
| Power Consumption | Max. 30 W (IR:10 W) |
| Working Temperature/Humidity | -30 °C-65°C(-22°F-149°F) |
| 90% or less | |
Hikvision DS 02AE5232TI AC AHD Speed Dome Kamera Pdf Dosyası869.39 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
