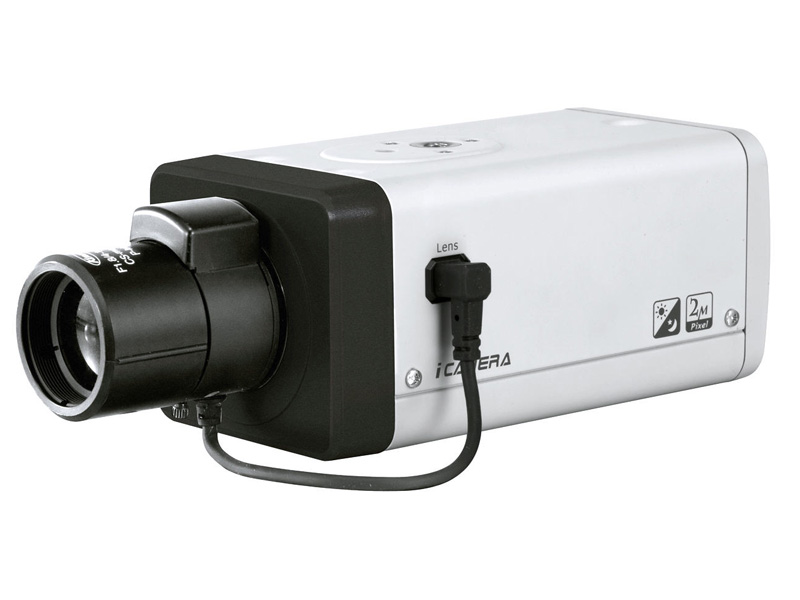

Dahua DH HDC HF3200 HD SDI Box Kamera
Özellikler
Teknik Özellikler
| Model | DH-HDC-HF3200P | DH-HDC-HF3200N |
| Camera | ||
| Image Sensor | 1/3" 2Megapixe Exmor CMOS | |
| Effective Pixels | 1920(H) x1080(V) | 1920(H) x1080(V) |
| Electronic Shutter | Auto/Manual(1/3~1/10000s) | Auto/Manual(1/4~1/10000s) |
| Image Resolution | 25fps@1080p(1920×1080)/720p(1280×720); | 30fps@1080p(1920×1080)/
720p (1280×720); |
| 50fps@720P(1280×720) | 60fps @ 720P(1280×720) | |
| Min. Illumination | Color: 0.1Lux/F1.2, B/W: 0.01Lux/F1. 2 | |
| S/N Ratio | >52dB | |
| Video Output | 1Vp-p Composite Output (75Ω/BNC) | |
| HD-SDI Video Output | 1ch HD-SDI high-definition video(SMPTE 292M standard) | |
| Camera Features | ||
| OSD | English, Chinese(Simplified/Traditional) | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / DWDR | |
| White Balance | Auto/ Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | 2D | |
| Picture Adjustment | ||
| Lens | ||
| Lens Type | Manual / Auto iris (DC) | |
| Mount Type | C / CS | |
| Auxiliary Interface | ||
| RS485 | 1 Port | |
| General | ||
| Power Supply | AC24V±10% / DC12V±10% | |
| Power Consumption | Max 8.5W | |
| Working Environment | -10 ºC ~+60 ºC, 10%~90% | |
| Dimensions(W×D×H) | 70mm×149.5mm×63.2mm | |
| Weight | 0.65Kg | |
