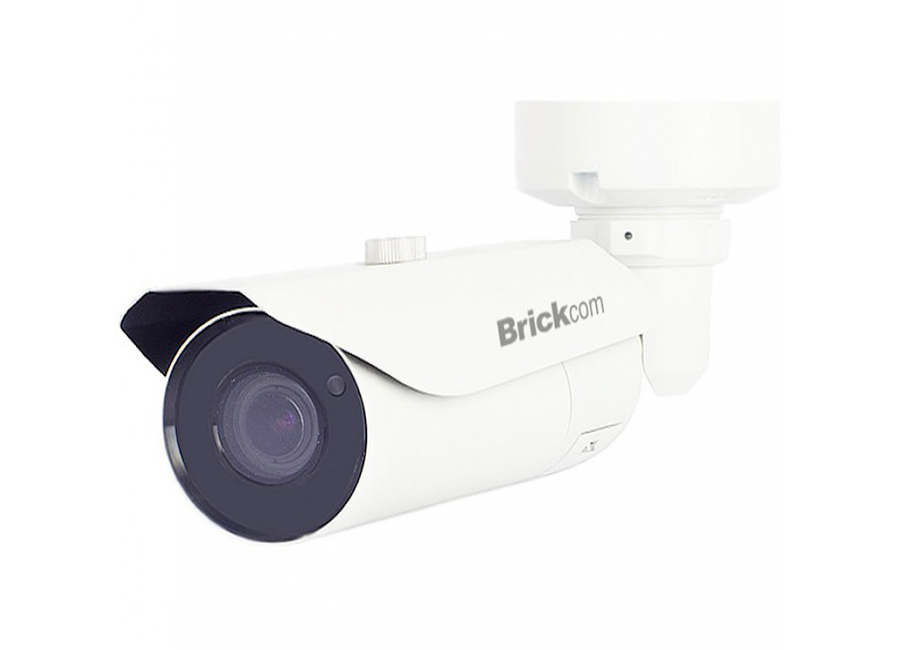

Brickcom OB H200Np WDRPro H265 IP Bullet Kamera
Özellikler
- 2 Megapixel Sony IMX290LQR-C Starvis Outdoor Bullet Camera
- H.265+ Video Compression Codec
- Real Time Streaming (2M @ 60fps Streaming)
- Embedded IVA Feaures (Illegal Parking, Abnormal Speed, Perimeter Detection, Single/Double Virtual Fences, SingleMulti Loitering Detection, Object Left Detection , Object Removed Detection, Converse Detection)
- P-Iris Smart Focus Lens
- Built-in Smart IR Illuminators, Effective up to 50 Meters
- 140dB True WDR
- Weather-Proof IP67 Class
- Built-in Micro SD/SDHC/SDXC Max.256G Memory Card Slot
Teknik Özellikler
| CAMERA FEATURES | |
| Imaging Device | 1/2.8" Sony IMX290LQR-C Starvis CMOS |
| CPU & Ram | 1000Mhz. ARM CPU / 256MB |
| Total Pixels | 2.18 Megapixel 1952(H) x 1116(V) Pixel |
| Effective Pixels | 2 Megapixel 1920(H) x 1080(V) Pixel |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.0006 Lux (F1.2 50IRE), B/W : 0.0005 Lux (F1.2, 50IRE), 0 Lux (Irled On, 30IRE) |
| IR Viewable Length | 50Mt. @ 0 Lux |
| S/N Ratio | 55dB |
| Camera Title (OSD) | 85 characters OSD (Date / Time / Camera Title / Zoom Ratio / Commands & Messages) |
| LENS FEATURES | |
| Focal Length (Zoom Ratio) | 2.7~13.5mm (5x) Motorized varifocal |
| Lens / Mount Type | P-Iris / Board-in type |
| Focus Control | Continuous Motorize Zoom (CF), One-Touch Auto Focus (One Shot AF), Manual Focus (MF) |
| Angular Field of View | (2.7mm-13.5mm): (H): 106°~31° / (V): 58°~17° |
| Max. Aperture Ratio | F1.2 |
| VIDEO FEATURES | |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | On / Off / BLC (100 levels) / HLC BLC (100 levels) / WDR BLC (100 levels) / Defog BLC (100 levels) |
| WDR Function | High Sensitivity 145dB |
| Digital Noise Reduction | On/Off / Selectable 2D-NR+3D-NR |
| White Balance | Auto / Manual / Daylight / Night / Shadow / Tungsten / Fluorescent |
| Electronic Shutter Speed | 1/20000~1/5sec. |
| Gain Control | Off / On (100 levels with min / max) |
| Picture Enchangement | Level adjusment Brightness, Contrast, Saturation, Sharpness Enchangement |
| Motion Detection | Off / On (396ea, grid zones) |
| Flip / Mirror | Flip: On / Off |
| Privacy Masking | Off / On (24ea, Multicolor Polygonal) |
| LDC (Lens Distortion Correction) | Support (Auto Correction) |
| Pixel Counter | Available |
| Corridore Mode | 9:16 / 3:4 Angle Edit (90° / 270°) |
| Smart Codec (ROI) | Multi ROI (24 Zones) |
| Digital Image Stabilization | Gyro Sensor Anti Shake DIS (On/Off) |
| ANALYTICS / ALARMS / EVENTS | |
| Video & Audio Analytics | Illegal Parking, Abnormal Speed, Perimeter Detection, Single/Double Virtual Fences, SingleMulti Loitering Detection, Object Left Detection , Object Removed Detection, Converse Detection |
| Alarm Triggers | IVA, Motion Detection, Schedule, Audio Detection, Digital Input, Temperature Alarm, Auto IR Focus for Day & Night |
| Alarm Events | Stream/Snapshot to FTP/Email/Samba/SD-Card HTTP/Email Notification/ Digital Output |
| NETWORK | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.265+ / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG (Triple Codec) |
| Maximum Frame Rate | H.265+ / H.264+ / MJPEG : All Resolutions 60fps |
| Audio Compression Format | Selectable G.711 ,RAW_PCM |
| Audio Communication | Bi-directional (2-way) |
| Bitrate Control | H.265 / H.264 : CBR veya VBR, MJPEG : VBR |
| Streaming Capability | Fourlex Streaming (Triple Straming + 1 Stream SVC (Scalable Video Coding) |
| Streaming Method | Unicast / Multicast |
| IP Class | IPv4 / IPv6 |
| Supported Protocols | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, DNS, DDNS, UPnP, FTP, SMTP, SNMPv1/v2c/v3(MIB-2), SSL, TLS, STARTTLS, PPoE, ONVIF (Profile-S), API,CGI |
| Network Security | HTTPS(SSL) login authentication, IP address filtering (Black list/White List), User access Log, 802.1x, Encryption, SSL, TLS, STARTTLS, SMTP Encryption |
| Maximum User Access | 10 users at Unicast Mode / Unlimited users at Multicast Mode |
| API | ONVIF profile S, G, CGI (HTTP API), Brickcom Open Platform (SDK) |
| SOFTWARE | |
| Free Bundle Software | 64 Channel VMS, Onvif & IP Search Tool |
| Web GUI Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| OS Compatibility | Windows 7/8.1/10, Mozilla Firefox, Internet Explorer, MS Edge Safari, Google Chrome, Opera, Apple Safari, |
| Mobile Compatibility | Android, IOS, Windows Mobile |
| MECHANICAL | |
| Internal Storage | SD/SDHC/SDXC (Max. 256GB) |
| Audio In | Line/Mic input |
| Audio Out | Line out (1.4 Vp-p, 1 Vrms) |
| Material / Color | Aluminum / White |
| Ingress Protection | IP67, NEMA 6 Certificate |
| Anti Vandalism | IK10 |
| Fire Protection | - |
| Working Temperature | -40°C ~ +60°C (-40°F ~ +140°F) Less than 90% RH |
| Dimensions (WxH) | 82,7(Ø) x 264,5(H) mm |
| Weight | Without Bracket: 0,86Kg (1.90lb) |
| ELECTRICAL | |
| Input Voltage | 12V DC ±10%, PoE (IEEE802.3af) |
| Power Consumption | Max. 8W (PoE 802.3af, Irled on), 5W (PoE 802.3af, Irled off) |
| CERTIFICATES & WARANTY | |
| Certificates | FCC/CE/IK10/IP67/UL/NEMA 6 |
| Waranty | Limited 24 months warranty / Extended waranty up to 60 monts (with FUL-CMU-01 licence pack) |
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
