Açıklama

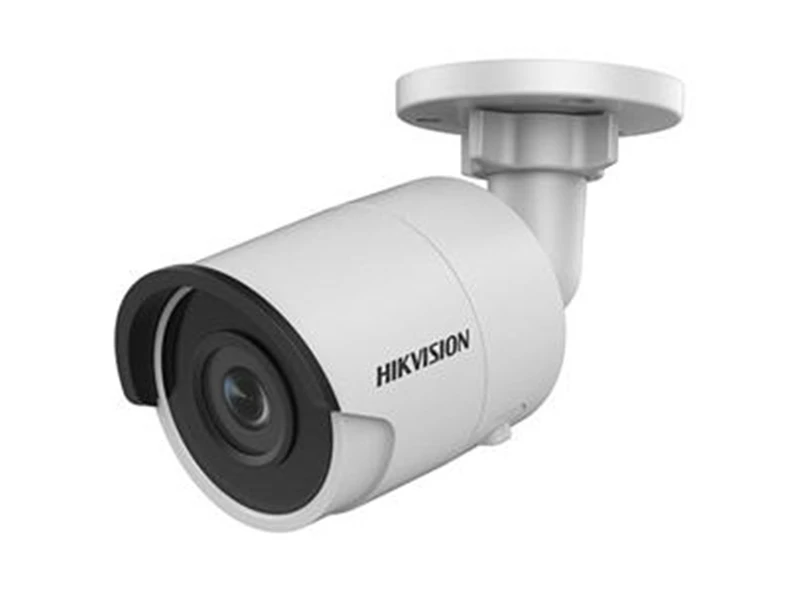

Hikvision DS 2CD2025FHWD I IP Bullet Kamera
Özellikler
- Up to 2 megapixel high resolution
- Max. 1920 × 1080 @60fps
- 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
- Ultra-low light
- H.265, H.265+, H.264+, H.264
- 120dB Wide Dynamic Range
- 3D Digital Noise Reduction
- DC12V & PoE (802.3af)
- IR range: up to 30 m
- Support on-board storage, up to 128 GB
- IP67
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter time | 1/3 s to 1/100,000 s |
| Slow shutter | Support |
| Lens | 2.8 mm, horizontal field of view: 108° |
| 4 mm, horizontal field of view: 86.4° | |
| 6 mm, horizontal field of view: 52° | |
| 8 mm, horizontal field of view: 41° | |
| 12 mm, horizontal field of view: 25° | |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate | 32Kbps~16Mbps |
| Triple Streams | Yes |
| Image | |
| Max. Image Resolution | 1920 x 1080 |
| Frame Rate | 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 352 × 288) |
| 60Hz: 30fps (640 × 480, 640 × 360, 352 × 240) | |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288) |
| 60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240) | |
| Image Enhancement | BLC/3D DNR |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| ROI: | Support 1 fixed region for main stream and sub stream separately |
| Day/Night Switch | Auto/Scheduled |
| Network | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| mask, Watermark, IP address filtering | |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
| Interface | |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Unattended Baggage | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections | Scene change detection |
| Recognition | Face Detection |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption | 12 VDC ± 25%, 5W |
| PoE(802.3af, class 3), 6.5W | |
| Weather Proof | IP67 |
| IR Range | Up to 30m |
| Dimensions | Camera: Φ70 × 155.03 mm (Φ2.76″ × 6.1″) |
| Package: 216 × 121 × 118 mm (8.5″ × 4.76″ × 4.65″) | |
| Weight | Camera: 410 g (0.9 lb.) |
Hikvision DS 2CD2025FHWD I IP Bullet Kamera Pdf Dosyası949.59 KB
Hikvision DS 2CD2025FHWD I IP Bullet Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası4.25 MB
Teknik Kısa
Çözünürlük : 2MP (1080P)
