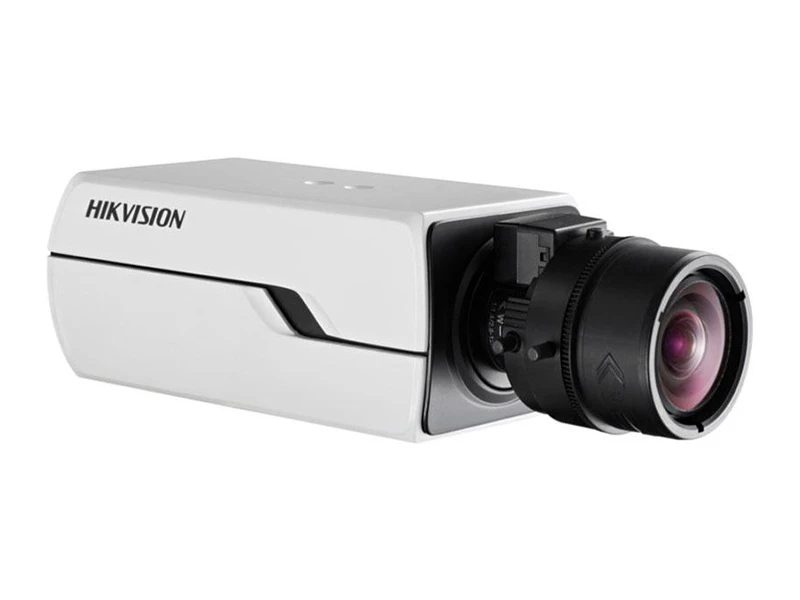

Hikvision DS 2CD4012FWD P IP Box Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON) |
| B/W: 0.001 Lux @ (F1.2, AGC ON) | |
| Shutter Speed | 1 s to 1/100,000 s |
| Slow Shutter | Support |
| Lens Mount | C/CS mount |
| Day & Night | IR cut filter with auto switch |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB |
| Focus | ABF(-A model) |
| Video Compression | H.264/MPEG4/MJPEG |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| Video Bit Rate | 32 Kbps – 16 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Audio Bit Rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Image | |
| Max. Resolution | 1280 × 960 |
| Frame Rate | WDR OFF: |
| 50Hz: 25fps (1280 × 960), 50fps (1280 × 720) | |
| 60Hz: 30fps (1280 × 960), 60fps (1280 × 720) | |
| WDR ON: | |
| 50Hz: 25fps (1280 × 960), 25fps (1280 × 720) | |
| 60Hz: 30fps (1280 × 960), 30fps (1280 × 720) | |
| Third Stream | Independent with Main Stream and Sub Stream, up to |
| 50Hz: 25fps(1280 × 960) | |
| 60Hz: 30fps (1280 × 960) | |
| BLC | Support |
| Smart Defog | Support |
| EIS | Support |
| Image Setting | Rotate mode, Saturation, Brightness, Contrast adjustable by client software |
| or web browser | |
| Day/Night Switch | Auto/Schedule/Triggered by Alarm In |
| ROI | Support to 4 different areas configuration in all the three |
| streams with adjustable 6 levels.Automatically dynamic tracking | |
| with face detection can be configured. | |
| Picture Overlay | LOGO picture can be overlaid on video with 128x128 24bit bmp format |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS) |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| Security | User Authentication, Watermark, IP address filtering, Anonymous access |
| Standard | ONVIF, PSIA, CGI, ISAPI |
| Interface | |
| Audio Input | 1-ch 3.5 mm audio interface, Mic in/Line in. 1 built-in Microphone |
| Audio Output | 1-ch 3.5 mm audio interface |
| Communication Interface | 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Video Output | 1Vp-p composite output (75 Ω/BNC) |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 64 GB |
| Reset Button | Yes |
| General | |
| Operating Conditions | -30 °C – 60 °C (-22 °F – 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 24 V AC ± 10%, 12 V DC ± 10%, PoE (802.3af) |
| Power Consumption | Max. 6 W (Max. 9W with IR cut filter on) |
| -W: Max. 7 W (Max. 10W with IR cut filter on) | |
| Dimensions | 69.8×58×145 mm (2.68” × 2.56” × 5.70”) |
| Weight | 830 g (1.83 lbs) |
Hikvision DS 2CD4012FWD P IP Box Kamera Pdf Dosyası328.64 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 1.3MP
