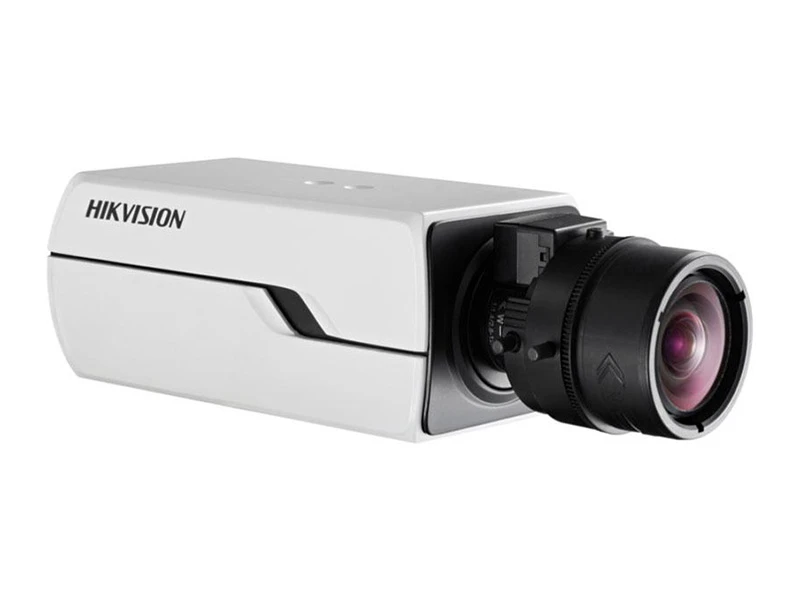

Hikvision DS 2CD4024F P IP Box Kamera

Özellikler

1/2.8’’ progressive scan CMOS
Up to 1920 × 1080 resolution
Smart Codec
Smart Focus: ABF(-A)
Smart VQD
Smart Face Detection
Smart Audio Detection
Intrusion Detection
Two-way audio, built-in Mic
3D DNR, DWDR
Defog, EIS, BLC, HLC
Wi-Fi optional(-W)
P-iris optional(-P)

Teknik Özellikler

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.01 Lux @ (F1.2, AGC ON)
Min. Illumination	B/W: 0.001 Lux @ (F1.2, AGC ON)
Shutter time	1 s to 1/100,000 s
Lens Mount	C/CS mount
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	Digital WDR
Digital noise reduction	3D DNR
Focus	ABF(-A model)
Compression Standard
Video Compression	H.264+/H.264/MPEG4/MJPEG
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2
Triple Streams	Yes
Max. Image Resolution	1920 x 1080
Frame Rate	50Hz: 25fps (1920 × 1080) 25fps (1280 × 960), 25fps (1280 × 720)
Frame Rate	60Hz: 30fps (1920 × 1080) 30fps (1280 × 960), 30fps (1280 × 720)
Third Stream	Independent with Main Stream and Sub Stream, up to
	50Hz: 25fps (1920 × 1080)
	60Hz: 30fps (1920 × 1080)
Image Settings	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC	Support
HLC	Support
Smart Defog	Support
EIS	Support
ROI	Support
Picture Overlay	128 × 128, BMP 24bit, zone configurable
Network
Network Storage	NAS (Support NFS,SMB/CIFS)
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
Protocols	PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour(SIP optional)
System Compatibility	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Audio Input	1-ch 3.5 mm audio interface, Mic in/Line in. 1 built-in Microphone
Audio Output	1-ch 3.5mm audio interface (line level, 600 Ω)
Communication Interface	1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface
Alarm Input	1
Alarm Output	1
Video Output	1Vp-p Composite Output (75 Ω, BNC)
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	24V AC, ±10% / 12V DC, ±10% , PoE(Power Over Ethernet)
Power Consumption	Max. 6 W (Max. 9W with IR cut filter on)
Power Consumption	-W: Max. 7 W (Max. 10W with IR cut filter on)
Dimensions	69.8×58×145 mm (2.68” × 2.56” × 5.70”)
Weight	830 g (1.83 lbs)
