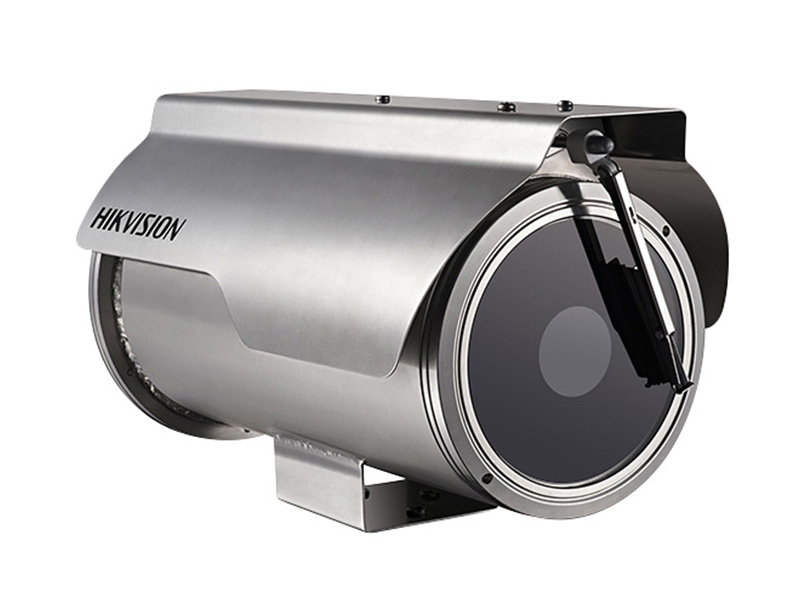

Hikvision DS 2CD6626BS R IP HD Bullet Kamera
Özellikler
- 1/1.8’’ progressive scan CMOS
- Up to 1920 × 1080 resolution
- 120dB WDR, 3D DNR
- IP67
- 316L stainless steel anti-corrosion materials design
- WF-2, C5-M anti-corrosion standards
Teknik Özellikler
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.002 Lux @ (F1.2, AGC ON) |
| B/W: 0.0002 Lux @ (F1.2, AGC ON) | |
| Shutter time | 1 s to 1/100,000 s |
| Slow shutter | Support |
| Lens | 16mm F1.8 HFOV: 25° |
| Lens Mount | M12 |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.264/MPEG4/MJPEG |
| H.264 code profile | Base Line Profile/ Main Profile/ High Profile |
| Video bit rate | 32Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Dual Stream | Yes |
| Triple Streams | Yes |
| Image | |
| Max. Image Resolution | 1920 x 1080 |
| Frame Rate | 50Hz: 50fps (1920 × 1080,1280 × 960,1280 × 720) |
| 60Hz: 60fps (1920 × 1080,1280 × 960,1280 ×720) | |
| Third Stream | Independent with Main Stream and Sub Stream ,up to: |
| 50HZ: 25fps(1920 × 1080) | |
| 60HZ: 30fps (1920 × 1080) | |
| Image Settings | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC | Yes, zone configurable |
| HLC | Support |
| Smart Defog | Support |
| EIS | Support |
| 3D DNR | Support |
| ROI | Up to 4 fixed areas in each stream or dynamic tracking |
| Picture Overlay | Support 24-bit BMP image overlay, zone optional |
| Day/Night Switch | Auto, Schedule, Alarm trigger |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| General Function | One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video |
| mask, Watermark, IP address filtering | |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
| Interface | |
| Audio | 1 x 3.5mm audio input (Mic in / Line in) / output external interface |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| Alarm | 1 input/1 output(up to DC24V 1A or AC 110V 500mA) |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Region Entrance | Enter a pre-defined virtual region from the outside place |
| Region Exiting | Exit from a pre-defined virtual region |
| Unattended Baggage | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal | Objects removed from the pre-defined region, such as the exhibits on display. |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 24VAC± 10%, 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption | 13W MAX |
| Weather Proof | IP67 |
| Dimensions | 373.03×203.15×180 |
| Weight | 6200g(13.67lbs) |
Hikvision DS 2CD6626BS R IP HD Bullet Kamera Pdf Dosyası324.25 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 2MP (1080P)
