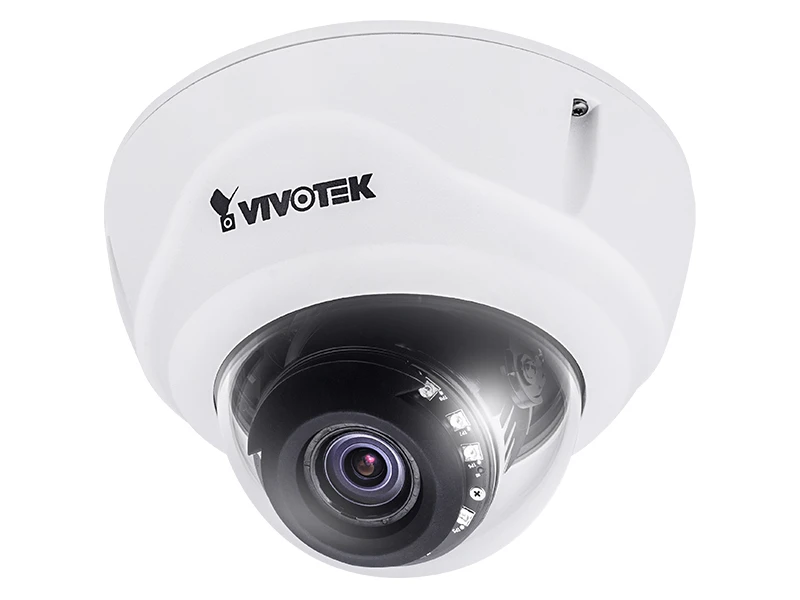

Vivotek FD9371 EHTV IP HD Dome Kamera
Özellikler
- H.265 Compression Technology
- 1/2.8" Progressive CMOS Sensor
- 30 fps @ 2048x1536
- Smart Stream II to Optimize Bandwidth Efficiency
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Built-in IR Illuminators, Effective up to 30 Meters
- Remote Focus for Easy Focus Adjustments
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- Extreme Weather Support with PoE
- SNV (Supreme Night Visibility) for Low Light Conditions
- Video Rotation for Corridor View
- P-iris Lens
- DIS (Digital Image Stabilization)
Teknik Özellikler
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 512 MB |
| Camera Features | |
| Image Sensor | 1/2.8" Progressive CMOS |
| Maximum Resolution | 2048x1536 (3MP) |
| Lens Type | Vari-Focal |
| Focal Length | f = 3 ~ 9 mm |
| Aperture | F1.2 ~ F2.3 |
| Auto-iris | P-iris |
| Field of View | 41° ~ 86° (Horizontal) |
| 31° ~ 64° (Vertical) | |
| 51° ~ 113 (Diagonal) | |
| Shutter Time | 1/5 sec. to 1/16000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.01 Lux @ F1.2 (Color) |
| 0.001 Lux @ F1.2 (B/W) | |
| Pan/Tilt/Zoom Functionalities | ePTZ: |
| 48x digital zoom (4x on IE plug-in, 12x built in) | |
| IR Illuminators | 30 meters |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot |
| Seamless Recording | |
| Video | |
| Compression | H.265 & H.264 & MJPEG |
| Maximum | H.265 & H.264: |
| Frame Rate | 30fps@ 2048x1536 |
| MJPEG: | |
| 15fps@ 2048x1536 | |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 43 dB |
| Dynamic Range | 100 dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Smart Stream II | |
| Image Settings | Time stamp, text overlay, flip & mirror |
| Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks | |
| Scheduled profile settings, 3DNR, video rotation, defog, DIS | |
| Audio | |
| Audio Capability | Two-Way Audio (full duplex) |
| Compression | G711, G726 |
| Interface | External microphone input |
| Audio output | |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ-45) |
| *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. | |
| ONVIF | Supported, specifications available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| VCA* | Line crossing detection, field detection, loitering detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card |
| File upload via HTTP, SMTP, FTP, NAS server and SD card | |
| General | |
| Smart Focus System | Remote focus |
| Connectors | RJ-45 cable connector for Network/PoE connection |
| Audio input | |
| Audio output | |
| DC 12V power input | |
| Digital input*1 | |
| Digital output*1 | |
| LED Indicator | System power and status indicator |
| Power Input | 12V DC |
| IEEE 802.3at PoE Class 4 | |
| Power Consumption | Max. 24.7 W (Heater on) |
| Dimensions | Ø 155 x 103 mm |
| Weight | 928 g |
| Casing | Weather-proof IP66-rated housing |
| Vandal-proof IK10-rated metal housing | |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL |
| Operating Temperature | Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F) |
| Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F) | |
| Humidity | 90% |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~43 (streaming only) |
| Internet Explorer 7/8/9/10/11 | |
| Other Players | VLC: 1.1.11 or above |
| Quicktime: 7 or above | |
| Included Accessories | |
| CD | User's manual, quick installation guide, Installation Wizard 2, VAST |
| Others | Quick installation guide, screw pack, alignment sticker, desiccant bag, water-proof connectors |
Video
Teknik Kısa
Ses : Var
Depolama : Var
Çözünürlük : 3MP
Irled : Var
