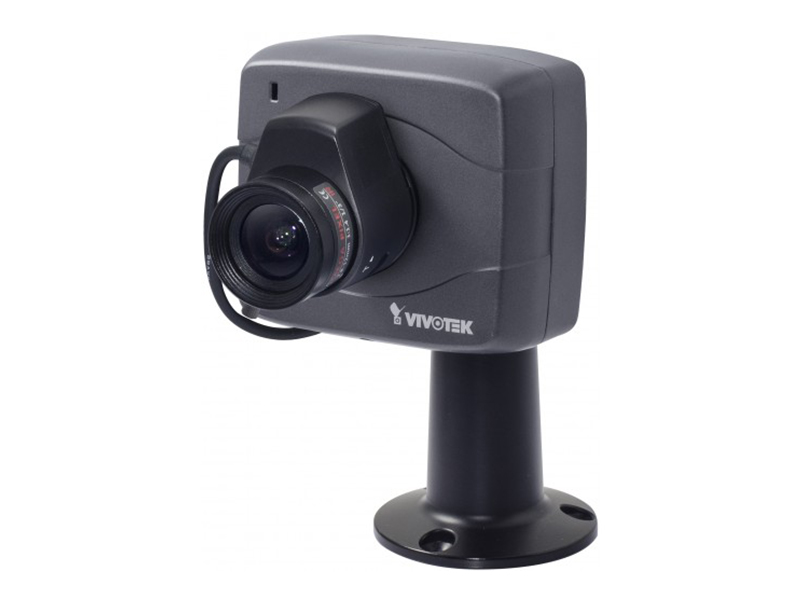

Vivotek IP8152 F4 IP HD Küp Kamera
Özellikler
- 1.3-megapixel CMOS Sensor
- Compact Design
- Real-time H.264 and MJPEG compression (Dual Codec)
- 30fps @ 1280x1024
- Supreme Night Visibility
- Two-way Audio
- Removable IR-cut Filter for Day and Night Function
- WDR Enhancement to Provide Extreme Visibility in High Light Contrast Scene
- Built-in IEEE 802.3af Compliant PoE
- Built-in MicroSD/SDHC Card Slot for On-board Storage
Teknik Özellikler
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 16 MB |
| RAM | 256 MB |
| Camera Features | |
| Image sensor | 1/3" Progressive CMOS |
| Maximum Resolution | 1280x1024 |
| Lens Type | Vari-focal (IP8152) |
| Fixed-focal (IP8152-F4) | |
| Focal Length | f = 3.3 ~ 12 mm (IP8152) |
| f = 4 mm (IP8152-F4) | |
| Aperture | F1.4 (wide), F2.4 (tele) (IP8152) |
| F1.6 (IP8152-F4) | |
| Auto-iris | DC-iris (IP8152) |
| Fixed-iris (IP8152-F4) | |
| Field of View | IP8152 |
| 34° ~ 74° (horizontal) | |
| 25° ~ 60° (vertical) | |
| 40° ~ 95° (diagonal) | |
| IP8152-F4 | |
| 76° (horizontal) | |
| 60° (vertical) | |
| 99° (diagonal) | |
| Shutter Time | 1/15 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Day & Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | IP8152 |
| 0.11 Lux @ F1.4 ( Color ) | |
| 0.001 Lux @ F1.4 ( B/W ) | |
| IP8152-F4 | |
| 0.12 Lux @ F1.6 ( Color ) | |
| 0.001 Lux @ F1.6 ( B/W ) | |
| Pan / Tilt / Zoom | ePTZ: |
| 48x digital zoom (4x on IE plug-in, 12x built-in) | |
| On-board Storage | Micro SD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264 & MJPEG |
| Maximum Frame Rate | H.264: 30 fps at 1280x1024 |
| MJPEG: 30 fps at 1280x1024 | |
| Maximum Streams | 2 simultaneous streams |
| S/N Ratio | Above 58 dB |
| Dynamic Range | 67 dB |
| Video Streaming | Adjustable resolution, quality and bit rate |
| Configurable video cropping for bandwidth saving | |
| Image Settings | Adjustable image size, quality and bit rate |
| Time stamp, text overlay, flip & mirror | |
| Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings | |
| Audio | |
| Audio Capability | Audio input/output (full duplex) |
| Compression | G.711 |
| Interface | External microphone input |
| External line output | |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| ONVIF | Supported, specification available at www.onvif.org |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ45) |
| Intelligent Video | |
| Video Motion Detection | Triple-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using HTTP, SMTP, FTP and NAS server |
| File upload via HTTP, SMTP, FTP and NAS server | |
| General | |
| Connectors | RJ-45 for Network/PoE connection |
| Audio input | |
| Audio output | |
| RS485*1 | |
| Digital input*1 | |
| LED Indicator | System power and status indicator |
| Power input | IEEE 802.3af PoE Class 2 |
| Power consumption | Max. 3.4W |
| Dimensions | 39mm (D) x 80mm (W) x 70mm (H) (Body only) |
| 88mm (D) x 80mm (W) x 70mm (H) (IP8152) | |
| 52mm (D) x 80mm (W) x 70mm (H) (IP8152-F4) | |
| Weight | 176 g (Body only) |
| 233 g (IP8152 with lens) | |
| 202 g (IP8152-F4 with lens) | |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick |
| Operating Temperature | Starting Temperature: 0°C~50°C (32°F ~ 122°F) |
| Working Temperature: -10°C~50°C (14°F ~ 122°F) | |
| Warranty | 24 months |
| System Requirements | |
| Operating System | Microsoft Windows 7/Vista/XP/2000 |
| Browser | Mozilla Firefox 7~10 (streaming only) |
| Internet Explorer 7.x or 8.x | |
| Other Players | VLC: 1.1.11 or above |
| QuickTime: 7 or above | |
Teknik Kısa
Depolama : Var
Çözünürlük : 1.3MP
