Açıklama

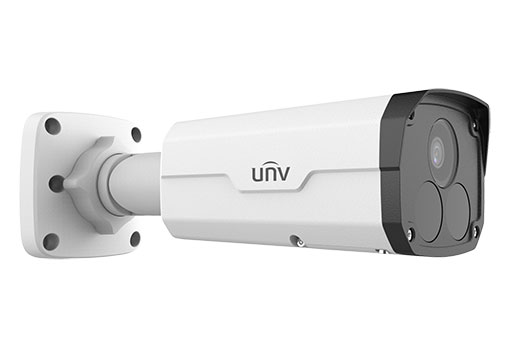

Uniview IPC2224SA-DF40K IP Bullet Kamera
Özellikler
- Optics
- 1/1.8’’, Powered by lighthunter
- Smart IR, up to 50m (164 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Smart
- People Counting, support tripwire people counting and area people counting
- Perimeter Protection, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- Exception Detection and Statistics, include Object Removed, Object Left Behind, Defocus, Scene Change
- Compression
- Ultra 265, H.265, H.264, MJPEG
- Five streams
- 2688*1520@30fps in the main stream
- ROI (Region of Interest)
- Network
- ONVIF Conformance
- Structure
- DC12V or PoE power supply
- Wide voltage range of ±25% in DC
- Micro SD, up to 256 GB
- Alarm 1 in and 1 out, Audio 1 in and 1 out
- IP67 ingress protection
- IK10 vandal resistant
Teknik Özellikler
| Camera | IPC2224SA-DF40K | |||
| Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | |||
| Lens | 4mm@F1.6, fixed aperture lens | |||
| Iris | Fix aperture | |||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) |
| 4 | 60.0(196.9ft) | 24.0(78.7ft) | 12.0(39.4ft) | |
| 6 | 90.0(295.3ft) | 36.0(118.1ft) | 18.0(59.1ft) | |
| Field of View (H) | 94.7° | |||
| Field of View (V) | 49.6° | |||
| Field of View (D) | 116.5° | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||
| Min. Illumination | Colour:0.001lux (F1.6, AGC ON) | |||
| 0 lux with IR | ||||
| WDR | 120dB | |||
| Day/Night | IR-cut filter with auto switch (ICR) | |||
| S/N | >56dB | |||
| IR Range | Up to 50m (164 ft) IR range | |||
| Wavelength | 850nm | |||
| IR On/Off Control | Auto/Manual | |||
| Defog | Digital Defog | |||
| Video | ||||
| Video Compression | Ultra 265,H.265,H.264,MJPEG | |||
| Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; 4MP(2560*1440),Max 30fps; 2MP(1920*1080),Max 30fps; | |||
| Sub Stream: 2MP (1920*1080), Max 30fps; | ||||
| Third Stream: D1 (720*576), Max 30fps; | ||||
| Forth Stream: D1 (720*576), Max 30fps; | ||||
| Fifth Stream: D1 (720*576), Max 30fps | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||
| ROI | Supported | |||
| Video stream | Five streams | |||
| OSD | Up to 8 OSDs | |||
| Privacy Mask | Up to 8 areas(8 blacks/4 mosaics+4 blacks) | |||
| Image | ||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||
| Digital noise reduction | 2D/3D DNR | |||
| Smart IR | Support | |||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||
| HLC | Support | |||
| BLC | Support | |||
| Smart | ||||
| Smart intrusion Prevention | Support false alarm filtering, Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection ; | |||
| Motion detection ; | ||||
| Exception Detection And Statistics | Object Removed, Object Left Behind, Scene Change | |||
| Statistical Analysis | People counting, support tripwire people counting and area people counting | |||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||
| Audio | ||||
| Audio Compression | G.711U,G.711A | |||
| Two way audio | Supported | |||
| Sampling Rate | 8KHZ | |||
| Storage | ||||
| Edge Storage | Micro SD, up to 256 GB | |||
| Network Storage | ANR,NAS(NFS) | |||
| Network | ||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | |||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||
| Client | EZStation | |||
| Ezview | ||||
| EZLive | ||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||
| Interface | ||||
| Audio I/O | Audio cable | |||
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | ||||
| 1 output: impedance 600Ω; amplitude 2V [p-p] | ||||
| Alarm I/O | 1.Oca | |||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | |||
| Certifications | ||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) | |||
| FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) | |||
| CB (IEC 62368-1:2014) | ||||
| UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||
| IK10 (IEC 62262:2002) | ||||
| General | ||||
| Power | DC12V(±25%), PoE(IEEE802.3af) | |||
| Power consumption: Max 9W | ||||
| Support overcurrent protection and input short circuit protection | ||||
| Dimensions (Ø x H) | Φ245.6x85.7x85.4mm(Φ12.1’’x3.4’’x3.4’’) | |||
| Net Weight | 0.90kg(1.98lb) | |||
| Material | Metal | |||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||
Uniview IPC2224SA-DF40K IP Bullet Kamera Pdf Dosyası323.92 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 4MP
Irled : Var
