Açıklama

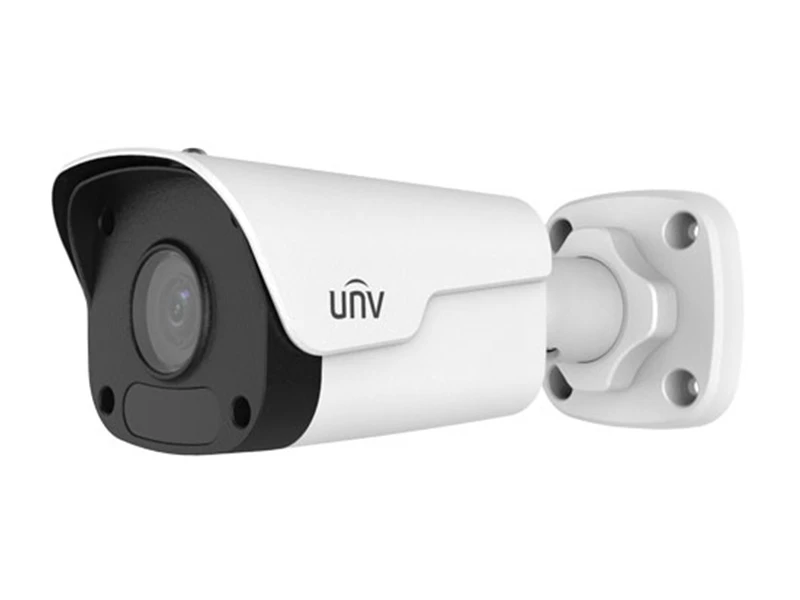

Uniview IPC2125LR3 PF40M D IP Mini Bullet Kamera

Name: Uniview IPC2125LR3 PF40M D IP Mini Bullet Kamera
Brand: Uniview

Optics

Compression

Network

Structure

Depolama : Var

Çözünürlük : 5MP

	IPC2125LR3-PF40M-D			IPC2125LR3-PF60M-D
Camera
Sensor	1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens	4.0mm@F2.0			6.0mm@F2.0
DORI Distance	Lens	Detect(m)	Observe(m)		Recognize(m)	Identify(m)
	4.0mm	60	24.1		12.1	6.1
	6.0mm	90	5.2		18.1	9.1
Angle of View (H)	79.7°			50.5°
Angle of View (V)	51.8°			35.9°
Angle of View (O)	98.0°			62.1°
Adjustment angle	Pan: °~360°	Tilt: °~90°		Rotate: 0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Colour: 0.01 Lux (F2.0, AGC ON)
	0 Lux with IR on
Digital noise reduction	2D/3D DNR
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
WDR	DWDR
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:5MP (2592*1944): Max.15fps;
	Sub Stream: 720P (1280×720): Max.20fps;
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
Compatible Integration	ONVIF(Profile S), API
Interface
Network	10/100M Base-TX Ethernet
General
Power	12 V DC±25%, PoE (IEEE802.3 af)
	Power consumption: Max 4W
Dimensions (L × W × H)	167.3 × 62.9 ×62.7 mm(6.6” × 2.5” × 2.5”)
Weight	0.37kg (0.81lb)
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F),Humidity :10%~90% RH(non-condensing)
Ingress Protection	IP67
