Açıklama

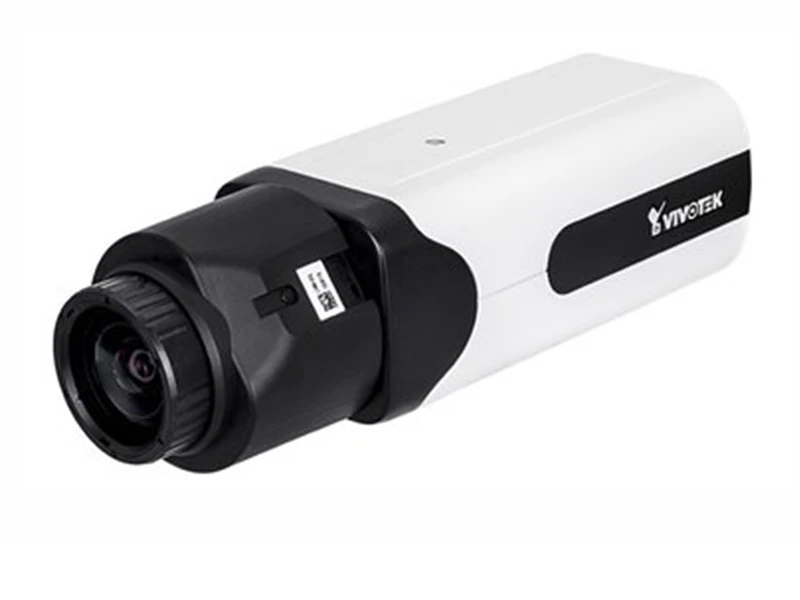

Vivotek IP9181 H IP HD Box Kamera

Özellikler

H.265 Compression Technology
1/1.8" Progressive CMOS Sensor, 30 fps @ 2560x1920; 60 fps @ 1920x1080
Gigabit Ethernet for High Speed of Transmission
Smart Stream II to Optimize Bandwidth Efficiency
WDR Pro for Unparalleled Visibility in High Contrast Environments
Remote Back Focus for Easy Focus Adjustments
SNV (Supreme Night Visibility) for Low Light Conditions
Video Rotation for Corridor View
Lens Profile to Ensure the Full Compatibility for Different Lens Options

Teknik Özellikler

System Information
CPU	Multimedia SoC (System-on-Chip)
Flash	128 MB
RAM	512 MB
Camera Features
Image Sensor	1/1.8" Progressive CMOS
Maximum Resolution	2560x1920(5MP)
Lens Type	Vari-Focal
Focal Length	f= 4.1 ~ 9 mm
Aperture	F1.6 ~ F2.4
Auto-iris	DC-iris ( P-iris reserved)
Field of View	46° ~ 90° (Horizontal)
	35° ~ 68° (Vertical)
	58° ~ 117° (Diagonal)
Shutter Time	1/5 sec. to 1/32,000 sec.
WDR Technology	WDR Pro
Day/Night	Removable IR-cut filter for day & night function
Minimum Illumination	0.07 Lux @ F1.6 (Color)
	0.001 Lux @ F1.6 (B/W)
Pan/Tilt/Zoom Functionalities	ePTZ:
Pan/Tilt/Zoom Functionalities	48x digital zoom (4x on IE plug-in, 12x built in)
On-board Storage	Slot Type: MicroSD/SDHC/SDXC card slot
On-board Storage	Seamless Recording
Video
Compression	H.265 & H.264 & MJPEG
Maximum Frame Rate	H.265 & H.264:
	30 fps @ 2560x1920
	60 fps @ 1920x1080
	MJPEG:
	12 fps @ 2560x1920
	30 fps @ 1920x1080
Maximum Streams	4 simultaneous streams
S/N Ratio	57 dB
Dynamic Range	100 dB
Video Streaming	Adjustable resolution, quality and bitrate
Video Streaming	Smart Stream II
Image Settings	Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, video rotation, 3DNR, defog, Snapshot Focus, Lens Profile, DIS
Audio
Audio Capability	Two-Way Audio (full duplex)
Compression	G711, G726
Interface	External microphone input
Interface	Audio output
Network
Users	Live viewing for up to 10 clients
Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
Interface	10 Base-T/100 Base-TX /1000 Base-T Ethernet (RJ-45)
Interface	*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF	Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection	Five-window video motion detection
VCA*	Line crossing detection, field detection, loitering detection
Alarm and Event
Alarm Triggers	Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
Alarm Events	Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card
	File upload via HTTP, SMTP, FTP, NAS server and SD card
General
Smart Focus System	Remote Back Focus via UI
Connectors	RJ-45 cable connector for 10/100/1000Mpbs
	Network/PoE connection
	Audio input
	Audio output
	DC 12V power input
	AC 24V Power input
	Digital input*3
	Digital output*1
	RS485
LED Indicator	System power and status indicator
Power Input	DC 12V
	AC 24V
	IEEE 802.3af/at PoE Class 0
Power Consumption	Max. 9.7 W
Dimensions	210 (D) x 70 (W) x 63 (H) mm
Weight	766 g
Safety Certifications	CE, LVD, FCC Class B, VCCI, C-Tick, UL
Operating Temperature	Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F )
Operating Temperature	Working Temperature: -10°C ~ 50°C (14°F ~ 122°F )
Humidity	90%
Warranty	36 months
System Requirements
Operating System	Microsoft Windows 8/7/Vista/XP/2000
Web Browser	Mozilla Firefox 7~10 (streaming only)
Web Browser	Internet Explorer 7/8/9/10/11
Other Players	VLC: 1.1.11 or above
Other Players	Quicktime: 7 or above
Included Accessories
CD	User's manual, quick installation guide, Installation Wizard 2, VAST
Others	Quick installation guide, mounting bracket, screw pack, Lens
