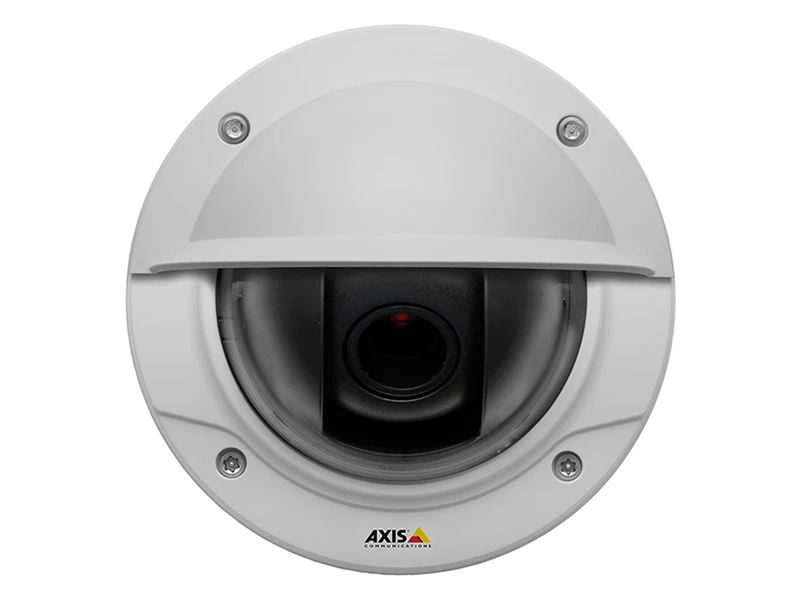

Axis P3215 VE IP HD Dome Kamera
Özellikler
- Day/night fixed dome with an IK10 vandal-resistant outdoor casing.
- Varifocal 3-10.5 mm P-iris lens, remote focus and zoom.
- Multiple, individually configurable H.264 and Motion JPEG streams;
- Max full HDTV 1080p/2MP resolution at 30 fps.
- WDR – dynamic contrast.
- Video motion detection and active tampering alarm.
- Memory card slot for optional local video storage.
- Operation in -30°C to +50°C (-22°F to 122°F) powered by standard Power over Ethernet.
- Midspan not included.
- Includes mounting bracket for wall/ceiling or junction boxes and weather shield against sun, rain or snow.
Teknik Özellikler
| Video Input |
| Camera Mechanical Design : Fixed dome |
| Camera Type : Network surveillance camera |
| Color or B&W : Color |
| Connectivity Technology : Wired |
| Day & Night Functionality : Yes |
| Digital Video Format.264 , MJPEG , MPEG-4 |
| Features : Backlight compensation , Brightness control , Color control , Contrast control , Exposure compensation , Image mirror , Privacy Mask Function , Sharpness control , White balance , Wide Dynamic Range (WDR) |
| Frame Rate : 30 frames per second |
| Max Digital Video Resolution : 1920 x 1080 |
| Panning Range (degree) : 180 |
| Shutter Speed (Max) : 2 sec |
| Shutter Speed (Min) : 1/33500 sec |
| Tilting Range (degree) : 90 |
| Optical Sensor |
| Optical Sensor Type : CMOS |
| Sensor Size : 1/2.8" |
| Sensor Size (metric) : 9.1 mm ( 1/2.8" ) |
| Total Pixels : 2,000,000 pixels |
| Networking |
| Network Interface : Ethernet 10Base-T/100Base-TX |
| Network Protocols : ARP , Bonjour , DDNS , DHCP , DNS , FTP , HTTP , HTTPS , ICMP , IGMP , IPv4 , IPv6 , NTP , QOS , RTCP , RTP , RTSP , SMTP , SNMP 1 , SNMP 2c , SNMP 3 , SOCKS , TCP/IP , UDP/IP , UPnP |
| Environmental Parameters |
| Humidity Range Operating : 10 - 100% |
| Max Operating Temperature : 122 °F |
| Min Operating Temperature : -22 °F |
| Header |
| Brand : Axis |
| Compatibility : PC |
| Manufacturer : Axis Communications |
| Model : P3215-VE Fixed Dome Network Camera |
| Packaged Quantity : 1 |
| Product Line : AXIS |
| Lens System |
| Angular Field of View (H, max, degree) : 95 |
| Angular Field of View (H, min, degree) : 34 |
| Focal Length Control : Vari-focal |
| Lens Aperture : F/1.4 |
| Max Focal Length : 10.5 mm |
| Min Focal Length : 3 mm |
| Miscellaneous |
| Color Category : White |
| Compliant Standards : AS/NZS CISPR 22 , C-Tick , EN 50121-4 , EN 60950-22 , EN 61000-6-1 , EN 61000-6-2 , EN55022 Class B , EN55024 , FCC Part 15 B Class A , ICES-003 Class B , IEC 60068-2-1 , IEC 60068-2-14 , IEC 60068-2-2 , IEC 60068-2-27 , IEC 60068-2-6 , IEC 60068-2-78 , IEC 60529 IP66 , IEC 60950-22 , IEC 62262 IK10 , KCC KN22 Class B , KN24 , NEMA Type 4X , UL 60950-22 , VCCI Class B |
| Service |
| Support Details Full Contract Period : 3 years |
| Support Details Type : Limited warranty |
| Software |
| Type : Drivers & Utilities |
| Video Capture |
| Frame Rate : 30 fps |
| Image Resolution : 1920 x 1080 |
| Dimensions & Weight |
| Depth : 4.1 in |
| Height : 5.9 in |
| Weight : 27.86 oz |
| Width : 5.9 in |
| CCTV Camera |
| Alarm Inputs Qty : 1 |
| Alarm Outputs Qty : 1 |
| Outdoor : Yes |
| Protection : Vandal / weatherproof |
| CCTV Camera Sensitivity |
| F-number : F1.4 |
| Minimum Illumination (lux) : 0.25 |
| Mode : Color |
| Minimum Illumination (lux) : 0.05 |
| Mode : B&W |
| Flash Memory |
| Installed Size : 128 MB |
| Power |
| Low Voltage Power : PoE |
| RAM |
| Installed Size : 256 MB |
| Service & Support |
| Type : 3 years warranty |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
