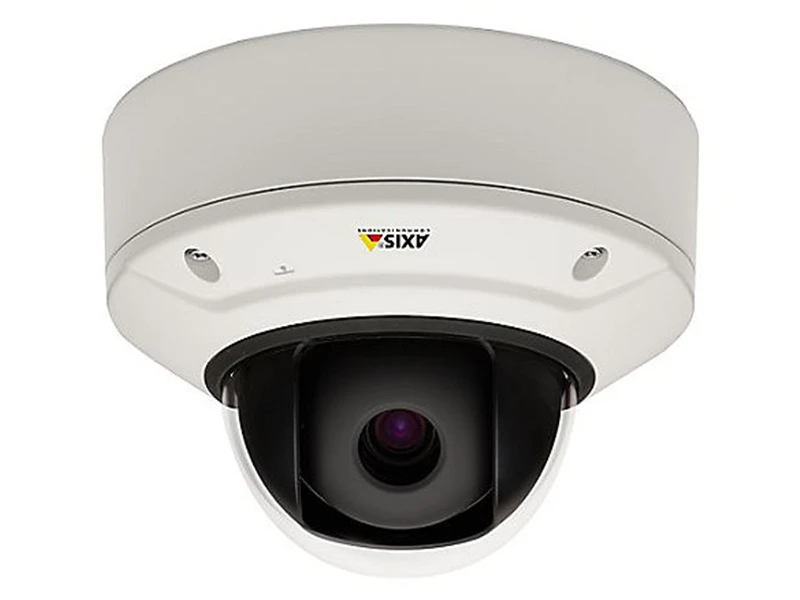

Axis Q3505 V 9MM IP HD Dome Kamera
Özellikler
- Day/night fixed dome with support for WDR – Forensic Capture in a discreet, dust and IK10 vandal-resistant indoor casing.
- Varifocal 3-9 mm P-Iris lens with remote zoom and focus for installation or monitoring. ,
- Multiple, individually configurable H.264 and Motion JPEG streams;
- Full HDTV 1080p/2MP resolution at up to 60 fps.
- Electronic image stabilization.
- Video motion detection, shock detection and active tampering alarm.
- Two-way audio and audio detection. I/O for alarm/event handling.
- Memory card slot for optional local video storage.
- Power over Ethernet.
- Midspan not included.
- Includes mounting bracket for wall/ceiling or junction boxes.
Teknik Özellikler
| Video Input |
| Audio Support : Yes |
| Audio Support Features : Two-way audio capability |
| Camera Mechanical Design : Fixed dome |
| Camera Type : Network surveillance camera |
| Color or B&W : Color |
| Connectivity Technology : Wired |
| Day & Night Functionality : Yes |
| Digital Video Format : H.264 , MJPEG , MPEG-4 |
| Digital Zoom : 2 |
| Features : Active tampering alarm , Audio Detection , AXIS Video Hosting System (AVHS) , Backlight compensation , Brightness control , Color control , Contrast control , Digital image rotation , Digital PTZ function , Electronic Image Stabilizer (EIS) , Image mirror , Infrared cut filter , Lightfinder technology , Manual exposure , microSD/SDHC/SDXC Memory Card slot , ONVIF V2.2 (Profile S) support , Password protection , Privacy Mask Function , Progressive scanning , Sharpness control , Shock detection , Text stamp , Video Motion Detection Technology , White balance , Wide Dynamic Range (WDR) |
| Frame Rate : 60 frames per second |
| Max Digital Video Resolution : 1920 x 1080 |
| Optical Zoom : 3 |
| Shutter Speed (Max) : 1/142850 sec |
| Shutter Speed (Min) : 2 sec |
| Optical Sensor |
| Optical Sensor Type : CMOS |
| Sensor Size : 1/2.8" |
| Sensor Size (metric) : 9.1 mm ( 1/2.8" ) |
| Total Pixels : 2,300,000 pixels |
| Networking |
| Network Interface : Ethernet 10Base-T/100Base-TX |
| Network Protocols : ARP , Bonjour , CIFS , DDNS , DHCP , DNS , FTP , HTTP , HTTPS , ICMP , IGMP , IPv4 , IPv6 , NTP , QOS , RTCP , RTP , RTSP , SMB , SMTP , SNMP 1 , SNMP 2c , SNMP 3 , SOCKS , SSH , SSL , TCP/IP , TLS , UDP/IP , UPnP |
| Environmental Parameters |
| Humidity Range Operating : 10 - 85% (non-condensing) |
| Max Operating Temperature : 122 °F |
| Min Operating Temperature : 14 °F |
| Header |
| Brand : Axis |
| Compatibility : PC |
| Manufacturer : Axis Communications |
| Model : Q3505-V Network Camera |
| Packaged Quantity : 1 |
| Product Line : AXIS |
| Lens System |
| Angular Field of View (H, max, degree) : 105 |
| Angular Field of View (H, min, degree) : 35 |
| Auto Iris Control : P-Iris |
| Focal Length Control : Vari-focal |
| Lens Aperture : F/1.3 |
| Lens Iris : Auto iris |
| Max Focal Length : 9 mm |
| Min Focal Length : 3 mm |
| Miscellaneous |
| Color Category : White |
| Compliant Standards : AS/NZS , C-Tick , CISPR 22 Class B , EN 50121-4 , EN 60950-1 , EN 61000-6-1 , EN 61000-6-2 , EN55022 Class B , EN55024 , FCC Part 15 B , ICES-003 Class B , IEC 60068-2-1 , IEC 60068-2-14 , IEC 60068-2-2 , IEC 60068-2-27 , IEC 60068-2-52 , IEC 60068-2-6 , IEC 60068-2-60 , IEC 60068-2-78 , IEC 60529 IP52 , IEC 60950-1 IEC 61000-6-1:2005 , IEC 61000-6-2:2005 , IEC 62236-4 , IEC 62262 IK10 , KCC KN22 Class B , KN24 , UL 60950-1 , VCCI Class B |
| Power Device |
| Power Consumption Operational : 5.5 Watt |
| Service |
| Support Details Full Contract Period : 3 years |
| Support Details Type : Limited warranty |
| Software |
| Type : Drivers & Utilities |
| Video Capture |
| Frame Rate : 60 fps |
| Image Resolution : 1920 x 1080 |
| Dimensions & Weight |
| Depth : 6.4 in |
| Height : 4.6 in |
| Weight : 2.65 lbs |
| Width : 6.4 in |
| CCTV Camera |
| Protection : Dustproof / waterproof / vandal-proof |
| CCTV Camera Sensitivity |
| F-number : F1.3 |
| Minimum Illumination (lux) : 0.36 |
| Mode : Color |
| Minimum Illumination (lux) : 0.08 |
| Mode : B&W |
| Flash Memory |
| Installed Size : 128 MB |
| Interfaces |
| Connector : RJ-45 |
| Type : LAN |
| Connector : 3.5 mm jack |
| Type : Audio line-in/microphone |
| Type : Audio line out |
| Power |
| Low Voltage Power : PoE |
| RAM |
| Installed Size : 512 MB |
| Service & Support |
| Type : 3 years warranty |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Ses : Var
