Açıklama

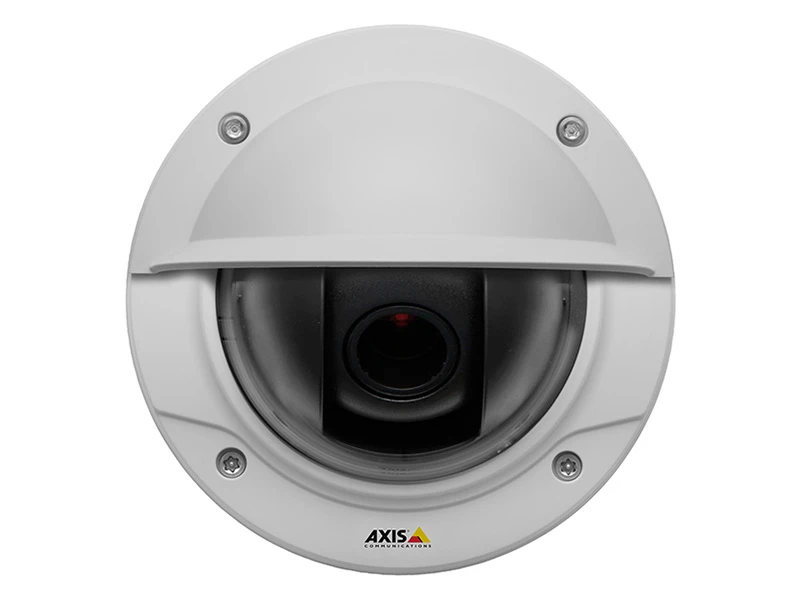

Axis Q3505 VE 9MM IP HD Dome Kamera

Özellikler

Day/night fixed dome with support for WDR – Forensic Capture in an IK10+ vandal-resistant outdoor casing.
Varifocal 3-9 mm P-Iris lens with remote zoom and focus for installation or monitoring.
Multiple, individually configurable H.264 and Motion JPEG streams;
Full HDTV 1080p/2MP resolution at up to 60 fps.
Electronic image stabilization.
Video motion detection, shock detection and active tampering alarm.
Two-way audio and audio detection. I/O for alarm/event handling.
Memory card slot for optional local video storage.
Operation in wide temperature range powered by standard Power over Ethernet.
Midspan not included. Includes mounting bracket for wall/ceiling or junction boxes and weather shield against sun, rain or snow.

Teknik Özellikler

Video Input

Audio Support : Yes

Audio Support Features : Two-way audio capability

Camera Mechanical Design : Pan / tilt / zoom

Camera Type : Network surveillance camera

Color or B&W : Color

Connectivity Technology : Wired

Day & Night Functionality : Yes

Digital Video Format : H.264 , MJPEG , MPEG-4

Digital Zoom : 2

Features : Backlight compensation , Contrast control , Distortion correction function , Electronic Image Stabilizer (EIS) , Exposure compensation , Lightfinder technology , microSD/SDHC/SDXC Memory Card slot , Sharpness control , White balance , Wide Dynamic Range (WDR)

Max Digital Video Resolution : 1920 x 1080

Optical Zoom : 3

Panning Range (degree) : 360

Tilting Range (degree) : -5 to 90

Optical Sensor

Optical Sensor Type : CMOS

Sensor Size : 1/2.8"

Sensor Size (metric) : 9.1 mm ( 1/2.8" )

Total Pixels : 2,300,000 pixels

Networking

Network Interface : Ethernet 10Base-T/100Base-TX

Network Protocols : ARP , Bonjour , CIFS , DDNS , DHCP , DNS , FTP , HTTP , HTTPS , ICMP , IGMP , IPv4 , IPv6 , NTP , QOS , RTCP , RTP , RTSP , SMB , SMTP , SNMP 1 , SNMP 2c , SNMP 3 , SOCKS , SSH , TCP/IP , UDP/IP , UPnP

Header

Brand : Axis

Compatibility : PC

Manufacturer : Axis Communications

Model : Q3505-VE Network Camera

Packaged Quantity : 1

Product Line : AXIS

Lens System

Angular Field of View (H, max, degree) : 105

Angular Field of View (H, min, degree) : 35

Focus Adjustment : Automatic

Lens Aperture : F/1.3

Max Focal Length : 9 mm

Min Focal Length : 3 mm

Miscellaneous

Color Category : White

Compliant Standards : C-Tick , CSA 22.2 No. 60950 , EN 61000-3-2 , EN 61000-3-3 , EN 61000-6-1 , EN 61000-6-2 , EN55022 Class B , EN55024 , FCC Part 15 B , ICES-003 Class B, IEC 60068-2-1 , IEC 60068-2-14 , IEC 60068-2-2 , IEC 60068-2-27 , IEC 60068-2-30 , IEC 60068-2-6 , IEC 60068-2-78 , IEC 60529 IP66 , IK10+ , IP66 , IP67 , ISO 4892-2 , KCC Class A , NEMA Type 4X , VCCI Class A ITE

Included Accessories : Sunshield

Service

Support Details Full Contract Period : 3 years

Support Details Type : Limited warranty

Software

Type : Drivers & Utilities

Video Capture

Frame Rate : 60 fps

Image Resolution : 1920 x 1080

Dimensions & Weight

Depth : 4.7 in

Height : 7.2 in
