Açıklama

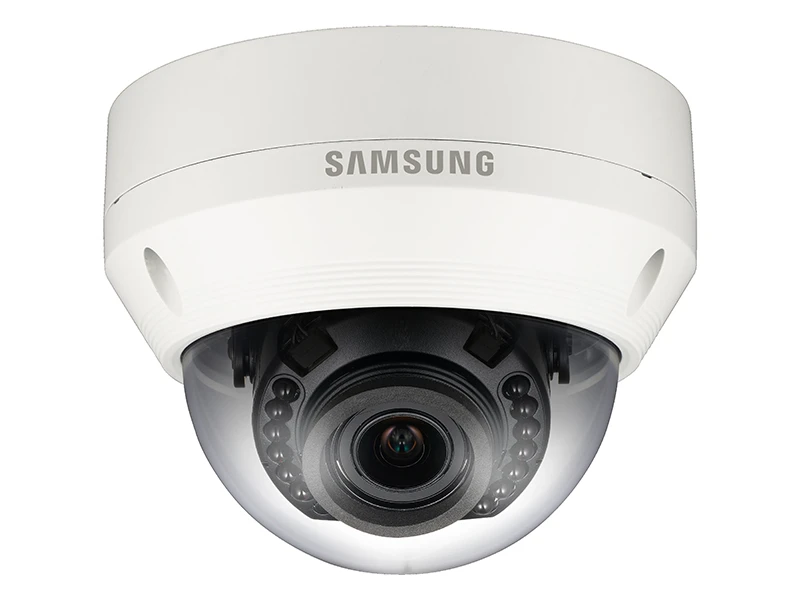

Samsung SNV L5083R IP HD Dome Kamera
Özellikler
- Max. 1.3M (1280 x 1024) resolution
- 16 : 9 HD (720P) resolution support
- 2.8 ~ 12mm (4.3x) varifocal lens
- 0.04 Lux @F1.4 (Color), 0Lux @ F1.4 (B/W : IR LED on)
- 30fps@all resolutions (H.264)
- H.264, MJPEG dual codec, Multiple streaming
- Motion detection, Tampering
- micro SD/SDHC memory slot, PoE
- IR viewable length 20m, IP66, IK10
- Hallway view support (Rotate 90˚/270˚)
- LDC support (Lens Distortion Correction)
Teknik Özellikler
| Video Input |
| Audio Support : Yes |
| Camera Mechanical Design : Fixed dome |
| Camera Type : Network surveillance camera |
| Color or B&W : Color |
| Connectivity Technology : Wired |
| Day & Night Functionality : Yes |
| Digital Video Capture Resolution : 1024 x 768 , 1280 x 1024 , 1280 x 720 , 1280 x 960 , 320 x 240 , 640 x 480 , 720 x 576 , 800 x 600 |
| Digital Video Format : H.264 , MJPEG |
| Features : Adjustable gain control , Automatic Tracing White (ATW) , Backlight compensation , Constant Bitrate (CBR) , Digital noise reduction , Image flip , Image mirror , Intelligent Video Analysis (IVA) , Lens Distortion Compensation (LDC) , Motion Detection Technology , Multicast Streaming , Notification picture to E-mail , Notification picture to FTP , ONVIF V2.2 (Profile S) support , Privacy Mask Function , Progressive scanning , Samsung Super Dynamic Range (SSDR) , Tamper-detection , Variable Bitrate (VBR) , White balance, WiseNet Lite |
| Frame Rate : 30 frames per second |
| Max Digital Video Resolution : 1280 x 1024 |
| Optical Zoom : 4.3 |
| Panning Range (degree) : 0 to 350 |
| Tilting Range (degree) : 0 to 67 |
| Video Format : NTSC |
| Video Modes : 720p |
| Optical Sensor |
| Optical Sensor Type : CMOS |
| Sensor Pixels Effective (H) : 1305 |
| Sensor Pixels Effective (V) : 1049 |
| Sensor Pixels Total (H) : 1312 |
| Sensor Pixels Total (V) : 1069 |
| Sensor Size : 1/3" |
| Sensor Size (metric) : 8.5 mm ( 1/3" ) |
| Total Pixels : 1,370,000 pixels |
| Networking |
| Network Interface : Ethernet 10Base-T/100Base-TX |
| Network Protocols : ARP , Bonjour , DDNS , DHCP , DNS , FTP , HTTP , HTTP over SSL , HTTPS , ICMP , IGMP , IPv4 , IPv6 , NTP , PIM-SM , PPPoE , QOS , RTCP , RTP , RTSP , SMTP , SNMP 1 , SNMP 2c , SNMP 3 , SSL , TCP/IP , UDP/IP , UPnP |
| System Requirements |
| Min Operating System : Apple MacOS X 10.7 - 10.10 , Microsoft Windows 7 , Microsoft Windows Vista , Microsoft Windows XP , Windows 8 , Windows 8.1 |
| Battery |
| Form Factor : None |
| Environmental Parameters |
| Humidity Range Operating : 0 - 90% |
| Max Operating Temperature : 131 °F |
| Min Operating Temperature : -22 °F |
| Header |
| Brand : Samsung |
| Compatibility : Mac , PC |
| Manufacturer : Samsung CCTV |
| Model : SNV-L5083RN |
| Packaged Quantity : 1 |
| Product Line : Samsung Techwin |
| Lens System |
| Angular Field of View (H, max, degree) : 88.2 |
| Angular Field of View (H, min, degree) : 28.6 |
| Angular Field of View (V, max, degree) : 69.4 |
| Angular Field of View (V, min, degree) : 23 |
| Auto Iris Control : DC |
| Focal Length Control : Vari-focal |
| Focus Adjustment : Manual |
| Lens Aperture : F/1.4 |
| Lens Iris : Auto iris |
| Max Focal Length : 12 mm |
| Min Focal Length : 2.8 mm |
| Min Focus Distance : 19.7 in |
| Miscellaneous |
| Color : Ivory |
| Color Category : White |
| Compliant Standards : cULus , FCC , IK10 , IP66 |
| Power Device |
| Power Consumption Operational : 5.8 Watt |
| Service |
| Support Details Full Contract Period : 3 years |
| Support Details Type : Limited warranty |
| Software |
| Type : Smart Viewer |
| Video Capture |
| Frame Rate : 30 fps |
| Image Resolution : 1280 x 1024 |
| Digital Camera |
| Supported Flash Memory : SD Memory Card , SDHC Memory Card |
| Dimensions & Weight |
| Depth : 5.4 in |
| Height : 4.2 in |
| Weight : 23.63 oz |
| Width : 5.4 in |
| CCTV Camera |
| Infrared Distance : 66 ft |
| Infrared LEDs : Yes |
| Outdoor : Yes |
| Protection : Vandal-proof |
| CCTV Camera Sensitivity |
| F-number : F1.4 |
| Gain Control : Shutter 1/30 sec |
| Minimum Illumination (lux) : 0.04 |
| Mode : Color |
| Gain Control : Shutter 2 sec |
| Minimum Illumination (lux) : 0.001 |
| Gain Control : Infrared LEDs on |
| Minimum Illumination (lux) : 0 |
| Mode : B&W |
| Interfaces |
| Connector : RJ-45 |
| Type : LAN/power |
| Type : Audio line in |
| Power |
| Low Voltage Power : PoE Class 2 |
| Service & Support |
| Type : 3 years warranty |
Teknik Kısa
Irled : Var
Çözünürlük : 1.3MP
