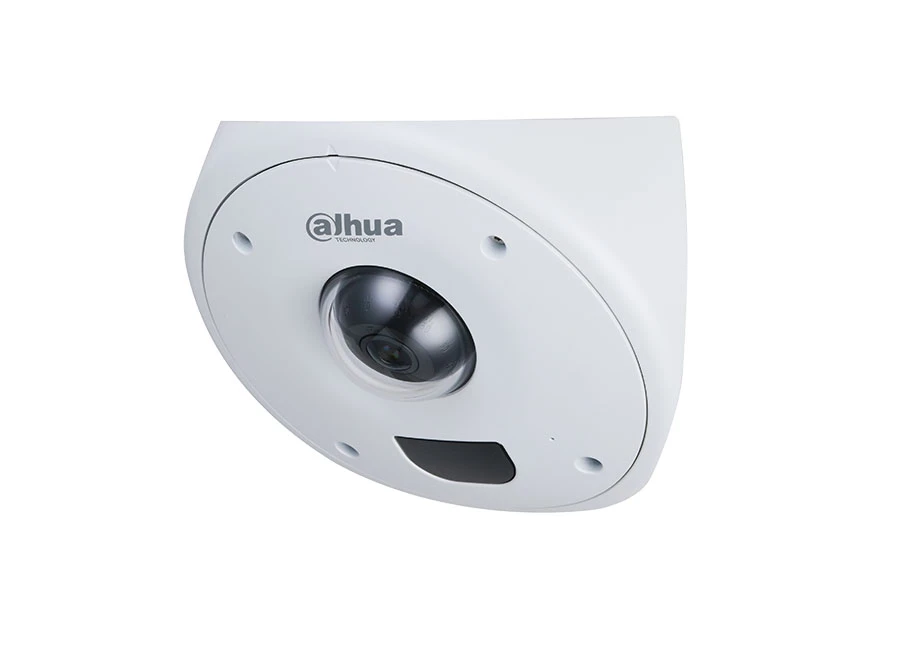

Dahua IPC HCBW8442 IR IP Corner Kamera

Özellikler

1/1.8” 4Megapixel progressive scan CMOS
H.265 & H.264 triple-stream encoding
25/30 fps@2688 × 1520
WDR (140 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
2.5 mm fixed lens, distortion correction
1/1 Alarm in/out, 1/1 audio in/out
Max. IR LEDs Length 10 m
IP67 and IK10+50J protection

Teknik Özellikler

Camera
Image Sensor	1/1.8”4Megapixel progressive CMOS
Effective Pixels	2688 (H) ×1520 (V)
ROM	128 MB
RAM	512 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100000 s
Min. Illumination	0.004 Lux@F2.0 (Color, 1/3 s, 30 IRE)
IR Distance	10 m (32.8 ft) (monitoring distance)
IR On/Off Control	Auto
IR LEDs Number	2
Pan/Tilt/Rotation Range	Vertical: -10° to +10°
	Rotation: 0° to 355°
Lens
Lens Type	Fixed
Mount Type	M12
Focal Length	2.5 mm
Max. Aperture	F2.0
Field of View	Horizontal: 135°
	Vertical: 90°
Iris Type	Fixed aperture
Close Focus Distance	0.4 m (1.3 ft)
DORI Distance	Detect	Observe	Recognize	Identify
	34.5 m	13.8 m	6.9 m	3.4 m
	(113.2 ft)	(45.3 ft)	(22.6 ft)	(11.2 ft)
Smart event
General IVS Analytics	Abandoned object; moving object
Heat Map	Yes
Professional, intelligent
Perimeter Protection	Tripwire; intrusion; loitering detection; people gathering.
People Counting	Entry number and exit number counting: Support configuring 4 rules, and display and output Entry number and exit number counting: Support configuring 4 rules, and display and output daily/monthly/annual report
	People counting in area: Support configuring 4 rules
	Queue management: Support configuring 4 rules, and count the number of people and strand time, and link alarm
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG
Smart Codec	H.264: Yes
	H.265: Yes
Video Frame Rate	50 Hz:
	Main Stream: 2688 × 1520 @25 fps; sub stream: 704 × 576 @25 fps; third stream: 704 × 576 @25 fps
	Main Stream: 2688 × 1520 @25 fps; sub stream: 704 × 576 @25 fps; third stream: 1920 × 1080 @11 fps
	60 Hz:
	Main Stream: 2688 × 1520 @30 fps; sub stream: 704 × 480 @30 fps; third stream: 704 × 480 @12 fps
	Main Stream: 2688 × 1520 @30 fps; sub stream: 704 × 480 @30 fps; third stream: 1920 × 1080 @1 fps
Stream Capability	3 streams
Resolution	2688 × 1520; 2560 × 1440; 2304 × 1296; 2016 × 1512; 1080p (1920 × 1080); UXGA(1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF(352 × 288/352 × 240)
Bit Rate Control	CBR; VBR
Video Bit Rate	H.264: 32 Kbps–8192 Kbps
	H.265: 19 Kbps–8192 Kbps
Day/Night	ICR switch
BLC	Yes
WDR	140 dB
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Manual/Auto
Noise Reduction	3D DNR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest(RoI)	Yes (4 areas)
Electronic Image Stabilization(EIS)	Yes
Smart IR	Yes (Adjust by user)
Defog	Yes
Image Rotation	°/90°/180°/270°
Mirror	Yes
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; G726; AAC
Network
Network	RJ-45 (10/100 Base-T)
Protocol	HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP
Interoperability	ONVIF (Profile S/Profile G); CGI; Milstone; Genetec; P2P
Scene self-adaptation	Yes
User/Host	20 (Total bandwidth: 80 M.)
Edge Storage	FTP; NAS; Micro SD card (support max. 256 G)
Browser	IE: Versions later than IE 8
	Google
	Firefox
	Apple: versions later than Safari 12
Management Software	Smart PSS; DSS; P2P
Mobile Phone	IOS, Android
Certification
Certifications	CE-LVD: EN60950-1
	CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
	CE-RED: Radio Equipment Directive 2014/53/EU
	FCC: 47 CFR FCC Part 15, Subpart B
	FCC ID: FCC PART 15C
Port
RS-485	1 (Baud rate range: 1200 bps–115200 bps)
Audio Input	1 channel (Terminal)
Audio Output	1 channel (Terminal)
Alarm Input	1 channel in: 5mA 3V–5V DC
Alarm Output	1 channel out: 300mA 12V DC
Power
Power Supply	12V DC/PoE
Power Consumption	Basic power consumption: 3W (12V DC); 3.6W (PoE)
	Max. power consumption (ICR + IR full intensity): 9.5W (12V DC); 11.5W (PoE)
Environment
Operating Temperature	-30°C to +60°C (-22°F to +140°F)
Operating Humidity	≤95%
Storage Temperature	-30°C to +60°C (-22°F to +140°F)
Ingress Protection	IP67; IK10+50J
Structure
Casing	Metal
Dimensions	209.4 mm × 212.0 mm × 103.1 mm
	(8.2" × 8.3" × 4.1") (L × W × H)
Net Weight	1365 g (3.0 lb)
Gross Weight	1465 g (3.2 lb)
