Açıklama

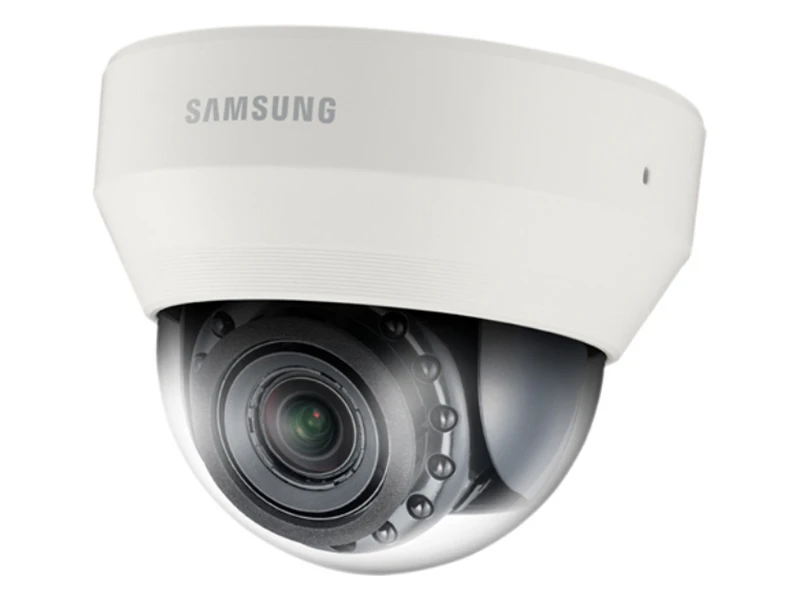

Samsung SND 7084RP IP HD Dome Kamera

Özellikler

30fps @ 2,048 x 1,536 / 60fps @ 1,920 x 1,080
Simple focus (Motorized VF)
Day&Night (ICR), Enhanced DIS, Defog
3M real-time WDR (Max. 120dB)
Color : 0.1Lux (F1.2, 50IRE); B/W : 0Lux (IR LED on)
Built-in SD/SDHC/SDXC memory slot
Multi-crop streaming
Built-in mic.
IK08

Teknik Özellikler

VIDEO

Imaging Device : 1/2.8" 3.2M CMOS

Total Pixels : 2,065(H) x 1,565(V )

Effective Pixels : 2,065(H) x 1,553(V )

Scanning System : Progressive

Min. Illumination Color : 0.1Lux (F1.2, 50IRE), 0.06Lux (F1.2, 30IRE), 0.0017Lux (2sec, F1.2, 30IRE),B/W : 0Lux (F1.2, 50IRE), 0Lux (F1.2, 30IRE), 0Lux (2sec, F1.2, 50IRE)

S / N Ratio : 50dB

Video output : CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation,DIP connector type

LENS

Focal Length (Zoom Ratio) : 3 ~ 8.5mm (2.8x) motorized varifocal

Max. Aperture Ratio : F1.2

Angular Field of View : H : 100.12°(Wide) ~ 35.38°(Tele) / V : 73.76°(Wide) ~ 26.58°(Tele)

Min. object Distance : 0.5m (1.64ft)

Focus Control : Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)

Lens Type / Mount Type : DC auto iris, P-Iris / Board-in type

PAN / TILT / ROTATE

Pan / Tilt / Rotate Range : 0° ~ 354° / 0° ~ 67° / 0° ~ 355°

OPERATIONAL

IR LED : 12ea

Viewable Length : 25m (82.02ft)

Camera Title : Off / On (Displayed up to 45 characters)

Day & Night : Auto (ICR) / Color / B/W / External / Schedule

Backlight Compensation : Off / BLC / WDR

Wide Dynamic Range : 120dB

Contrast Enhancement : SSDR (Off / On)

Digital Noise Reduction : SSNR III (2D+3D noise filter) (Off / On)

Digital Image Stabilization : Off / On

Defog : Off / Auto / Manual

Motion Detection : Off / On (4 zones with 4-sided polygon)

Privacy Masking : Off / On (32 zones with 4-sided polygon)

Gain Control : Off / Low / Middle / High

White Balance : ATW / AWC / Manual / Indoor / Outdoor

Electronic Shutter Speed : Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec)

Flip / Mirror : Off / On

Intelligent Video Analytics : Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection with metadata

Alarm I/O : Input 1ea / Output 1ea

Alarm Triggers : Motion detection, Tampering, Audio detection, Face detection, Network disconnection, Video analytics, Alarm input

Alarm Events : File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at Event, External output

NETWORK

Ethernet : RJ-45 (10/100BASE-T )

Video Compression Format : H.264 (MPEG-4 part 10/AVC), MJPEG

Resolution : 2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,

1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180

Max. Framerate : H.264 : Max. 30fps @ 2048 x 1536, 1600 x 1200, Max 60fps @ the other resolutions

MJPEG : Max. 10fps @ 2048 x 1536 ,Max. 15fps @ 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, Max. 30fps @ 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180

Smart Codec : Manual mode (Area-based : 5ea), Face detection mode

Video Quality Adjustment : H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control

Bitrate Control Method : H.264 : CBR or VBR, MJPEG : VBR

Streaming Capability : Multiple streaming (Up to 10 profiles)

Audio In : Selectable (Mic in / Line in / Built-in mic), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm

Audio out : Line out (3.5mm mono jack), Max output level : 1 Vrms

Audio Compression Format : G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz,G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps

Audio Communication : Bi-directional audio

IP : IPv4, IPv6

Protocol : TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,

SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour

Security : HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication

Streaming Method : Unicast / Multicast

Max. User Access : 15 users at unicast mode

Edge Storage : micro SD/SDHC/SDXC - Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded, NAS (Network Attached Storage)

Application Programming Interface : ONVIF profile S, HTTP API (SUNAPI) 2.0, SVNP 1.2

Webpage Language : English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,

Croatian, Hungarian, Greek, Norwegian, Finnish

Web Viewer : Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7

Supported Browser : Microsoft Internet Explorer (Ver. 11 ~ 8), Mozilla Firefox (Ver. 19 ~ 9) * Windows only , Google Chrome (Ver. 25 ~ 15) * Windows only, Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only

Central Management Software : SmartViewer, SSM

ENVIRONMENTAL

Operating Temperature / Humidity : -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH

Storage Temperature / Humidity : -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

ELECTRICAL

Input Voltage / Current : 12V DC, PoE (IEEE802.3af, Class3)

Power Consumption : Max. 10W (12V DC), Max. 11W (PoE)

MECHANICAL

Color / Material : Ivory / Aluminum

Dimensions (WxH) : Ø132.1 x 107.6mm (Ø5.2" x 4.24")

Weight : 575g (1.27 lb)
