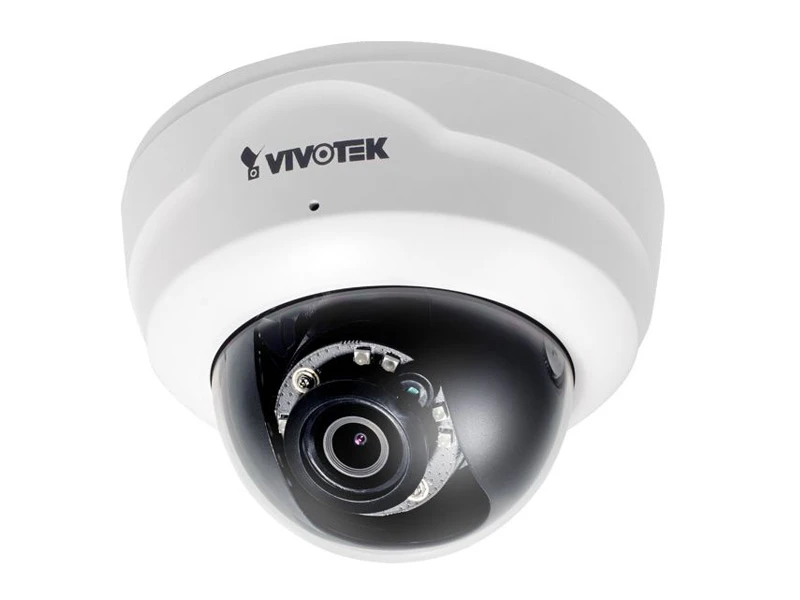

Vivotek FD8171 IP HD Dome Kamera

Özellikler

3-Megapixel CMOS Sensor
30 fps @ 2048x1536
Motorized, P-iris Lens & DC-iris
Removable IR-cut Filter for Day & Night Function
Built-in IR Illuminators, Effective up to 20 Meters
Smart IR Technology to Avoid Overexposure
Smart Stream to Optimize Bandwidth Efficiency
3D Noise Reduction for Low-light Conditions
Real-time H.264, MPEG-4, and MJPEG Compression
WDR Enhanced for Unparalleled Visibility in Extremely Bright or Dark Environments
Smart Focus System for Remote and Precise Focus Adjustment
Two-way Audio
Built-in 802.3af Compliant PoE
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage

Teknik Özellikler

System Information
CPU	Multimedia SoC (System-on-Chip)
Flash	256 MB
RAM	512 MB
Camera Features
Image sensor	1/2.8" Progressive CMOS
Maximum Resolution	2048x1536 (3MP)
Lens Type	Vari-focal, remote focus
Focal Length	f = 3 ~ 10 mm
Aperture	F1.3 ~ F2.5
Field of View	31° ~ 91° (horizontal)
	24° ~ 68° (vertical)
	39° ~ 117° (diagonal)
Shutter Time	1/5 sec. to 1/8,000 sec.
WDR Technology	WDR Enhanced
Day & Night	Removable IR-cut filter for day & night function
Day & Night	Smart IR Technology to Avoid Overexposure
Minimum Illumination	0.33 Lux @ F1.3, 50 IRE (Color @1/30 sec)
	0.05 Lux @ F1.3, 50 IRE (Color@1/5 sec)
	0.001 Lux @ F1.3 50 IRE (B/W)
Pan / Tilt / Zoom	ePTZ
Pan / Tilt / Zoom	48x digital zoom ( 4x on IE plug-in, 12x built-in )
IR Illuminators	Built-in IR illuminators, effective up to 20 meters
IR Illuminators	IR LED*15, with Smart IR Technology
On-board Storage	MicroSD/SDHC/SDXC card slot
Video
Compression	H.264, MJPEG
Maximum Frame Rate	H.264:
	30 fps at 2048x1536
	60 fps at 1920x1080
	MJPEG:
	30 fps at 2048x1536
	60 fps at 1920x1080
Maximum Streams	4 simultaneous streams
S/N Ratio	58 dB
Dynamic Range	60 dB
Video Streaming	Adjustable resolution, quality and bit rate
Image Settings	Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction, smart stream, seamless recording, video rotation, audio detection
Audio
Audio Capability	Audio input/output (full duplex)
Compression	GSM-AMR, AAC, G.711
Interface	Built-in microphone
Interface	Audio output
Network
Users	Live viewing for up to 10 clients
Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Interface	10Base-T / 100BaseTX Ethernet (RJ-45)
Interface	* It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
ONVIF	Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection	Triple-window video motion detection
Alarm and Event
Alarm Triggers	Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection ,audio detection
Alarm Events	Event notification using digital output, HTTP, SMTP, FTP and NAS server
Alarm Events	File upload via HTTP, SMTP, FTP and NAS server
General
Smart Focus System	Remote focal & focus control
Connectors	RJ-45 for Network / PoE connection
	Audio input/output
	AC 24V / DC 12V power input
	Digital input*1
	Digital output*1
	Analog video output
LED Indicator	System power and status indicator
Power input	24V AC
	12V DC
	IEEE 802.3af PoE Class 3
Power consumption	Max. 10.92W (DC 12V)
	Max. 12.25W (AC 24V)
	Max. 12.95W (PoE)
Dimensions	Ø: 157 mm x 109 mm
Weight	Net: 758 g
Safety Certifications	CE, C-Tick, FCC ( Class B ), LVD, KCC, UL, VCCI
Operating Temperature	Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)
	Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
Warranty	24 Months
System Requirements
Operating System	Microsoft Windows 7 / Vista / XP / 2000
Browser	Mozilla Firefox 7~10 ( Streaming only )
Browser	Internet Explorer 7 / 8 / 9 / 10
Other Players	VLC: 1.1.11 or above
Other Players	QuickTime: 7 or above
