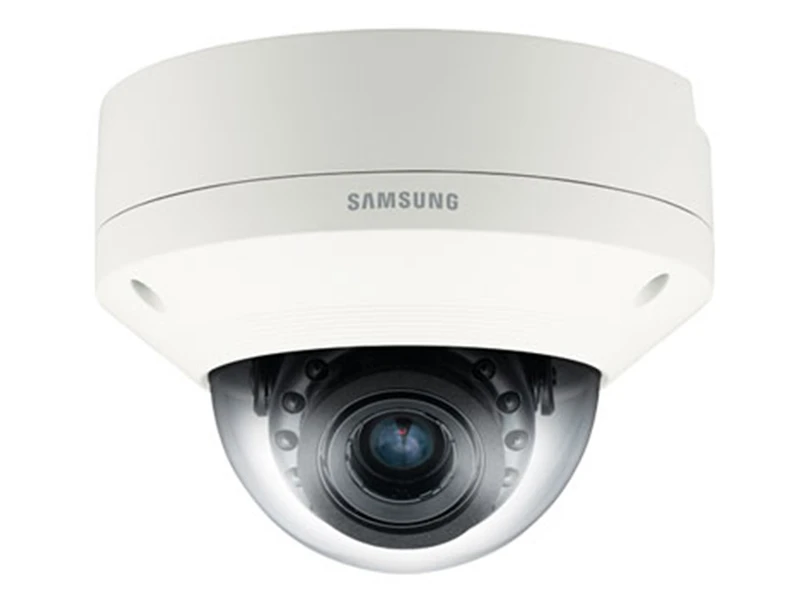

Samsung SNV 6085 IP HD Dome Kamera
Özellikler
- Max. 2M (1920 x 1080) resolution
- 0.09Lux @ F1.6 (Color), 0Lux @ F1.6 (B/W : IR LED on)
- 10 ~ 23mm (2.3x) motorized varifocal lens
- H.264, MJPEG dual codec, Multiple streaming
- WDR (120dB), Simple focus (Motorized V/F), P-Iris, Defog
- Audio / Face / Motion detection
- micro SD/SDHC/SDXC memory slot
- Multi-crop streaming, PoE
- IP66, IK10, Bi-directional audio support
Teknik Özellikler
| Video Input |
| Audio Support : Yes |
| Audio Support Features : Two-way audio capability |
| Camera Mechanical Design : Fixed dome |
| Camera Type : Network surveillance camera |
| Color or B&W : Color |
| Connectivity Technology : Wired |
| Day & Night Functionality : Yes |
Digital Video Capture Resolution : 1024 x 768 , 1280 x 1024 , 1280 x 720 , 1280 x 960 , 1920 x 1080 , 320 x 180 ,
320 x 240 , 640 x 360 , 640 x 480 , 800 x 450 , 800 x 600 |
| Digital Video Format : H.264 , MJPEG |
Features : Adjustable gain control , Audio Detection , Automatic Tracing White (ATW) , Backlight compensation ,
Constant Bitrate (CBR) , Defog , Digital Image Stabilization (DIS) , Edge Storage , Face detection , Heater , Image flip ,
Image mirror , Motion Detection Technology , Multi-streaming , Multicast Streaming , NAS-Ready , Notification picture
to E-mail , Notification picture to FTP , ONVIF support , Privacy Mask Function , Progressive scanning , Samsung
Super Dynamic Range (SSDR) , Samsung Super Noise Reduction (SSNRIII) , Smart Codec , Tamper-detection ,
Variable Bitrate (VBR) , White balance , Wide Dynamic Range (WDR) , WiseNet III |
| Frame Rate : 60 frames per second |
| Max Digital Video Resolution : 1920 x 1080 |
| Optical Zoom : 2.3 |
| Panning Range (degree) : 0 to 354 |
| Supported Video Signals : Composite video |
| Tilting Range (degree) : 0 to 67 |
| Video Format : NTSC |
| Optical Sensor |
| Optical Sensor Type : CMOS |
| Sensor Pixels Effective (H) : 1944 |
| Sensor Pixels Effective (V) : 1104 |
| Sensor Pixels Total (H) : 1952 |
| Sensor Pixels Total (V) : 1116 |
| Sensor Size : 1/2.8" |
| Sensor Size (metric) : 9.1 mm ( 1/2.8" ) |
| Total Pixels : 2,380,000 pixels |
| Networking |
| Network Interface : Ethernet 10Base-T/100Base-TX |
| System Requirements |
Min Operating System : Apple MacOS X 10.7 - 10.10 , Microsoft Windows 7 , Microsoft Windows Vista ,
Microsoft Windows XP , Windows 8 , Windows 8.1 |
| Environmental Parameters |
| Humidity Range Operating : 0 - 90% |
| Max Operating Temperature : 131 °F |
| Min Operating Temperature : -40 °F |
| Header |
| Brand : Samsung |
| Compatibility : Mac , PC |
| Manufacturer : Samsung CCTV |
| Model : SNV-6085RN |
| Packaged Quantity : 1 |
| Product Line : Samsung Techwin |
| Lens System |
| Angular Field of View (H, max, degree) : 21.3 |
| Angular Field of View (H, min, degree) : 13.9 |
| Angular Field of View (V, max, degree) : 17.1 |
| Angular Field of View (V, min, degree) : 7.8 |
| Auto Iris Control : P-Iris |
| Focal Length Control : Motorized zoom |
| Focus Adjustment : Manual , Motorized |
| Lens Aperture : F/1.6 |
| Lens Mount : Board mount |
| Max Focal Length : 23 mm |
| Min Focal Length : 10 mm |
| Min Focus Distance : 31.5 in |
| Miscellaneous |
| Color : Ivory |
| Color Category : White |
| Compliant Standards : cULus , FCC , IK10 , IP66 |
| Power Device |
| Power Consumption Operational : 12.95 Watt |
| Service |
| Support Details Full Contract Period : 3 years |
| Support Details Service Included : Parts and labor |
| Support Details Type : Limited warranty |
| Software |
| Type : Smart Viewer |
| Video Capture |
| Frame Rate : 60 fps |
| Image Resolution : 1920 x 1080 |
| Digital Camera |
| Supported Flash Memory : microSD Card , microSDHC Card , microSDXC Card |
| Dimensions & Weight |
| Depth : 6.3 in |
| Height : 4.7 in |
| Weight : 34.21 oz |
| Width : 6.3 in |
| CCTV |
| Equipment Category : CCTV cameras |
| CCTV Camera |
| Alarm Inputs Qty : 1 |
| Alarm Outputs Qty : 1 |
| Infrared Distance : 66 ft |
| Infrared LEDs : 14 |
| Outdoor : Yes |
| Protection : Vandal-proof |
| CCTV Camera Sensitivity |
| F-number : F1.6 |
| IRE : 50 |
| Minimum Illumination (lux) : 0.25 |
| Mode : Color |
| IRE : 30 |
| Minimum Illumination (lux) : 0.09 |
| Gain Control : Infrared LEDs on |
| Minimum Illumination (lux) : 0 |
| Mode : B&W |
| Interfaces |
| Connector : RJ-45 |
| Type : LAN/power |
| Type : Audio line-in/microphone |
| Connector : 3.5 mm stereo jack |
| Type : Audio line out |
| Power |
| Low Voltage Power : DC 12 V / AC 24 V / PoE |
| Service & Support |
| Type : 3 years warranty |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
Ses : Var
Irled : Var
